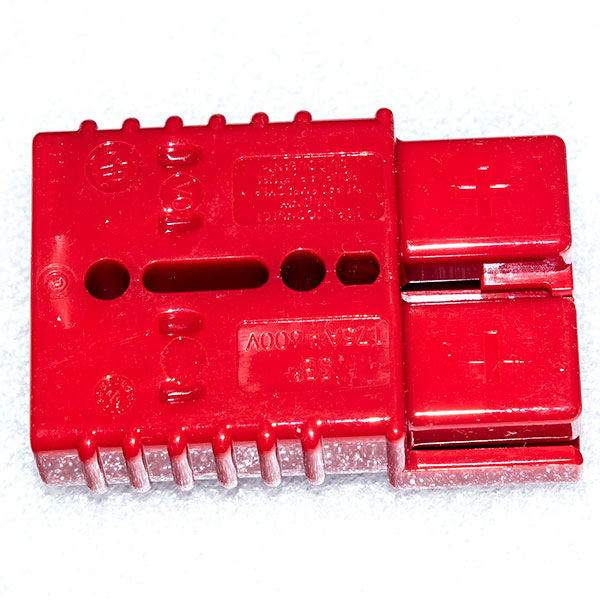

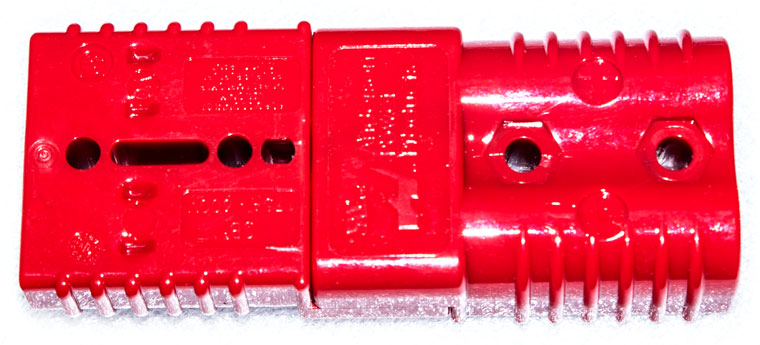

175A DC Power Connectors

Silver plated wire contacts up to 1/0 (53.4 mm²)

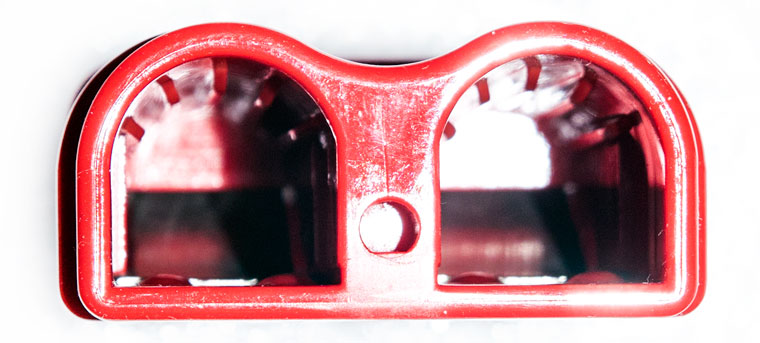

With red color housing (part number 949-BK)

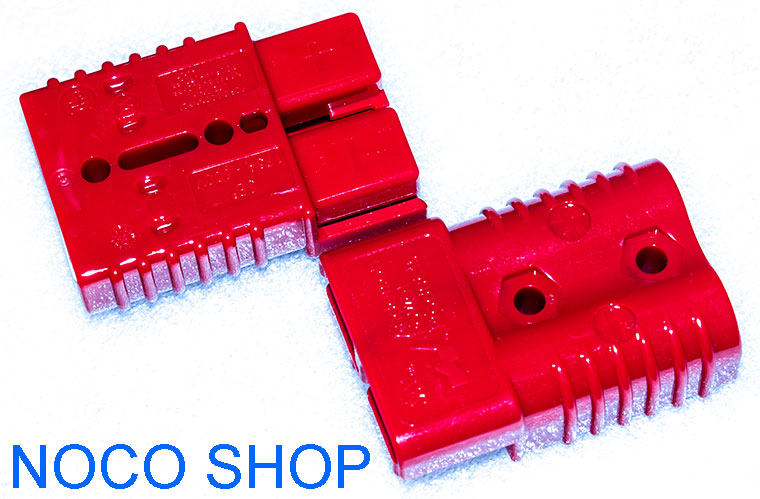

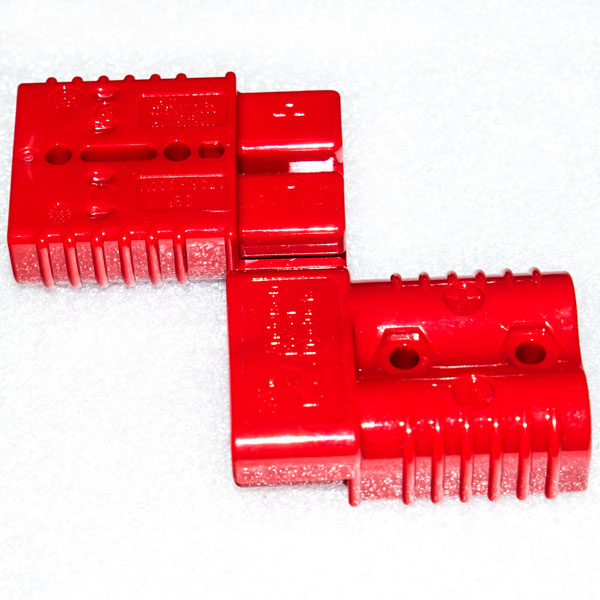

A two-pole SB®175 DC power connector has a solid housing with springs and two silver plated contacts, widely applied in varialbe DC power wiring applications like battery powered vehicle, solar power sytem and remote communication unit, etc.

Specifications:

• DC power connector kit rated at 175A, 600 VDC
• Impact resistant polycarbonate housing offers high physical strength and superior dielectric properties

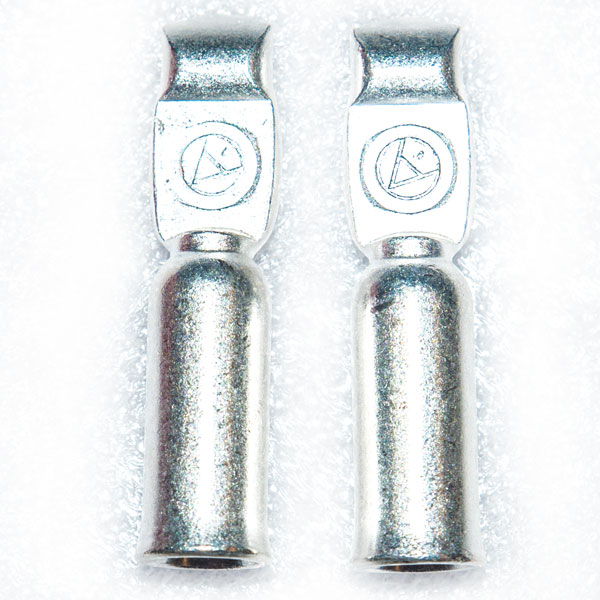

• Silver-plated solid copper contacts offer low resistance for superior conductivity
• Self cleaning contact design resists arcing by keeping conductive surfaces clean and free of corrosion
• Contacts have flared and heat treated barrels which readily accept fine stranded wire
• Integral stainless steel springs maintain constant pressure on the contact to insure a consistent, low-resistance connection

KEY FEATURES

• Brand: APP (Anderson Power Products)

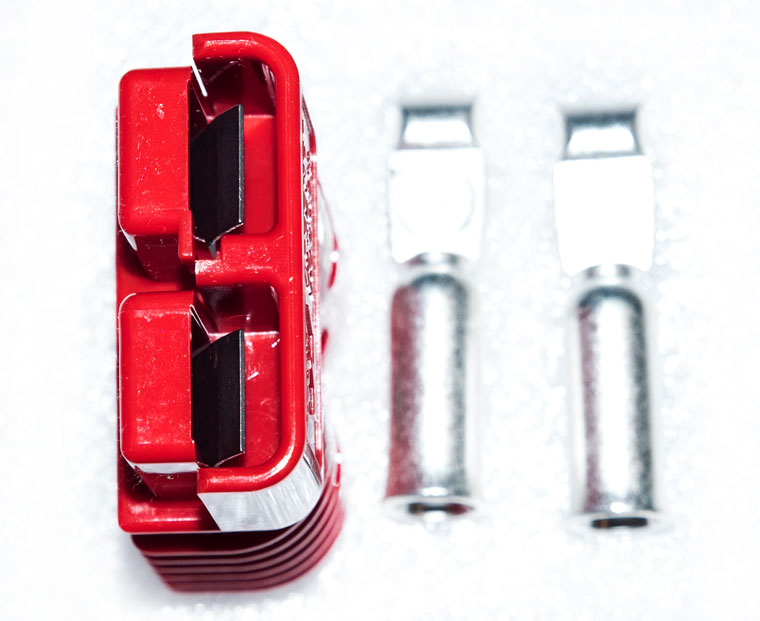

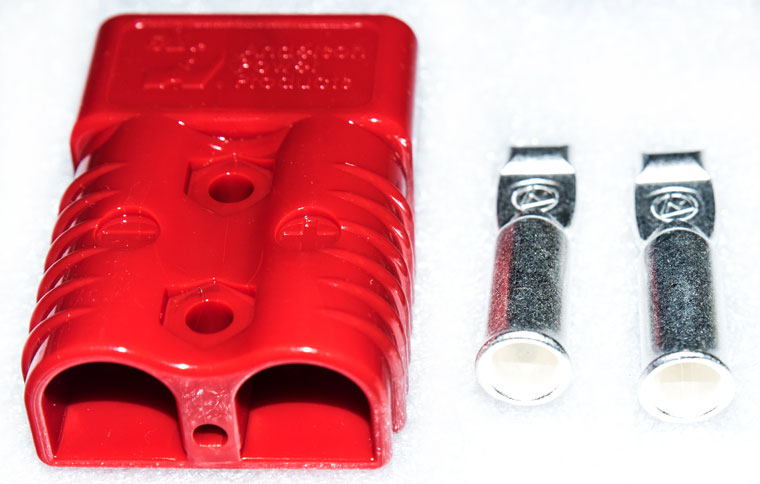

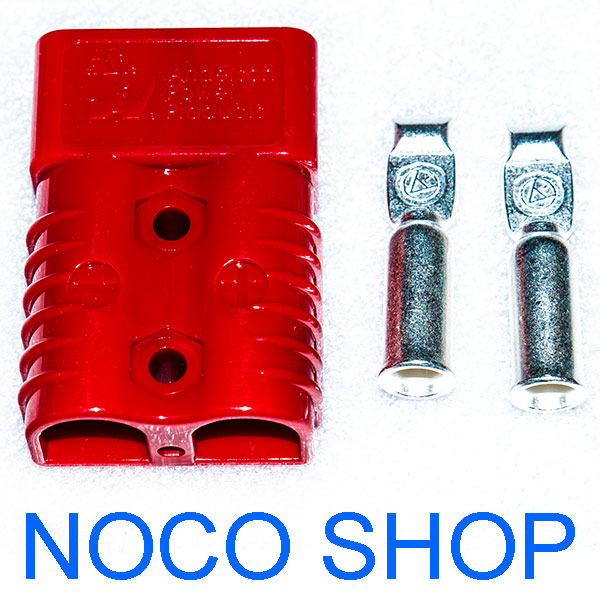

• Model: SB175, each connector assemblage includes one housing and two tips (contacts)
• Housing color: red (part number 949-BK)
• Net weight: 0.12 kg (0.25 lbs.)
• Current rating (ampers): 175A on 4 AWG wire produces 30°C rise
• Voltage limit (volts): 600
• Insulation with standing test voltage (volts): 2200V DC
• Operating temperature range: -20°C to 105°C
• Maximum wire insulation diameter: 19.01 mm (0.75")

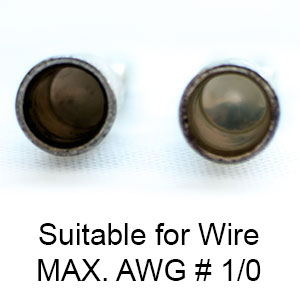

• Contact barrel wire size: (AWG) #4 to 1/0; (mm²) 20 to 50
• Average contact retention force: approximately 300 lbs (136 kg)
• Average contact resistance: 100 µΩ with 1-1/4" (32 mm)
• Vibration resistance: excellent
• Mating cycles: 10,000 times, for disconnect use only
• Environmental restrictions: protected - no hydrocarbon fluids
• Flammability rating: UL94 V-0
• Average mating and unmating force: 25 lbs (11.34 kg)

1 / 4

2 / 4

3 / 4

4 / 4

Data Sheet (PDF format)

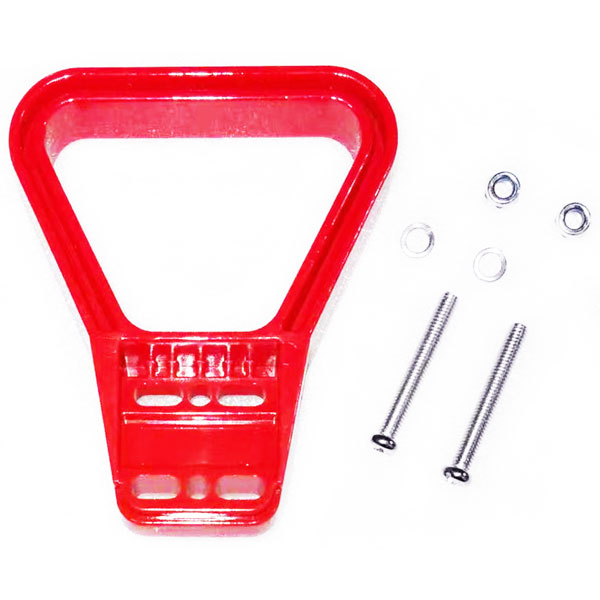

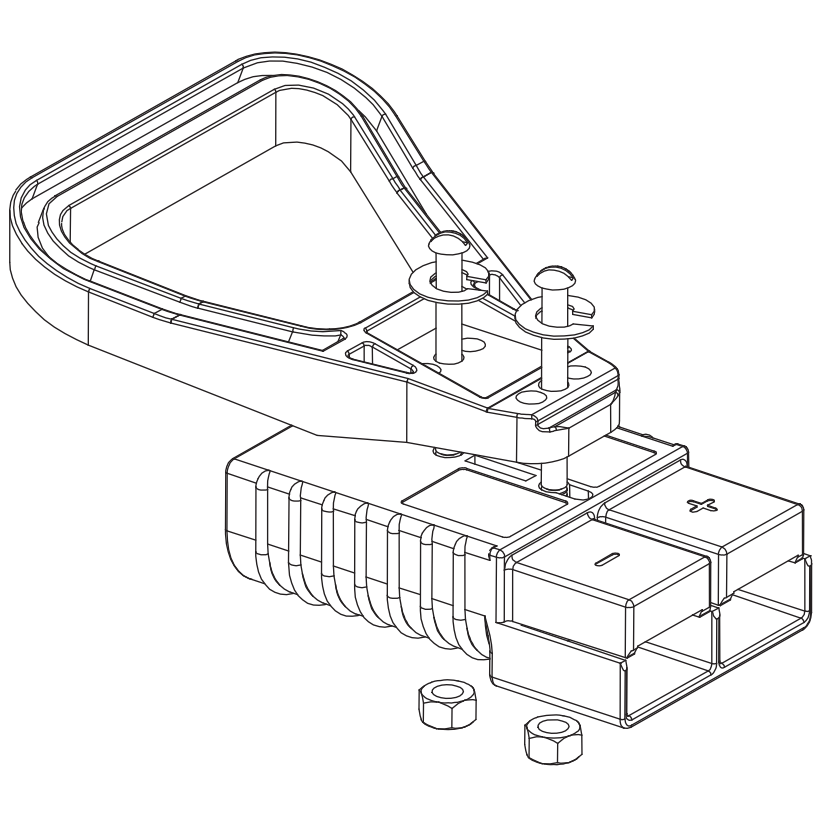

Buy puller handle (not sell as individual part, only available for shipping with your order of connectors):
