The fuse holder and tool can only be sold with an order of fuse(s).

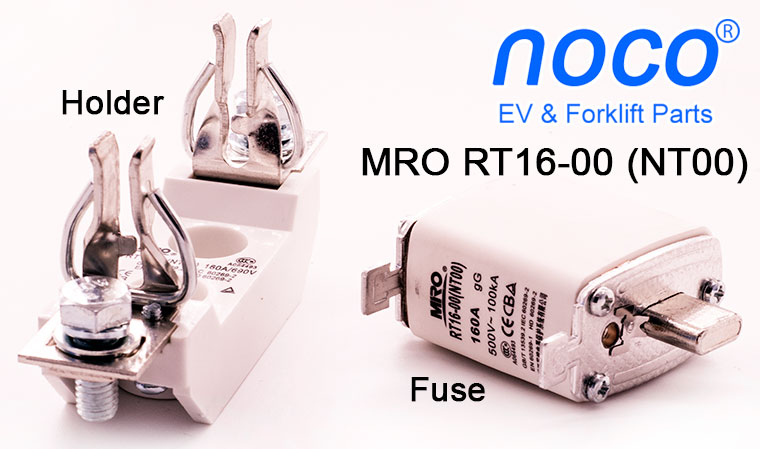

Square Pipe Fuse, Model: RT16-00 (NT00)

Type: gG, protection aqainst overload and short-circuit in electric lines

RT16-00 (also known as NT00) square pipe fuse is widely used in multiple industrial sections. Frequently, RT16-00 (NT00) fuses are used as protection aqainst overload and short-circuit in electric circuits (type gG). But they can also be used as protection against short-circuit in semiconductor parts / equipments (type aR) or protection of motors (type aM).

Composed by variable cross-section fuse elements which are made from pure copper or silver, RT16-00 (NT00) fuses are sealed in high electric / heat resistant ceramic cartridge. The fuse tube of RT16-00 (NT00) is filled with chemically treated high-purity quartz sand as arc-extinguishing medium. The dot-welded fuse component to the silver plated contacts ensures a reliable electric passage in any application.

An indicator or striker may be installed closely to the fuse in the circuit, for monitoring the real-time working current / sending various signals to control unit, or to break the circuit automatically.

Features:

• Model: RT16-00 (NT00)
• Rated voltage: 500V / 690V
• Rated breaking capacity: 100kA
• Rated current: 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A
• Compliant with GB13539, IEC60269 and EN60269
• Net weight: 175 grams

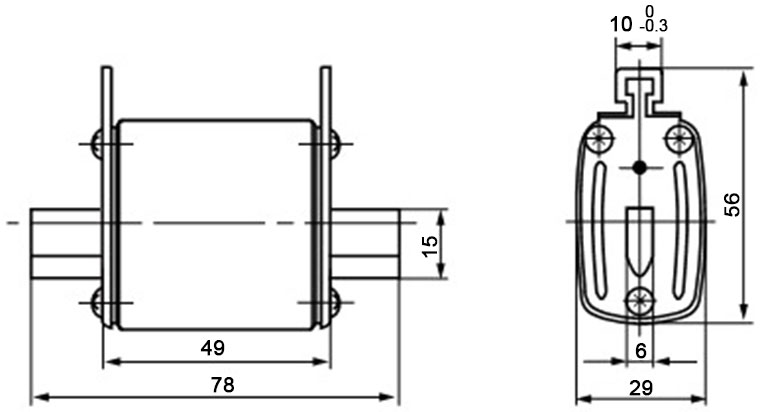

Fuse sizes (unit: mm):

It is important to apply a fuse holder for mating with the fuse. The RT16-00 (NT00) fuse holder is composed with high-density ceramic (base), heat-resistant resin layer and reinforced wedge-shaped contacts, featured with good heat sinking, high mechanic holding strength, reliable connection and simple operation.

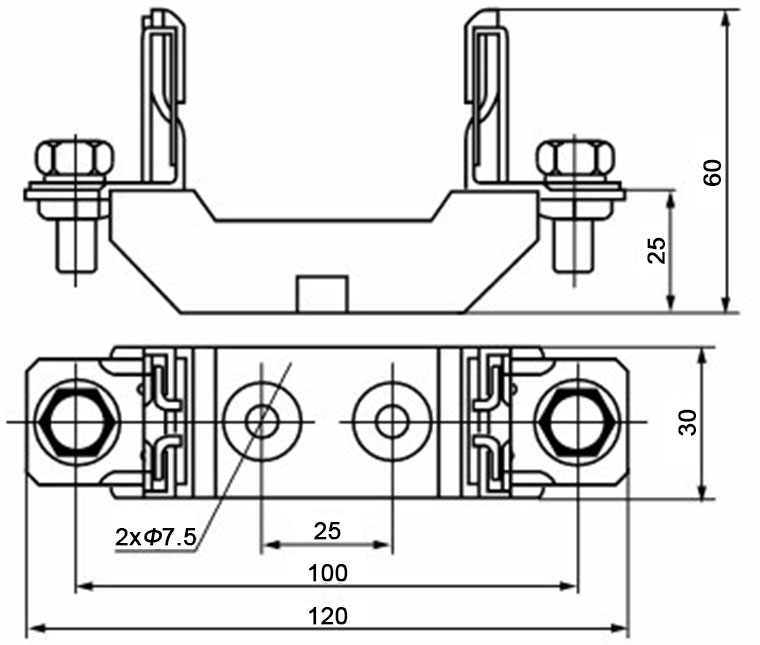

Fuse holder dimensions (unit: mm):

Tool:

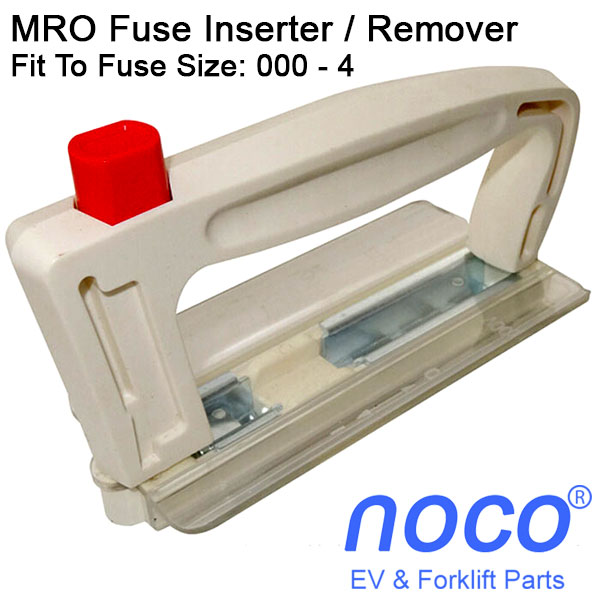

The fuse inserter / remover is an useful tool. It helps to push the fuse into position when install the fuse. It can also used as a fuse puller when you need to change the fuse with a new one. Made with insulating material, the fuse carrier offers high safety of operation, and fits to full range from NT000 to NT4 blade contact type fuses.

The fuse holder and tool can only be sold with an order of fuse(s).
