Specifications:

• Input voltage (volt): 24-80V DC, wide working voltage range
• Signal output: 0-5V
• Maximum throttle output: 5.0V
• Minimum throttle output: 0V
• Link pod or pedal installation (not included, please chech your vehicle's installation; if you need a new link pod or foot pedal, please contact us.)
• Solid ZAMAC alloy case, ingress protection: IP55
• Installation kit is included: bolts, nuts and washes
• Mating connector is included
• Net weight: 1.06 kg (with installation kit and mating connector)

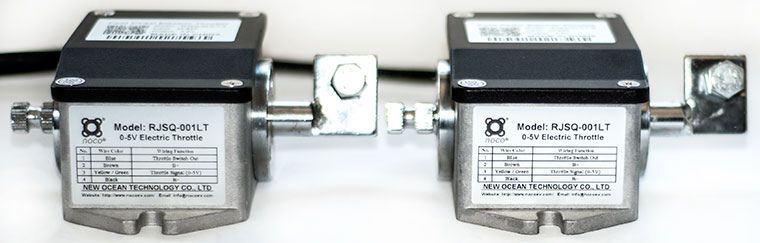

This RJSQ-001-LT is an OEM throttle model for LVTONG golf carts and mobility vehicles.

The RJSQ-001-LT electric throttle provides an analog 0-5V output which is proportional to throttle position. Used in electric vehicle motor driving system, the 0-5V throttle output is fed to a motor speed controller as the motor speed regulating signal. The motor controller will amplify or reduce the working current of motor by analysing the throttle's output.

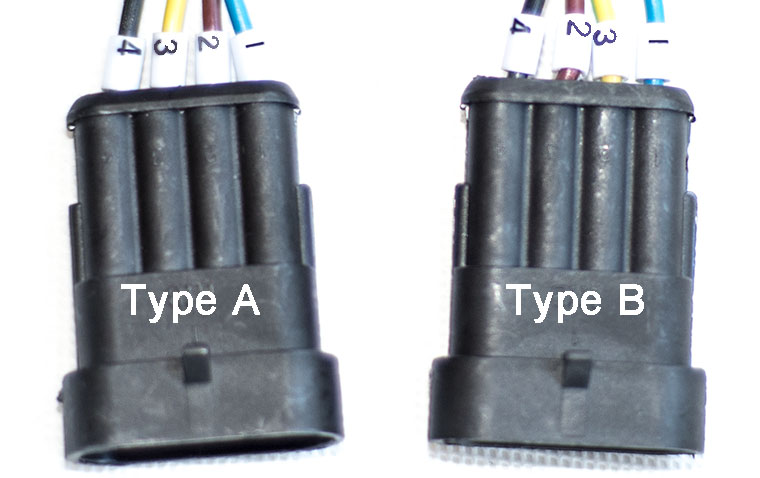

For some reason, LVTONG has applied some different wiring methodes to the throttle connector. If you want to define a different wiring method, please contact us.

The connector of throttle RJSQ-001-LT is waterproof AMP type 4-Pin connector. A mating connector will be included in the package of throttle. A installation kit (bolts, washers, nuts) will also be provided.

Specifications:

• Input voltage (volt): 24-80V DC, wide working voltage range
• Signal output: 0-5V
• Maximum throttle output: 5.0V
• Minimum throttle output: 0V
• Link pod or pedal installation (not included, please chech your vehicle's installation; if you need a new link pod or foot pedal, please contact us.)
• Solid ZAMAC alloy case, ingress protection: IP55
• Installation kit is included: bolts, nuts and washes
• Mating connector is included
• Net weight: 1.06 kg (with installation kit and mating connector)

This RJSQ-001-LT is an OEM throttle model for LVTONG golf carts and mobility vehicles.

The RJSQ-001-LT electric throttle provides an analog 0-5V output which is proportional to throttle position. Used in electric vehicle motor driving system, the 0-5V throttle output is fed to a motor speed controller as the motor speed regulating signal. The motor controller will amplify or reduce the working current of motor by analysing the throttle's output.

For some reason, LVTONG has applied some different wiring methodes to the throttle connector. If you want to define a different wiring method, please contact us.

The connector of throttle RJSQ-001-LT is waterproof AMP type 4-Pin connector. A mating connector will be included in the package of throttle. A installation kit (bolts, washers, nuts) will also be provided.
