RC4812 Non-Isolated DC/DC Converter
Input Voltage: 48V - Output Voltage: 12V
60W / 96W / 120W / 240W / 300W / 360W
9.99 - 38.99 USD
Power Rate Option
Secured Payment of PayPal, VISA, MASTERCARD
Free Shipping On Order $99.99
12-Month warranty

Due to the low cost of RC4812 DC-DC converter, we don't offer free international expedited delivery service for a single converter. Please use the "ADD TO CART" button, and checkout together with your other purchases. When the total order amount is over 99.99 USD, all products in the order are automatically qualified for free international shipping.

For more information, please see our delivery terms.

Specifications:

  • Input voltage: 48V (36-60V) DC
  • Output voltage: 12V DC
  • Max output current: 5-60A
  • Electrical isolation to heatsink (min.): 500 VAC
  • Self-protections available:
    • DC power poles reverse connection protected
    • Over-current protection
    • Shortcut protection
    • Over-voltage & low-voltage protection
    • Overheat protection
  • Operating ambient temperature range: -40°C to 50°C
  • Storage ambient temperature range: -40°C to 85°C

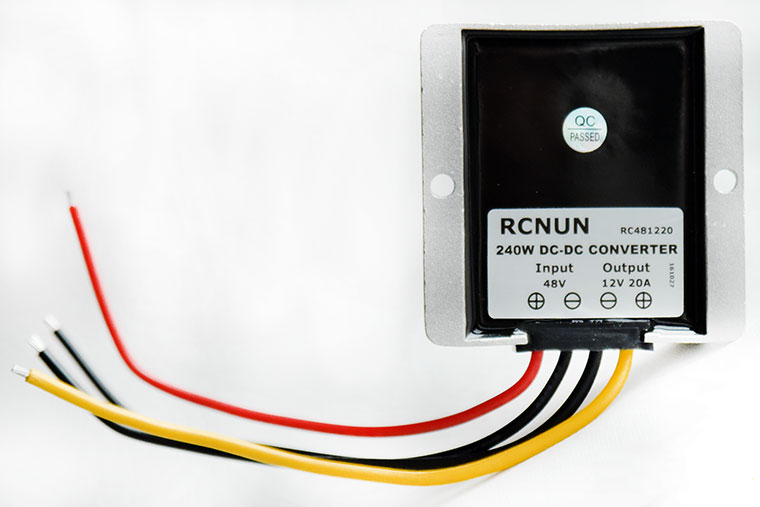

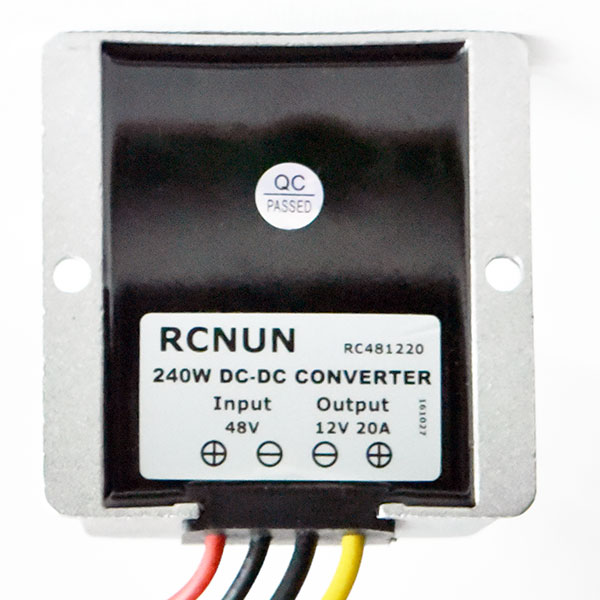

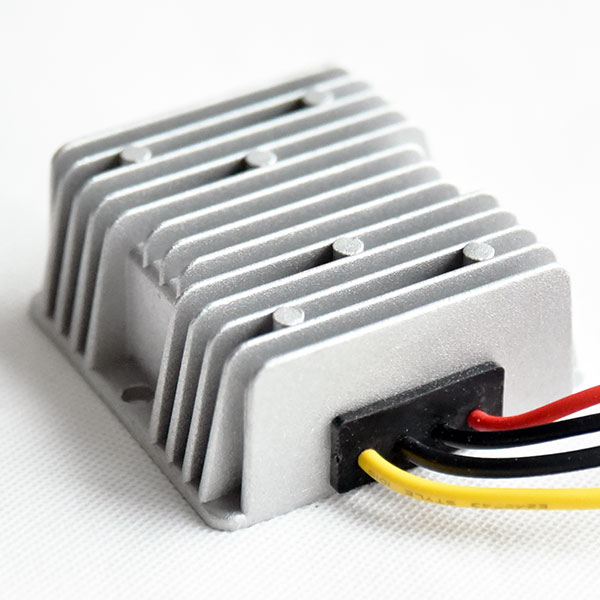

48V to 12V DC-DC Converter, model RC4812xx, non-isolated DC power source 48V to 12V DC-DC Converter, 12V Automotive or Boat DC Power Source
48V to 12V DC-DC Converter, 12V Automotive or Boat DC Power Source 48V to 12V DC-DC Converter, 12V Automotive or Boat DC Power Source
Model Power Rate Dimensions Weight
RC481205 60W 57.5 mm x 64 mm x 22 mm 120g
RC481210 120W 72 mm x 74 mm x 32 mm 300g
RC481215 180W 72 mm x 74 mm x 32 mm 300g
RC481220 240W 72 mm x 74 mm x 32 mm 300g
RC481225 300W 100 mm x 80 mm x 39 mm 460g
RC481230 360W 100 mm x 80 mm x 40 mm 510g
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
RC4812 Non-Isolated DC/DC Converter
Input Voltage: 48V - Output Voltage: 12V
60 - 360W
9.99 - 38.99 USD
Power Rate Option
Secured Payment of PayPal, VISA, MASTERCARD
Free Shipping On Order $99.99
12-Month warranty

Due to the low cost of RC4812 DC-DC converter, we don't offer free international expedited delivery service for a single converter. Please use the "ADD TO CART" button, and checkout together with your other purchases. When the total order amount is over 99.99 USD, all products in the order are automatically qualified for free international shipping.

For more information, please see our delivery terms.

Specifications:

  • Input voltage: 48V (36-60V) DC
  • Output voltage: 12V DC
  • Max output current: 5-60A
  • Electrical isolation to heatsink (min.): 500 VAC
  • Self-protections available:
    • DC power poles reverse connection protected
    • Over-current protection
    • Shortcut protection
    • Over-voltage & low-voltage protection
    • Overheat protection
  • Operating ambient temperature range: -40°C to 50°C
  • Storage ambient temperature range: -40°C to 85°C
48V to 12V DC-DC Converter, model RC4812xx, non-isolated DC power source 48V to 12V DC-DC Converter, 12V Automotive or Boat DC Power Source
48V to 12V DC-DC Converter, 12V Automotive or Boat DC Power Source 48V to 12V DC-DC Converter, 12V Automotive or Boat DC Power Source
Model Power Rate Dimensions Weight
RC481205 60W 57.5 mm x 64 mm x 22 mm 120g
RC481210 120W 72 mm x 74 mm x 32 mm 300g
RC481215 180W 72 mm x 74 mm x 32 mm 300g
RC481220 240W 72 mm x 74 mm x 32 mm 300g
RC481225 300W 100 mm x 80 mm x 39 mm 460g
RC481230 360W 100 mm x 80 mm x 40 mm 510g
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
DC-DC 48V to 12V Converter
