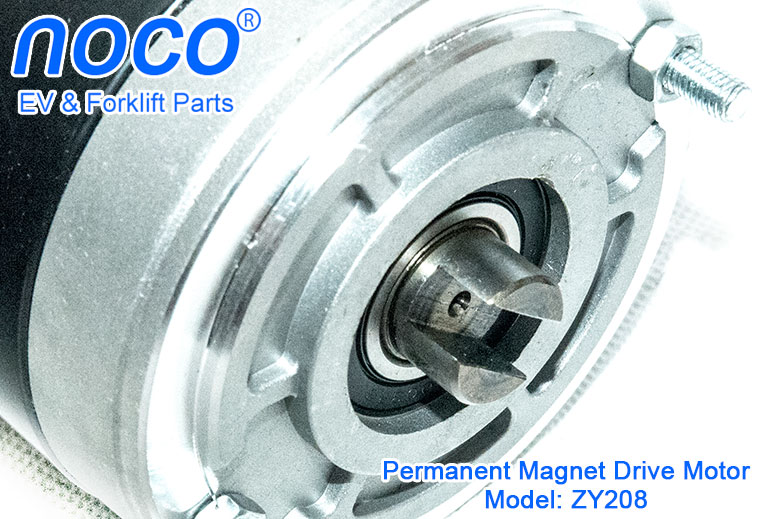

EP Forklift EPT20-20RAS / EPT20-20WA Hydraulic Pump Driving Motor

24V / 1000W Permanent Magnet Drive Motor

Overview:

Rated for 24V / 1000W, the permanent magnet drive motors ZY208 are used as hydraulic pump driving motor in electric material handling vehicles. Their compact size and high efficiency offer advantages for small size pallet stackers and platform pickers.

Typical application: EP forklift models EPT20-20RAS and EPT20-20WA

Specifications:

• Model: ZY208
• Motor type: permanent magnet drive motor
• Nominal power rate: 1000W
• Operating voltage: 24V
• Rated current: ≤ 56A
• Duty: 1 minute / 7.5% ED (ED means "Einschaltdauer" and is the same thing as "Duty Cycle". 7.5% ED of motor duty means that the motor can run ninety full load periods of 3-second during a time span of 60 minutes)
• Speed: 3650 rpm
• Rotation direction: clockwise / counter-clockwise
• Ingress protection: IP44
• Net weight: 2.8 kg (package weight: 4.6 kg)

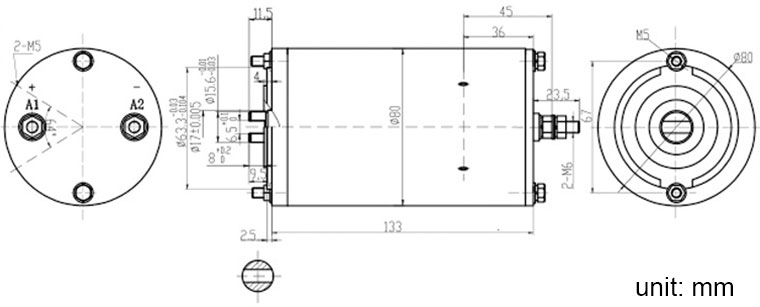

Diagram:

Overview:

Rated for 24V / 1000W, the permanent magnet drive motors ZY208 are used as hydraulic pump driving motor in electric material handling vehicles. Their compact size and high efficiency offer advantages for small size pallet stackers and platform pickers.

Typical application: EP forklift models EPT20-20RAS and EPT20-20WA

Specifications:

• Model: ZY208
• Motor type: permanent magnet drive motor
• Nominal power rate: 1000W
• Operating voltage: 24V
• Rated current: ≤ 56A
• Duty: 1 minute / 7.5% ED (ED means "Einschaltdauer" and is the same thing as "Duty Cycle". 7.5% ED of motor duty means that the motor can run ninety full load periods of 3-second during a time span of 60 minutes)
• Speed: 3650 rpm
• Rotation direction: clockwise / counter-clockwise
• Ingress protection: IP44
• Net weight: 2.8 kg (package weight: 4.6 kg)

Diagram:
