OMRON Self-Powered Count Totalizer

PNP / NPN universal DC voltage input, 7-segment LCD with backlight

Overview

The OMRON H7EC-NV-H / H7EC-NV-BH counters are subminiature total counters with improved appearance and features:

• Large display with 8.6 mm (0.338") height
• Available with backlit LCD
• PNP / NPN DC voltage input available
• Eight-digits, counting range 0 to 99999999
• Key-protect switch to prevent front resetting
• Selectable input speed: 30 Hz or 1 kHz (except for AC/DC multi-voltage input models)
• NEMA 4 / IP66 front
• Two case color options:
  • White color case: H7EC-NV-H
  • Black color case: H7EC-NV-BH
• With flush mounting bracket
  • When mounting, insert the counter into the cutout. Insert the adapter from the back and push in the counter while making the gap between the front panel and the cutout panel as small as possible. Use screws to secure the counter. If waterproofing is desired, insert the waterproof packing.
  • When several counters are installed, ensure that the ambient temperature will not exceed specifications.
  • The appropriate thickness of the panel is 1 to 5 mm.

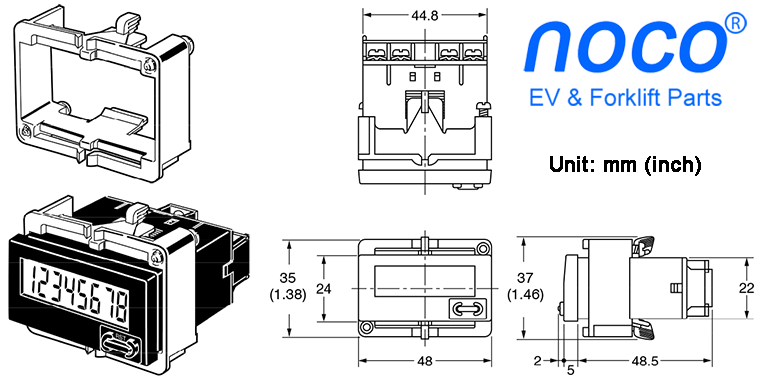

Dimensions with flush mounting bracket:
