SPDT DC Power Contactor
Model: NR200-H
200A DC Power Switching Solenoid
Lowest Unit Price 57.99 USD
1 / 4

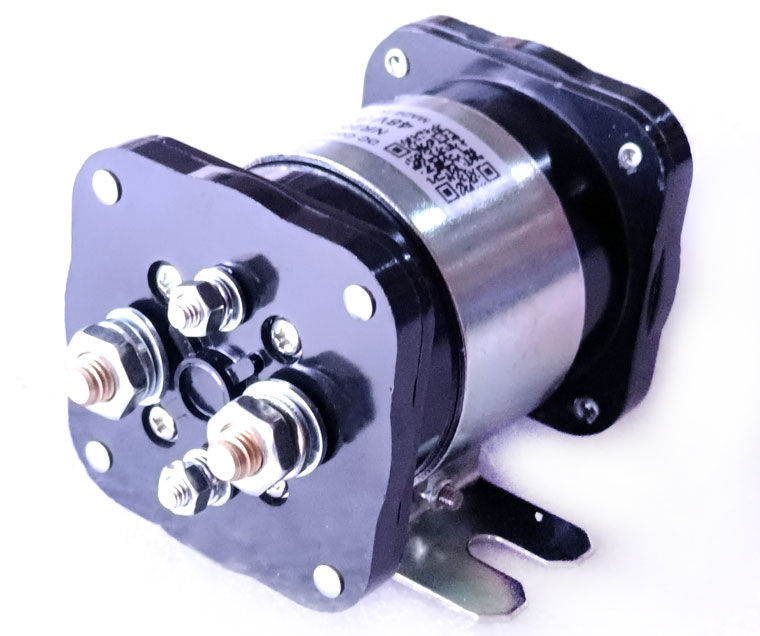

SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
2 / 4
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
3 / 4
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
4 / 4
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
Quantity Option
Voltage Option
Secured Payment of PayPal, VISA, MASTERCARD

200A SPDT DC Contactor NR200-H

Compatible with E-Z-GO 20468G5 (36VDC) / White Rodgers 586-317111

Overview

NR200-H is a SPDT type DC contactor, used in multiple battery powered or DC source powered applications, pump driver, circuit changing, direction selector, etc.

  • Model: NR200-H
  • Coil type: DC
  • Voltage Options (Volts):
    • 12V
    • 24V
    • 36V: compatible with E-Z-GO 20468G5 / White Rodgers 586-317111
    • 48V
    • 72V
  • Ambient temperature:-25~+40°C
  • Altitude range:0~2000m
  • Max.relative humidity: 90% at 25°C
  • Installation method:with bracket, vertically or horizontally
  • Dielectric (volt) strength: 50Hz 1000V AC 1min
  • Current volt drop of main contact at 100A: Not above 80mV
  • Outline dimensions (LxWxH ): 117x70x84.5 mm
  • Mechanical life: 100,000 times
  • Electric life: 20,000 times
  • Water Resistant and Case is Isolated from Bracket
Dimensions: Circuit Diagram:
NR200-H SPDT DC Contactor Dimensions NR200-H DC Contactor Circuit Diagram
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
SPDT Heavy Duty Solenoid, DC Contactor NR200-H, White Rodgers 586-317111, E-Z-GO 20468G5
