R-N-D Switch
Forward / Reverse Switch
Model: NOCO-RND-01
Lowest Unit Price 18.00 USD
1 / 4
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
2 / 4
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
3 / 4
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
4 / 4
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
Quantity Option
Secured Payment of PayPal, VISA, MASTERCARD

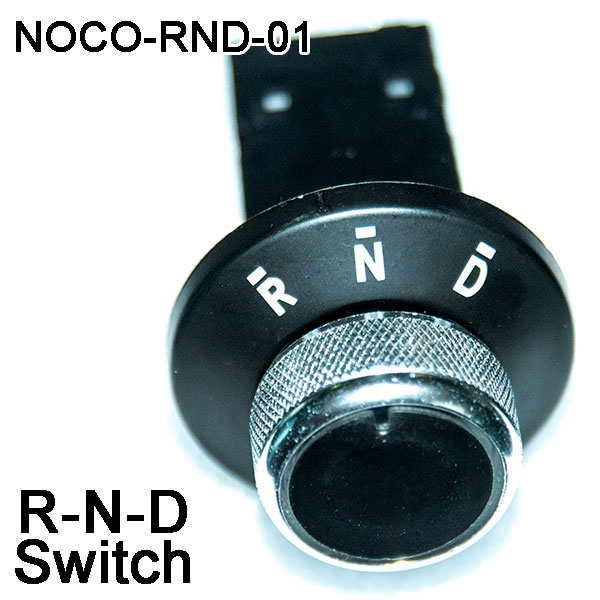

Forward / Reverse Direction Changing R-N-D Switch

3-position switch: D (drive / forward), N (neutral), R (reverse)

Lighting Effect Of Switch
The lighting effect of R-N-D switch NOCO-RND-01

Description:

NOCO-RND-01 is used as the Forward / Reverse R-N-D Switch (stalls) in electric vehicles / boats, easy to install. Typical application: golf cart direction switch.

Specifications:

  • Model: NOCO-RND-01
  • Operating voltage (volt): 12-60V DC
  • Switch working voltage (volt): 12V DC
  • Working current (ampere): max. 3A
  • Snap-in installation
  • Pre-wired mating connector is included
  • LED display

Wiring:

  • Pin 1: B+ (battery positive), max. 60V DC
  • Pin 2: D (drive / forward) output, max. 60V DC
  • Pin 3: R (reverse) output, 12V DC
  • Pin 4: 12V input
  • Pin 5: B- (GND, common ground)
  • Pin 6: R (reverse) output, max. 60V DC
  • Pin 7: D (drive / forward) output, 12V DC

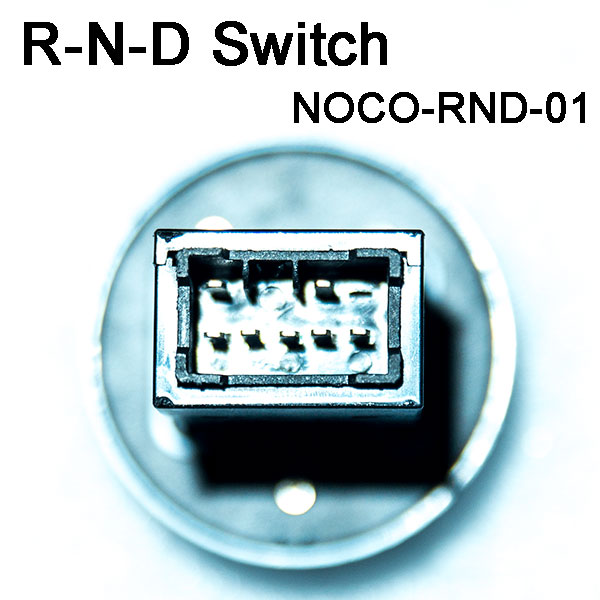

R-N-D Wheel Switch Mating Connector R-N-D Wheel Switch Connector
7-Pin Connector

Switching Principle Diagram:

https://www.noco-evco.com/ - NOCO-RND-01 F/R R-N-D Switch Principal Wiring Diagram

Dimensions:

https://www.noco-evco.com/ - NOCO-RND-01 3-Position Forward / Reverse R-N-D Switch For Electric Vehicle
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
3-Position electric Vehicle Wheel Switch. Forward, Reverse and Neutral positions, With LED Display, model: NOCO-RND-01
