Non-Isolated Type DC-DC Converter

Model: NOCO-DC-350W, 36-48V to 12V, 350 Watts

NOCO-DC-350W is a non-isolated type DC-DC converter, used as the 12V DC source for electric vehicles. Non-isolated DC-DC converter design features a direct connection between the input and output circuits (i.e. have a single circuit, share the commond ground). There is no transformer where energy would be lost.

Non-isolated DC-DC converters are used in low-power devices as the DC power Source. Compared to isolated models, non-isolated DC-DC converters offer advantages of smaller size, higher efficiency and lower heat dissipation.

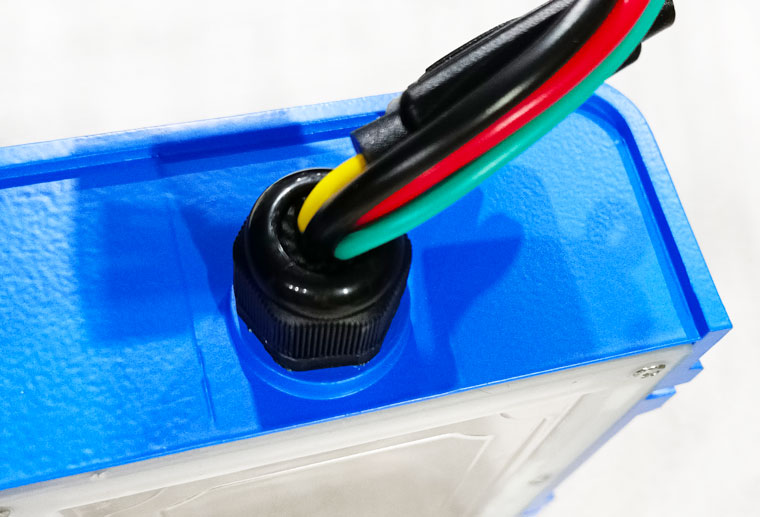

Connector & Pre-wired Mating Connector

Features:

• Product: non-isolated type DC-DC converter
• Model: NOCO-DC-350W
• Input voltage (volts): 36-48V DC (30-55V)
• Output voltage (volts): 12V DC (measured output voltage 12.7-13.2V DC)
• Output current (amps): maximum 29.2A
• Power rate: maximum 350 Watts
• Ingress protection: IP67
• With wired mating connector
• Net weight: 0.86kg (with mating connector)
• Sizes: Width 120mm x Length 176mm x height 50mm

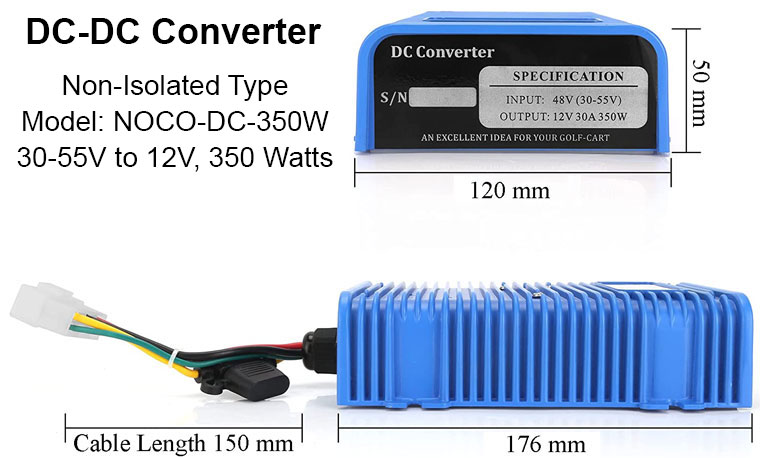

Dimensions:

Wiring Diagram:

Non-Isolated Type DC-DC Converter

Model: NOCO-DC-350W, 36-48V to 12V, 350 Watts

NOCO-DC-350W is a non-isolated type DC-DC converter, used as the 12V DC source for electric vehicles. Non-isolated DC-DC converter design features a direct connection between the input and output circuits (i.e. have a single circuit, share the commond ground). There is no transformer where energy would be lost.

Non-isolated DC-DC converters are used in low-power devices as the DC power Source. Compared to isolated models, non-isolated DC-DC converters offer advantages of smaller size, higher efficiency and lower heat dissipation.

DC-DC Converter Connector

Pre-wired Mating Connector

Features:

• Product: non-isolated type DC-DC converter
• Model: NOCO-DC-350W
• Input voltage (volts): 36-48V DC (30-55V)
• Output voltage (volts): 12V DC (measured output voltage 12.7-13.2V DC)
• Output current (amps): maximum 29.2A
• Power rate: maximum 350 Watts
• Ingress protection: IP67
• With wired mating connector
• Net weight: 0.86kg (with mating connector)
• Sizes: Width 120mm x Length 176mm x height 50mm

Dimensions:

Wiring Diagram:
