DC Contactor / Solenoid For Golf Cart

Rated for 50A continuous load; multiple options of control coil working voltage

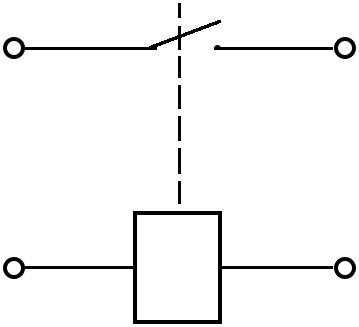

Circuit Diagram

Overview

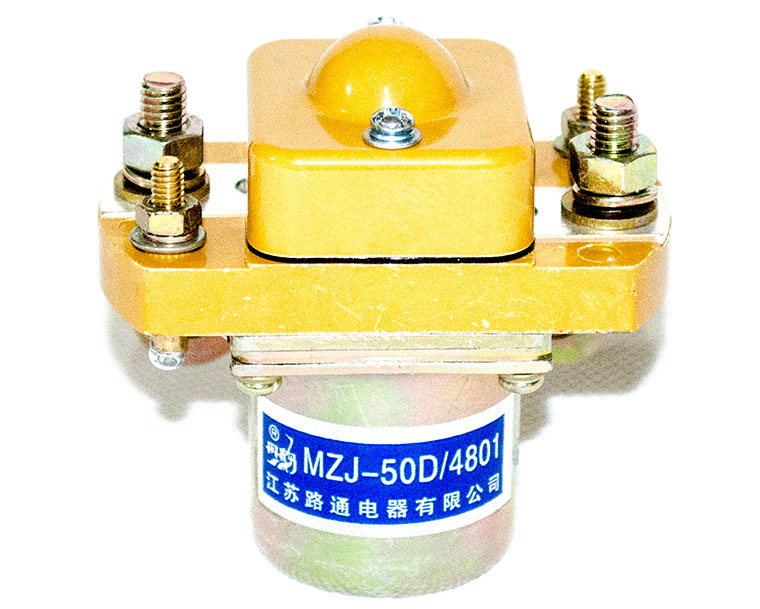

The MZJ-50D contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as mobility vehicle, electric cart, electric pallet stacker, order picker, etc. MZJ-50D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

• Main rated load current of contact circuit (amps): 50A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 50A: Not above 60mV
• Dimensions (LxWxH ): 55.5x54x38.5 mm
• Mounting: two 4.7mm fixing holes in bracket; pitch-row: 47mm
• Main contact full load rating voltage (recommended): Max. 48V (inductive load) / 60V (resistive load)
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times

Specifications:

• Model: MZJ-50D (ZJ50D, SPST, Single Pole Single Throw)
• Voltage Options (Volts): 12V, 24V, 30V, 36V, 40V, 48V or 60V.
• Ambient temperature：-25~+40°C
• Altitude range：0~2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.19 kg

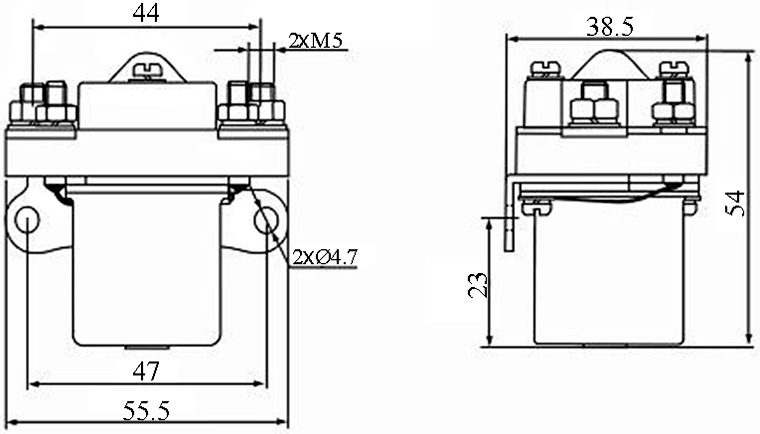

Dimensions:

Overview

The MZJ-50D contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as mobility vehicle, electric cart, electric pallet stacker, order picker, etc. MZJ-50D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

• Main rated load current of contact circuit (amps): 50A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 50A: Not above 60mV
• Dimensions (LxWxH ): 55.5x54x38.5 mm
• Mounting: two 4.7mm fixing holes in bracket; pitch-row: 47mm
• Main contact full load rating voltage (recommended): Max. 48V (inductive load) / 60V (resistive load)
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times

Figure: Circuit Diagram

Specifications:

• Model: MZJ-50D (ZJ50D, SPST, Single Pole Single Throw)
• Voltage Options (Volts): 12V, 24V, 30V, 36V, 40V, 48V or 60V.
• Ambient temperature：-25~+40°C
• Altitude range：0~2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.19 kg

Dimensions:
