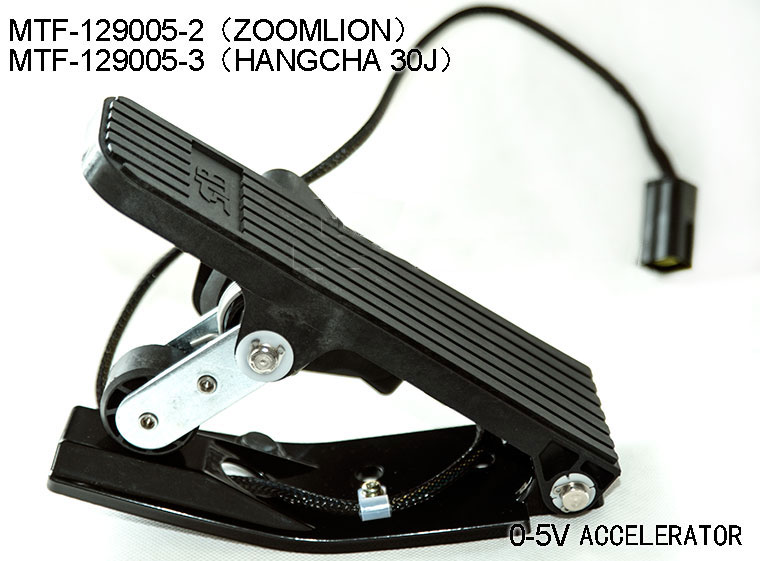

Electric Throttle, Foot Pedal Accelerator

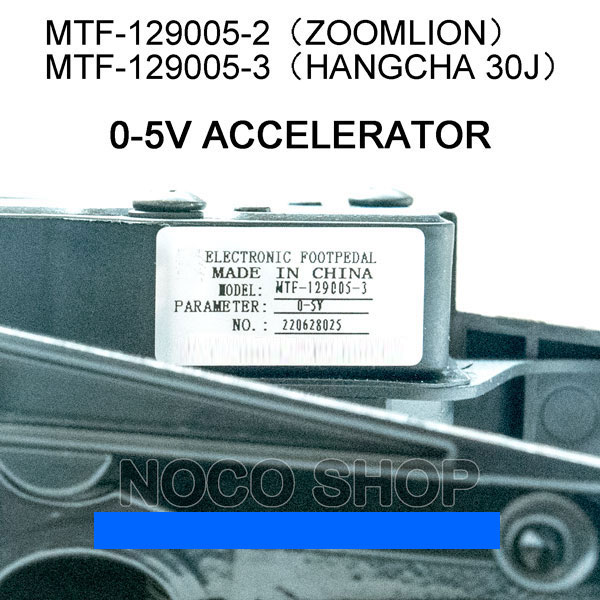

Model: MTF-129005-2 / MTF-129005-3, 0-5V voltage throttle

Mating Connector

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the electric throttle (foot pedat accelerator) models MTF-129005-2 / MTF-129005-3 are accelerating signal generator for motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

• Model:
  • MTF-129005-2 (ZOOMLION vehicle part)
  • MTF-129005-3 (forklift part, typical appication: HANGCHA 30J)
  • Alternative model:
    • JCTH-1201
    • JCTH-3601 / JCTH-3601-30H (4-Pin connector)
    • JCTH-8001
• Working voltage: 24 - 80V DC
• Output (accelerating signal): 0 - 5V DC
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

Working with CURTIS and other brand controllers, foot pedal throttles MTF-129005 are ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor.

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

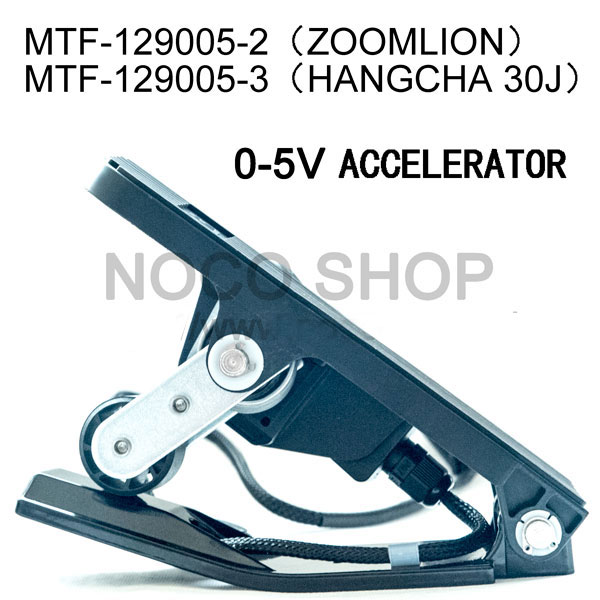

Electric Throttle, Foot Pedal Accelerator

Model: MTF-129005-2 / MTF-129005-3, 0-5V voltage throttle

Electric throttles (foot pedal accelerator) MTF-129005-2 / MTF-129005-3, are designed for electric vehicle traction motor speed control purpose.

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the electric throttle (foot pedat accelerator) models MTF-129005-2 / MTF-129005-3 are accelerating signal generator for motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck. Typical application: ZOOMLION utility vehicles and HANGCHA forklifts.

Specifications:

• Model:
  • MTF-129005-2 (ZOOMLION vehicle part)
  • MTF-129005-3 (forklift part, typical appication: HANGCHA 30J)
  • Alternative model:
    • JCTH-1201
    • JCTH-3601 / JCTH-3601-30H (4-Pin connector)
    • JCTH-8001
• Working voltage: 24 - 80V DC
• Output (accelerating signal): 0 - 5V DC
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Mating Connector

Application:

Working with CURTIS and other brand controllers, foot pedal throttles MTF-129005 are ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor.

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

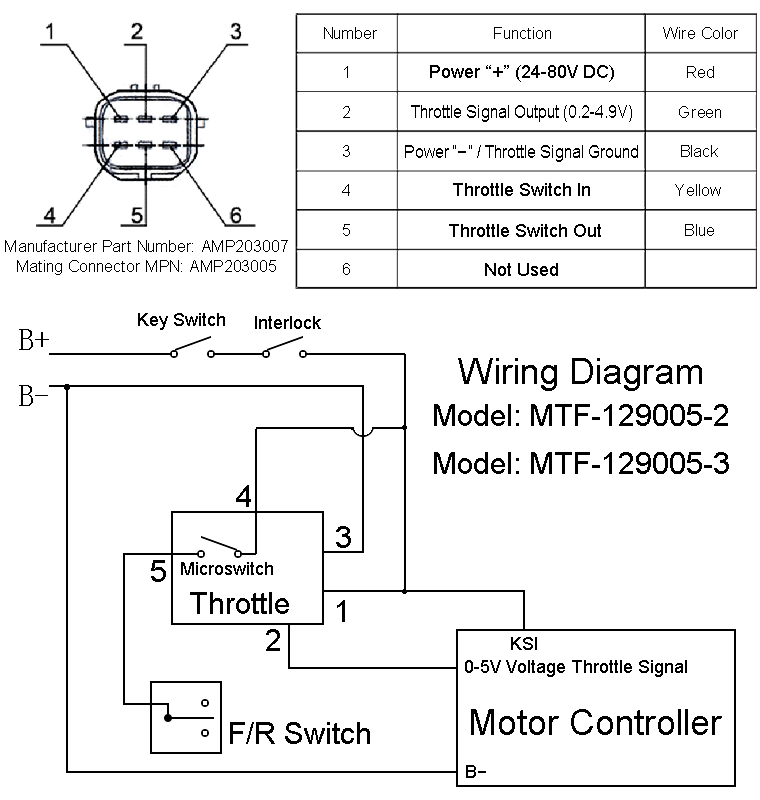

Wiring:
