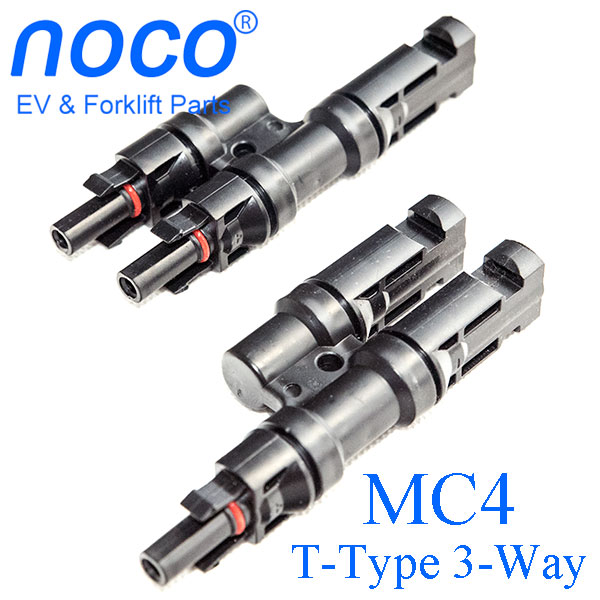

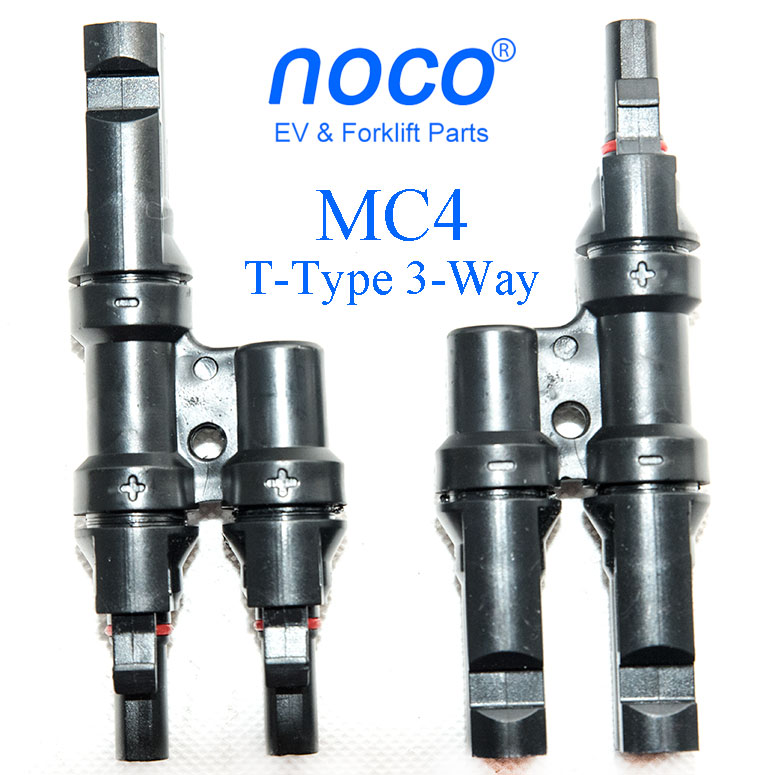

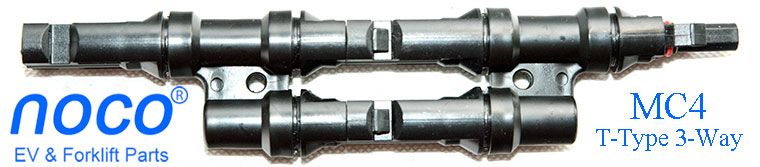

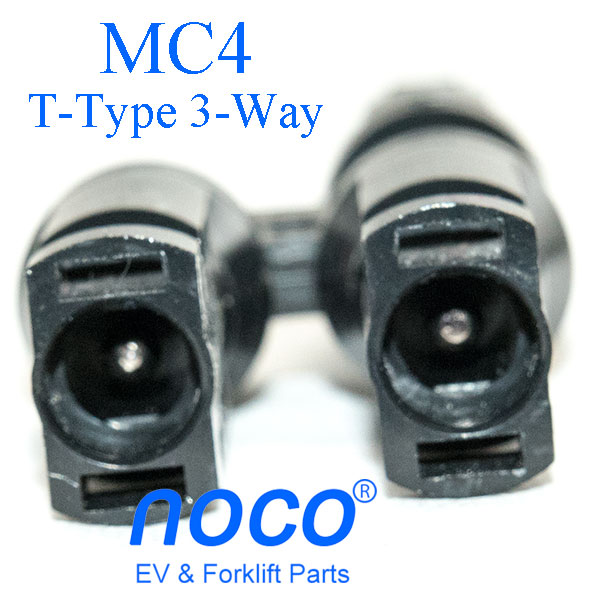

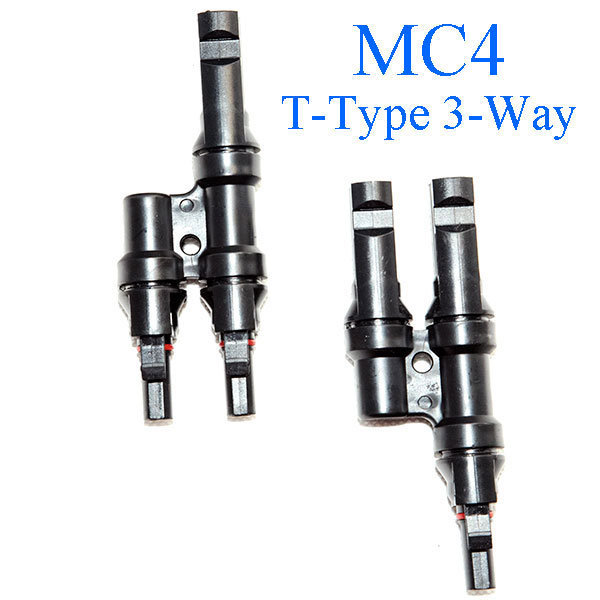

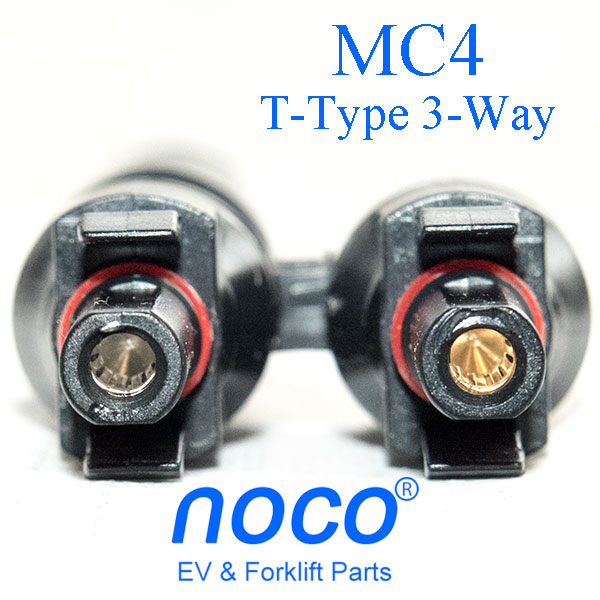

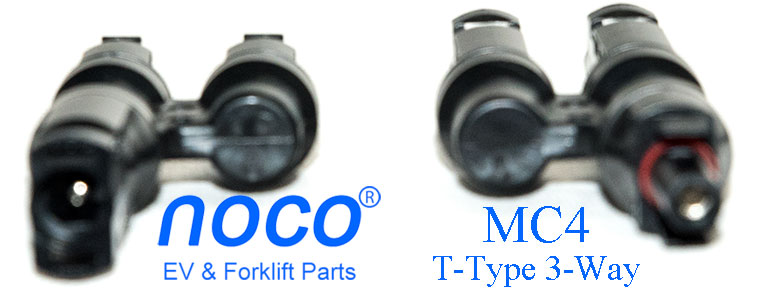

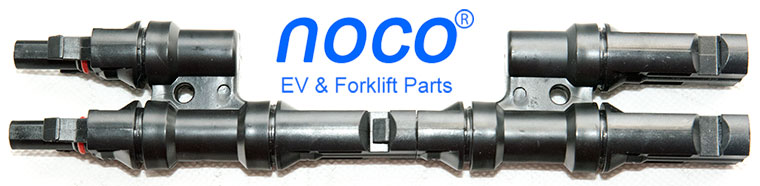

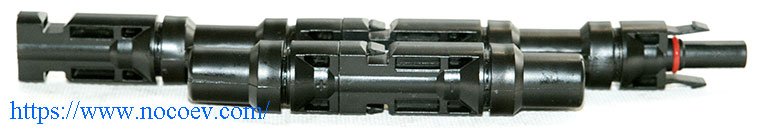

Compatible with NOCO-SC-4 Solar Connector, NOCO-SC-4-T2 adapter connector is designed to link two parallel electric power lines (for example the output of two neighboured solar panels), or to divide one power line into two. NOCO-SC-4-T2 makes wiring of variable electrical power systmes (maximum current rate of 30A) much simpler and faster, typical applications including solar arrays interconnection, photovoltaic power station, remote communication, wind turbo power generator power distribution grid, etc.

Specifications:

• Model: NOCO-SC-4-T2
• Protection class: IP67
• Suitable wire sizes & rated current:
  • 2.5 mm² (AWG14): 12A
  • 4.0 mm² (AWG12): 20A
  • 6.0 mm² (AWG10): 30A
• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Compatible with PV (photovoltaic) cables with different insulation diameters
• Withstanding voltage: 1000V
• Contacting resistance: ≤ 0.5 mΩ
• Insulating resistance: ≥ 500 MΩ
• Anti-flame class: UL94-VO
• Wiring method: cold press
• Contact material: Silver plated copper
• Insulation material: Polycarbonate (PC) / Polyamide (PA, Nylon), black
• Environmental temperature range: -40 °C ~ +90 °C
• Insertion force: ≤ 50N; Withdrawal force: ≥ 50N
