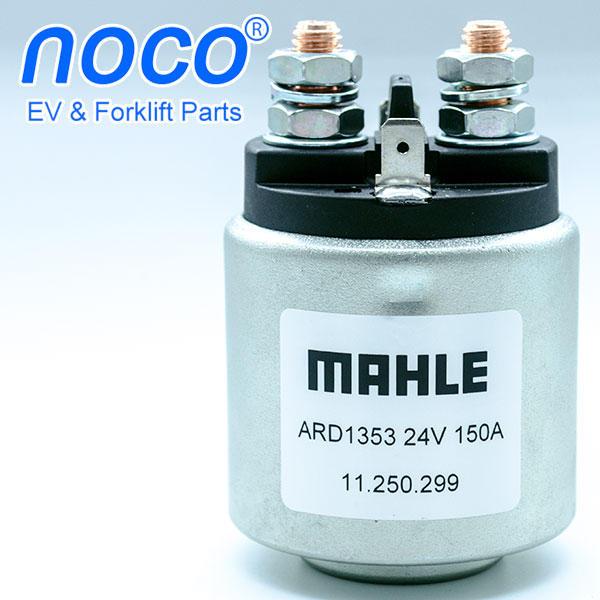

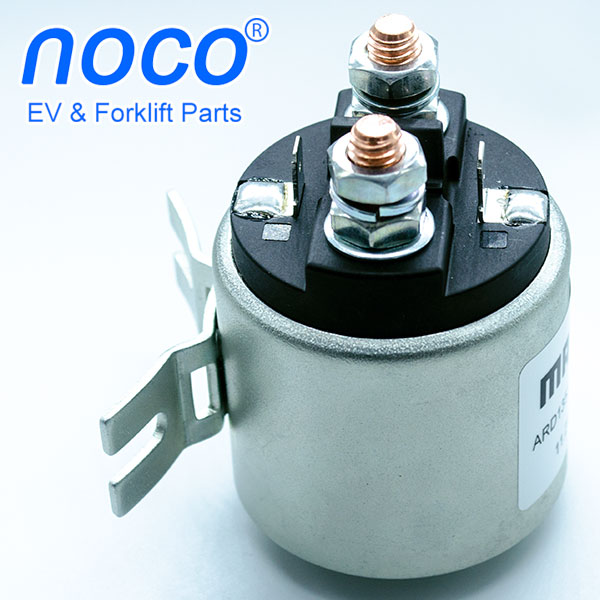

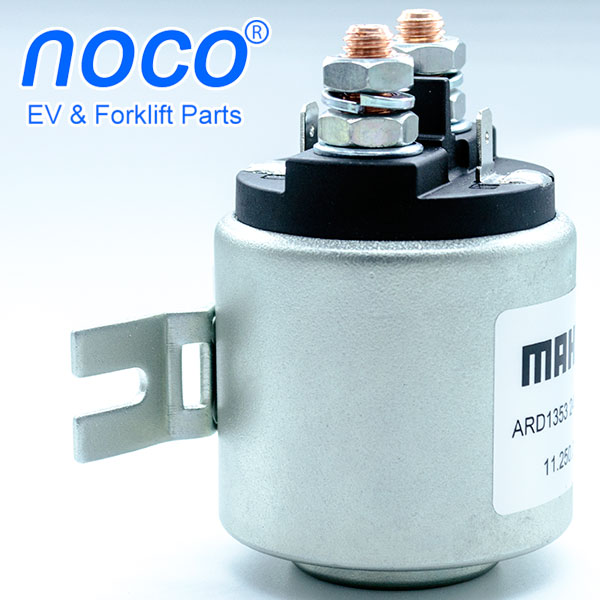

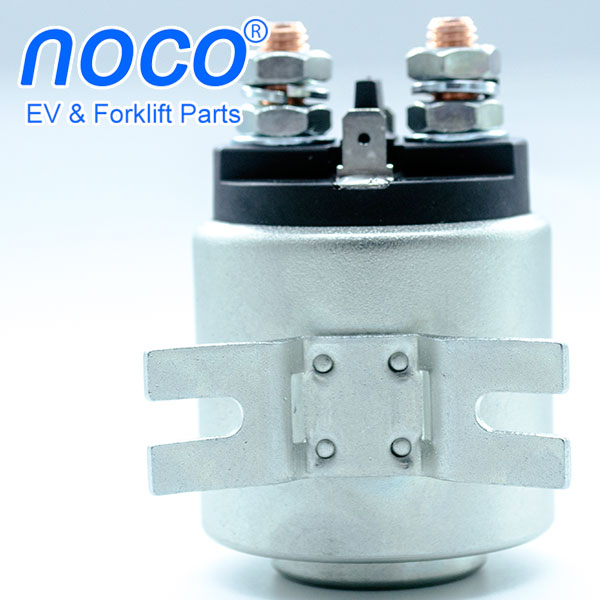

MAHLE / LETRIKA / ISKRA DC Contactor / Solenoid

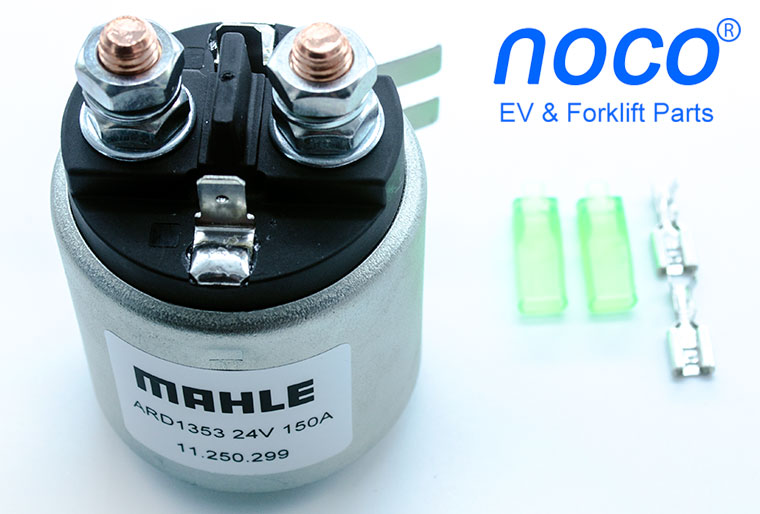

Model: ARD1353, 150A, normal open, single pole single throw (NO SPST)

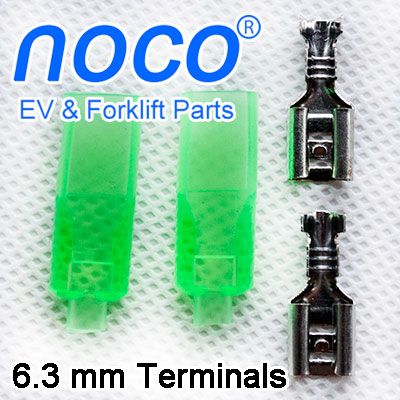

6.3 mm Spade Terminals

Overview

The ARD1353 contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors of starter engine and hydraulic power transmission system (oil pump), wildly used in electric vehicles such as industrial truck, electric forklift, electric pallet stacker, golf cart, etc. ARD1353 has main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Specifications:

• Model: ARD1353 (closed metal contact chamber)
• Control coil voltage options (volt): 12V or 24V
• Main rated load current of contact circuit (ampere): 150A
• Short time maximal current (ampere): 300A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 150A: Not above 80mV
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times
• Ambient temperature：-25 ~ +60°C
• Altitude range：0 ~ 2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7 ~ 1.1Ue
• Net weight: 0.695 kg

Typical applications:

• Industrial electric trucks
• Battery powered vehicle accessories
• Electric road vehicles
• Marine equipment
• Railway equipment
• Automobile starter engine motor power ON / OFF switch
• Folklift hydraulic transmission system oil pump driving motor control
• Industrial equipment power switching
• Battery powered engine / motor power feeding circuit

Features:

• Different switch holders
• Direct current loads
• Excellent conductivity

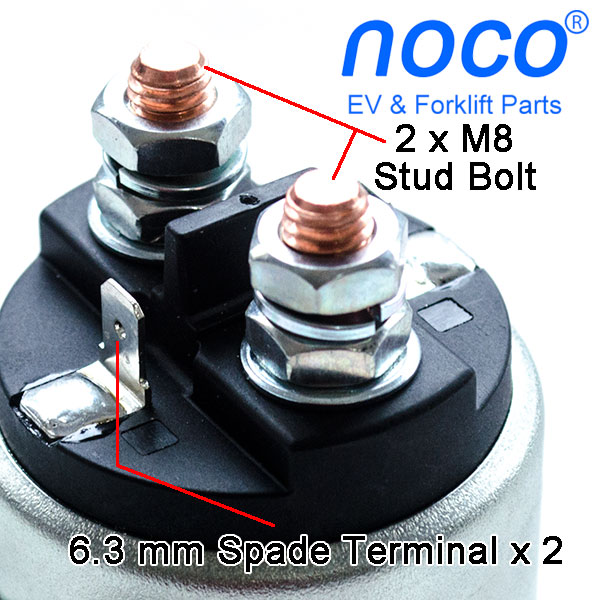

Wiring:

• Main contacts: 2xM8 stud bolts
• Control coil: 2x6.3mm spade terminals

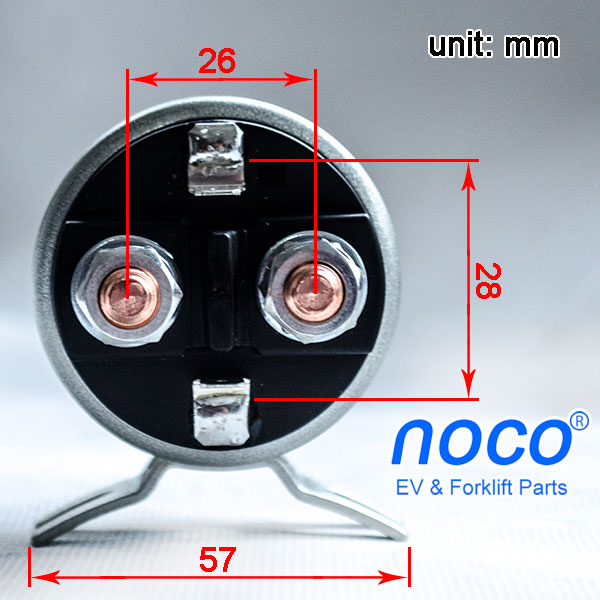

Installation sizes (unit: mm):

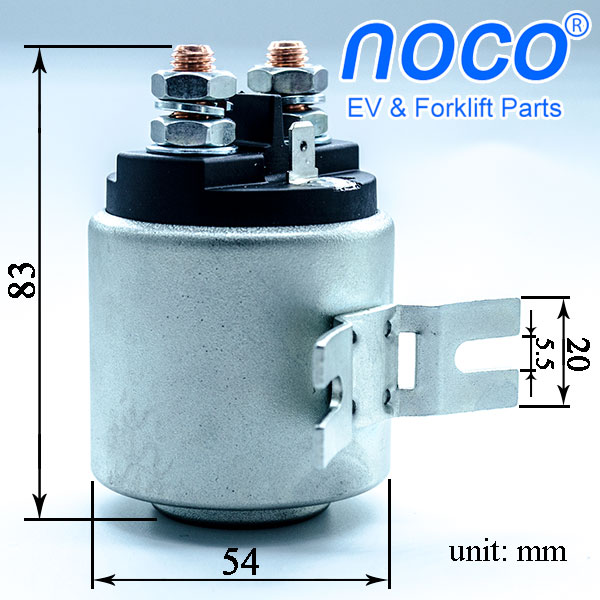

Dimensions (unit: mm):

6.3 mm Spade Terminals

Overview

The ARD1353 contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors of starter engine and hydraulic power transmission system (oil pump), wildly used in electric vehicles such as industrial truck, electric forklift, electric pallet stacker, golf cart, etc. ARD1353 has main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Specifications:

• Model: ARD1353 (closed metal contact chamber)
• Control coil voltage options (volt): 12V or 24V
• Main rated load current of contact circuit (ampere): 150A
• Short time maximal current (ampere): 300A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 150A: Not above 80mV
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times
• Ambient temperature：-25 ~ +60°C
• Altitude range：0 ~ 2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7 ~ 1.1Ue
• Net weight: 0.695 kg

Typical applications:

• Industrial electric trucks
• Battery powered vehicle accessories
• Electric road vehicles
• Marine equipment
• Railway equipment
• Automobile starter engine motor power ON / OFF switch
• Folklift hydraulic transmission system oil pump driving motor control
• Industrial equipment power switching
• Battery powered engine / motor power feeding circuit

Features:

• Different switch holders
• Direct current loads
• Excellent conductivity

Wiring:

• Main contacts: 2xM8 stud bolts
• Control coil: 2x6.3mm spade terminals

Installation sizes (unit: mm):

Dimensions (unit: mm):
