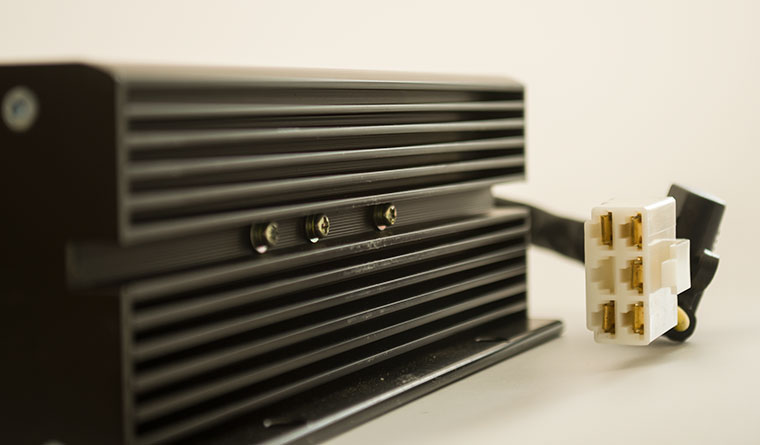

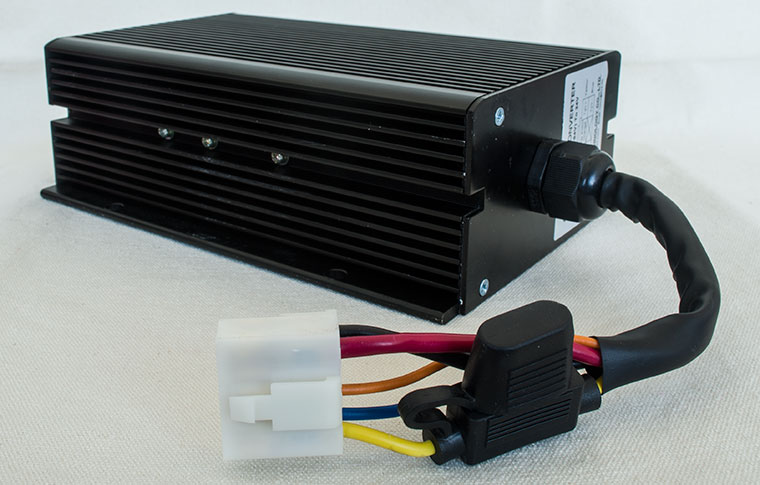

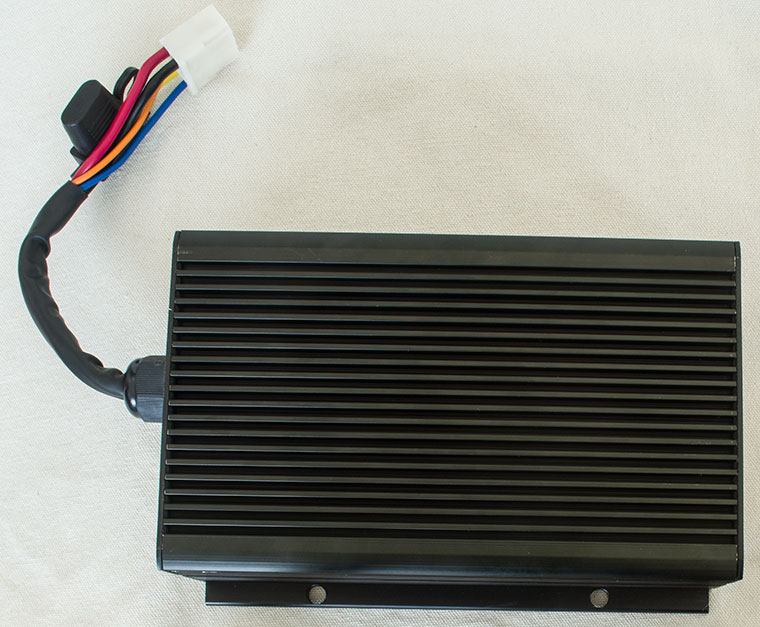

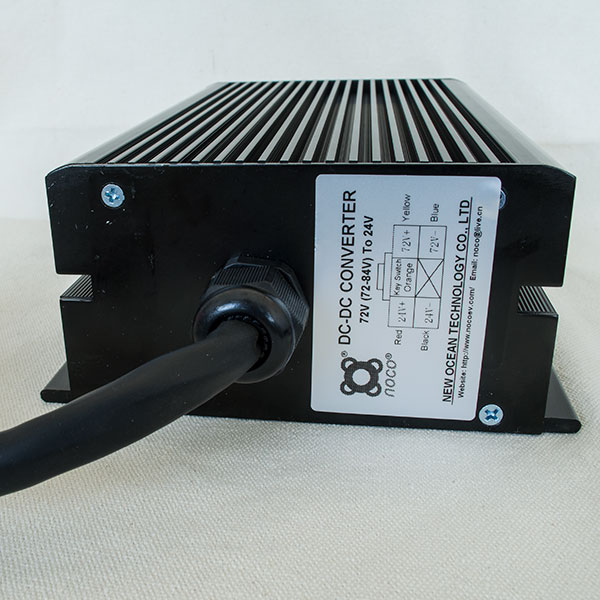

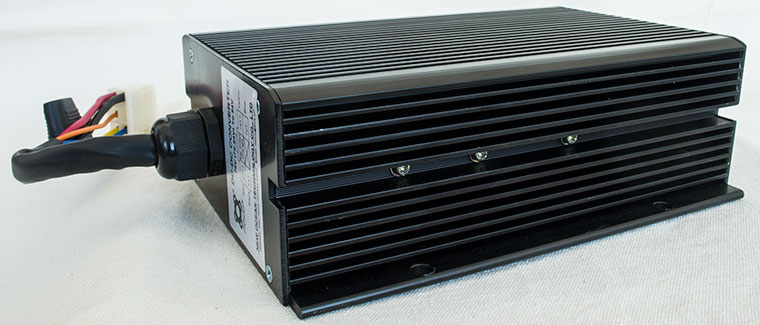

Isolated Type DC/DC Converter

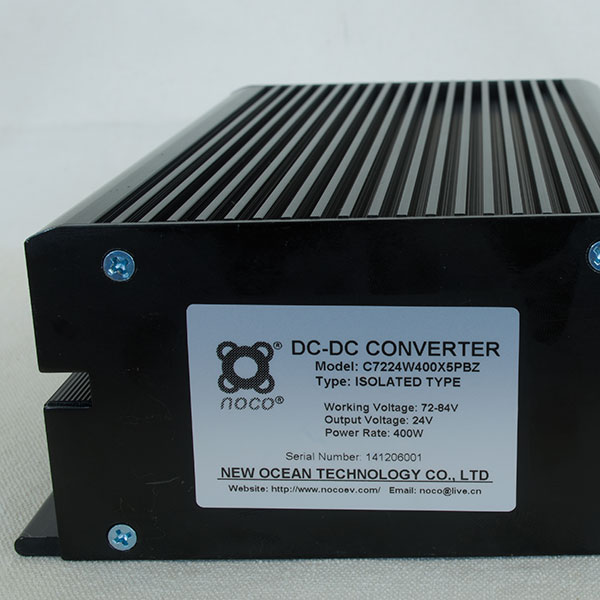

Model: HXDC_Isolated-7224/400
72V to 24V - 400W

97.99 USD

Secured Payment of PayPal, VISA, MASTERCARD

Free Int'l Expedited Shipping

12-Month warranty

Specifications:

Input voltage: 72V (72-84V) DC
Output voltage: 24V DC
Max output current: 16.5A
Electrical isolation to heatsink (min.): 500 VAC
Self-protections available:
- DC power poles reverse connection protected
- Over-current protection
- Shortcut protection
- Over-voltage & low-voltage protection
- Overheat protection

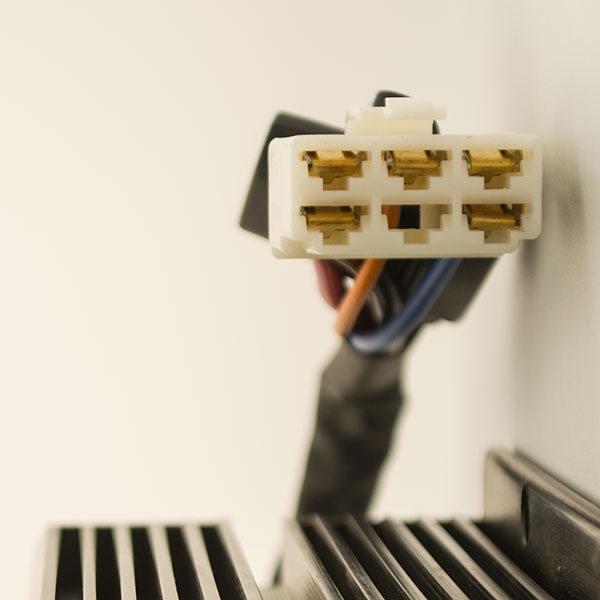

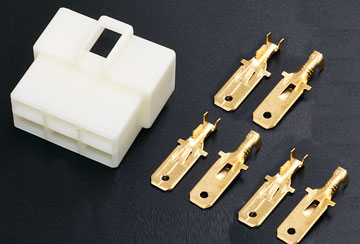

Mating connector included
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Product dimensions: 200mm x 139mm x 66mm

48V to 12V DC-DC Converter, 12V Automotive or Boat DC Power Source

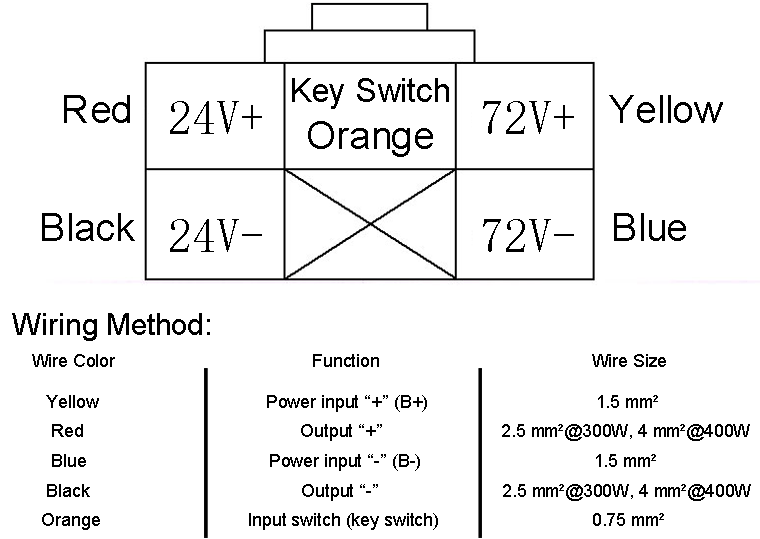

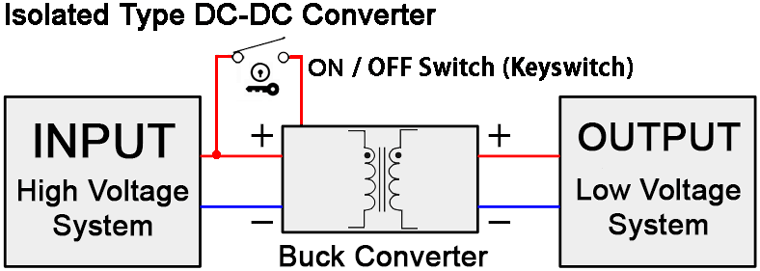

Wiring instruction:
