Flexible Battery Cable With Connectors
Waterproof Type
Lot of 10

25 & 35 mm² Cable, From 64.00 USD

50 & 70 mm² Cable, From 69.00 USD

Secured Payment of PayPal, VISA, MASTERCARD

Free Int'l Expedited Shipping

12-Month warranty

Specifications:

Superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Rated voltage (Uo / U): 450V / 700V
Suitable for 3/8 inch (10 mm) bolts
Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat/cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life

Flexible battery power cable, waterproof electric vehicle DC source linking cable

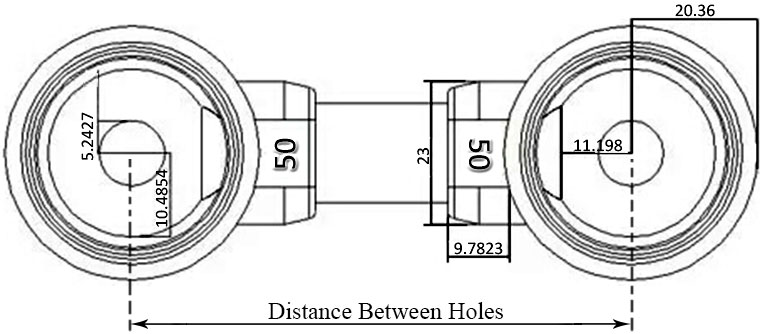

Dimensions (unit: mm)

Flexible Battery Cable With Connectors, Dimension Diagram

Basic Information

Section Area	ohm / km	Wire Diameter	Insulating layer Thickness	Cable Diameter	Rated Current @ 85℃
25 mm²	0.78	6.8 mm	1.6 mm	11.3±0.2 mm	173A
35 mm²	0.554	8.0 - 8.3 mm	1.6 mm	13±0.2 mm	236A
50 mm²	0.386	10.0 - 10.7 mm	2.5 mm	15±0.2 mm	274A
70 mm²	0.272	12.5 mm	2.5 mm	17.3±0.2 mm	341A

Characteristics:

excellent flexibility: bending radius (r) = 5 x wire diameter (Ø)
working temperature: −40℃ - 125℃
cable temperature @ constant rated current: 85℃
cable temperature @ shorted circuit (max. 5 seconds): 250℃
insulating layer material: TPE-V, no halogen content
conform to standards DIN EN 13602 (material requirement) and UL94/HB (anti-flame)
weight per meter:
- 25 mm² cable: 285 gram
- 35 mm² cable: 400 gram
- 50 mm² cable: 550 gram
- 70 mm² cable: 780 gram

We may supply different cables for electric vehicles, marine ships, telecommunication systems, railway vehicles, etc, by adopting to different connector forms. For more details, either for application, or for OEM/ODM services, please contact us.
