FREI Universal Pro Traction Switch

Model: 3203-30630-A0, 0-5V Throttle + Forward / Reverse Switch, TEMO200 & TEMO600 Tiller Head Part

Compatible with FREI 3105F00136-00 & 3203-10630-A0

Attention: the price listed is only for the FREI Universal Pro Traction Switch 3203-30630-A0, not including the plastic knobs (available as individual parts).

Description:

The FREI UNIVERSAL PRO traction switch serves as a setpoint generator for electrically powered vehicles. Besides the analogue signal for the travel speed setpoint, the traction switch also delivers two digital direction signals. Using the integrated microswitch, a body protection switch function can be implemented in the tiller head.

FREI Universal traction switch model 3203-30630-A0 indicates that it's an analogue output 0-5V (single ended type), not a potentiometer output.

We supply also the FREI traction switch model 3105F00136-01 with a single-ended potentiometer output.

The UNIVERSAL PRO traction switch is available with various analogue characteristic curves as well as active-low and active-high digital outputs. This ensures compatibility with motor controllers from well-known controller manufacturers.

• Product model: 3203-30630-A0 (upgraded version of 3105F00136-00, 3203-10630-A0 and other ancient FREI traction switch models)
• Angle of rotation: ± 45°
• Membrane-sensor technology for potentiometers and direction switches

• Integrated microswitch for the body protection switch function
• Ideal for use in TEMO 600 and TEMO 200
• Two digital direction signals
• One analogue signal for travel speed
• Various analogue output characteristics available
• Optional separate power supply for potentiometers
• Compatible with a large number of motor controllers
• Rated voltage: 24/36/48 VDC
• Protection class: IP 54

Operating Handles (come in pair, one left, one right; available as individual parts):

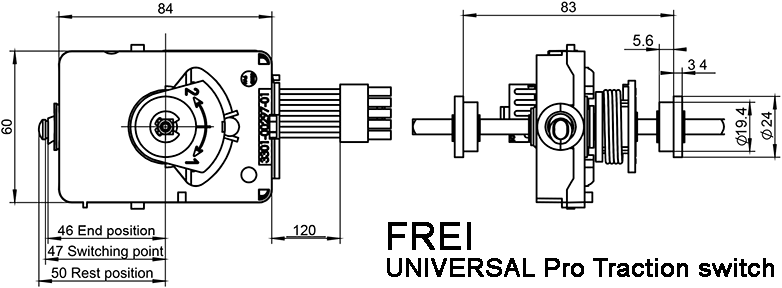

Dimensions (unit: mm):
