E-Z-GO Gas RXV Golf Cart Key Switch

Part numbers: 611284, 603623

Mating Connector

Specifications:

• EZ-GO Gas RXV golf cart key switch
• Unique design of 2-Position indicator
• Snap-in installation, easy to replace
• Replace part numbers: 611284, 603623

This key switch has a 2-Position direction status indicator and only allows the key to be removed from the switch when positioned in "OFF" mode. The two switch positions, ON and OFF, are clearly and accurately displayed on the bezel of the key switch by means of raised markings:

• OFF: power off
• ON: power on

Tip: this key switch can also be used as the control circuit power ON / OFF switch of battery powered golf cart and mobility vehicle.

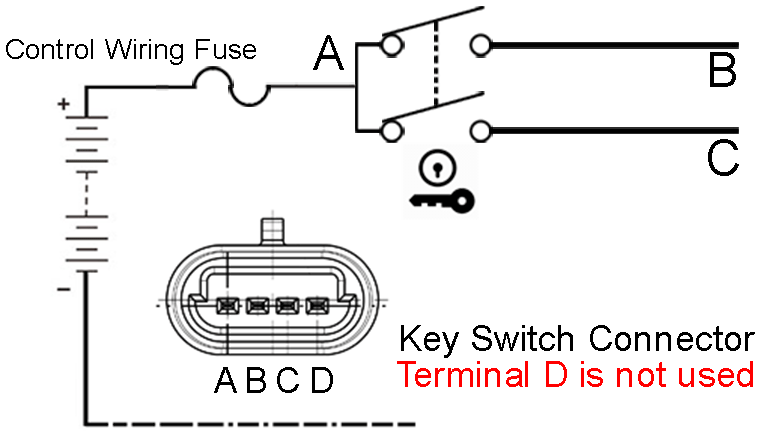

Wiring diagram:

E-Z-GO Gas RXV Golf Cart Key Switch

Part numbers: 611284, 603623

Mating Connector

Specifications:

• EZ-GO Gas RXV golf cart key switch
• Unique design of 2-Position indicator
• Snap-in installation, easy to replace
• Replace part numbers: 611284, 603623

This key switch has a 2-Position direction status indicator and only allows the key to be removed from the switch when positioned in "OFF" mode. The two switch positions, ON and OFF, are clearly and accurately displayed on the bezel of the key switch by means of raised markings:

• OFF: power off
• ON: power on

Tip: this key switch can also be used as the control circuit power ON / OFF switch of battery powered golf cart and mobility vehicle.

Wiring diagram:
