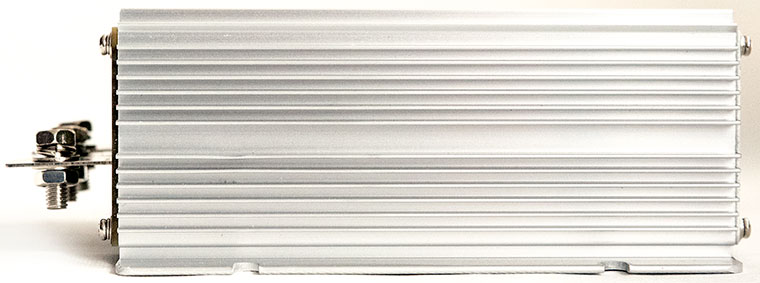

36-48V To 12V Non-Isolated Type DC-DC Converter

Model: RC481250, 12V 600W DC Power Source

Model: RC481260, 12V 720W DC Power Source

Product specification:

• Model: RC481250 (600W) / RC481260 (720W)
• Input voltage: 36-48V DC (28-60V DC)
• Output voltage: 12V DC
• Max output current: 50A (RC481250) / 60A (RC481260)
• Electrical isolation to heatsink (min.): 500 VAC
• Conversion efficiency: 97%
• Output peak power: 125%
• Voltage regulation rate: < 1%
• Load adjustment rate: < 2%
• No load current: < 30mA
• Ripple: < 180mV
• Operating temperature: -40°C to +80°C
• Ingress Protection: IP68
• Self-protections available:
  • DC power poles reverse connection protected
  • Over-current protection
  • Shortcut protection
  • Over-voltage & low-voltage protection
  • Overheat protection
• Operating ambient temperature range: -40°C to 50°C
• Storage ambient temperature range: -40°C to 85°C

Wiring:

• Input terminal: 36-48V+
• Output terminal: 12V+
• GND: 0V, public end

Dimensions:
