CURTIS 906 "Fuel" Gauge For Lead Acid Batteries

36V model 906D36BWBANV / 48V model 906D48BWBANV

Battery Charger | Trojan Flooded Lead Acid

We supply battery charger for Trojan liquid Lead Acid batteries (for example T-105).

Overview

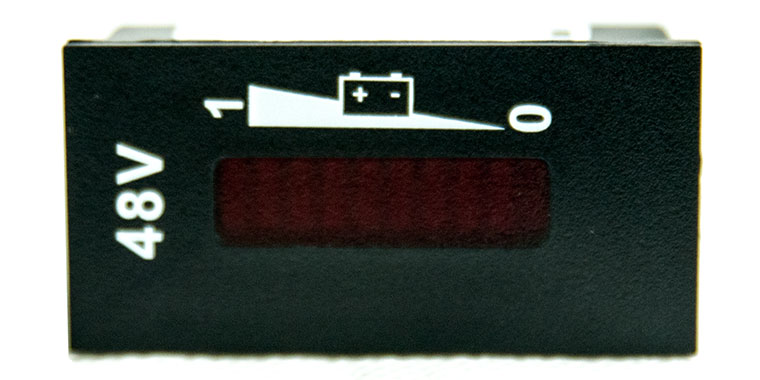

CURTIS battery discharging meter models 906D36BWBANV / 906D48BWBANV are inexpensive, one piece, easy to install battery fuel gauges. CURTIS 906 type meter is completely solid state and provides a reliable, accurate, and easy to read display of battery state-of-charge. Model 906D36BWBANV / 906D48BWBANV are equipped with a DIN case (rectangular case) and a printed circuit board mounted module for custom dash panel applications.

CURTIS Battery Discharge Meter models 906D36BWBANV / 906D48BWBANV are used as the battery discharging level indicator for electric vehicle lead–acid batteries.

Typical application: golf cart (Club Car, E-Z-GO, Star EV, Eagle, Yamaha, etc.), electric forklift, tow tractor, mobility vehicles ...

• The Output Signal option causes the voltage on pin 3 to drop from 5 to 0 volts at 80% discharge. It can be used to signal another component or to allow for the disabling of a specified vehicle function, insuring against abusive deep discharge conditions. The Output Signal can also be used to drive the CURTIS 1178 Relay Module.
• Special models and custom panels are available. For more details, please see the 906 Meter Datasheet (PDF format).

Specifications

• Manufacturer: CURTIS
• Model: 906D36BWBANV / 906D48BWBANV
• Voltage Options (Volts): 36V / 48V
• Operating voltage: +/–25% of nominal voltage
• Display: 10-digit, LED
• Operating temperature: –40°C to +85°C
• Storage temperature: –50°C to +90°C
• Shock & Vibration: Meets SAE J 1378

Features include:

• All principal circuits are integrated in a single chip for long-life reliability.
• A 10-bar LED displays the state-of-charge successively, bar by bar, from full to empty.
• At 70% depth of discharge, a flashing LED signals an “energy reserve” alert.
• At 80%, alternately flashing LEDs provides an “empty” status warning.
• Model 906D36BWBANV / 906D48BWBANV is compact and easily installed in panel cutouts as small as 45.3 mm x 22.3 mm ±0.1, with as little as 35 mm behind panel clearance needed.
• Recognizes improperly charged battery.
• Keyswitch activated LED display (state-of-charge is monitored as long as 906 is connected to battery).
• Memory allows gauge to recall state-of-charge whenever battery is disconnected.
• Three possible reset methods:
  • Open Circuit Reset (OCR): Upon reconnection of a battery the gauge will reset if it measures 2.09 volts/ cell or higher (example “B” profile) (for units with memory option).
  • High Voltage Reset (HVR): Gauge must measure >2.35 volts per cell for 6 continuous minutes during charging (example “B” profile).
  • Charge Tracking Reset (CTR): Display tracks charge level during opportunity charging (requires gauge to be connected to battery when charging).

Battery Discharge Gauge

Designed for liquid (flooded) Lead Ac

We supply battery charger for Trojan liquid Lead Acid batteries (for example T-105).

Battery Charger | Trojan Flooded Lead Acid

Overview

CURTIS Battery Discharge Meter models 906D36BWBANV / 906D48BWBANV are used as the battery discharging level indicator for electric vehicle lead–acid batteries.

Typical application: golf cart (Club Car, E-Z-GO, Star EV, Eagle, Yamaha, etc.), electric forklift, tow tractor, mobility vehicles ...

CURTIS battery discharging meter models 906D36BWBANV / 906D48BWBANV are inexpensive, one piece, easy to install battery fuel gauges. CURTIS 906 type meter is completely solid state and provides a reliable, accurate, and easy to read display of battery state-of-charge. Model 906D36BWBANV / 906D48BWBANV are equipped with a DIN case (rectangular case) and a printed circuit board mounted module for custom dash panel applications.

• The Output Signal option causes the voltage on pin 3 to drop from 5 to 0 volts at 80% discharge. It can be used to signal another component or to allow for the disabling of a specified vehicle function, insuring against abusive deep discharge conditions. The Output Signal can also be used to drive the CURTIS 1178 Relay Module.
• Special models and custom panels are available. For more details, please see the 906 Meter Datasheet (PDF format).

Specifications

• Manufacturer: CURTIS
• Model: 906D36BWBANV / 906D48BWBANV
• Voltage Options (Volts): 36V / 48V
• Operating voltage: +/–25% of nominal voltage
• Display: 10-digit, LED
• Operating temperature: –40°C to +85°C
• Storage temperature: –50°C to +90°C
• Shock & Vibration: Meets SAE J 1378

Features include:

• All principal circuits are integrated in a single chip for long-life reliability.
• A 10-bar LED displays the state-of-charge successively, bar by bar, from full to empty.
• At 70% depth of discharge, a flashing LED signals an “energy reserve” alert.
• At 80%, alternately flashing LEDs provides an “empty” status warning.
• Model 906D36BWBANV / 906D48BWBANV is compact and easily installed in panel cutouts as small as 45.3 mm x 22.3 mm ±0.1, with as little as 35 mm behind panel clearance needed.
• Recognizes improperly charged battery.
• Keyswitch activated LED display (state-of-charge is monitored as long as 906 is connected to battery).
• Memory allows gauge to recall state-of-charge whenever battery is disconnected.
• Three possible reset methods:
  • Open Circuit Reset (OCR): Upon reconnection of a battery the gauge will reset if it measures 2.09 volts/ cell or higher (example “B” profile) (for units with memory option).
  • High Voltage Reset (HVR): Gauge must measure >2.35 volts per cell for 6 continuous minutes during charging (example “B” profile).
  • Charge Tracking Reset (CTR): Display tracks charge level during opportunity charging (requires gauge to be connected to battery when charging).
