COMESYS Foot Pedal Throttle

Model: FZ3-142-70, upgraded version of F3-142-70, working with Danaher controller

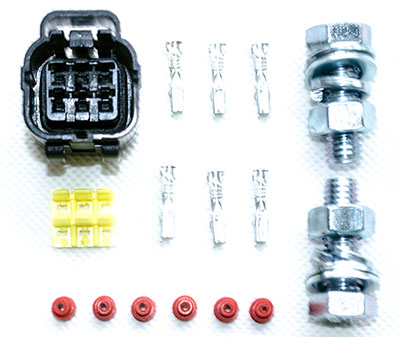

Mating Connector & Installation Kit

Description:

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FZ3-142-70 sends 0 - 10 VDC voltage throttle signal to DANAHER motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

• Speed signal range: 0 - 10 VDC, working with DANAHER controllers
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

Mainly designed for working with DANAHER controllers, COMESYS foot pedal throttle FZ3-142-70 is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor. The typical applications include:

• HELI forklift: HELI is the principal user for both models F3-142-70 and FZ3-142-70, which are used with DANAHER controllers in different HELI forklift series
• XILIN warehouse mobility vehicles
• NOBLELIFT forklift
• EP forklift and pallet truck
• LONKING forklift
• MAXIMAL forklift and utility vehicle
• BAOLI forklift
• HANGCHA forklift

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

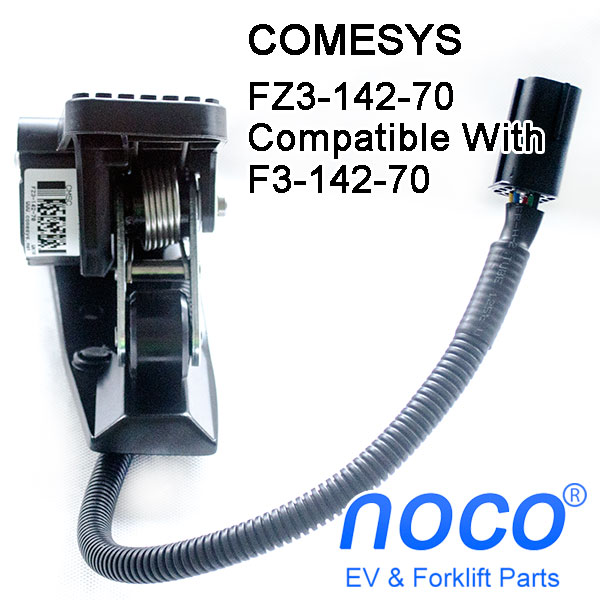

COMESYS Foot Pedal Throttle

Model: FZ3-142-70, compatible with F3-142-70

Description:

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FZ3-142-70 sends 0 - 10 VDC voltage throttle signal to DANAHER motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

• Speed signal range: 0 - 10 VDC, working with DANAHER controllers
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Mating Connector & Installation Kit

Application:

Mainly designed for working with DANAHER controllers, COMESYS foot pedal throttle FZ3-142-70 is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor. The typical applications include:

• HELI forklift: HELI is the principal user for both models F3-142-70 and FZ3-142-70, which are used with DANAHER controllers in different HELI forklift series
• XILIN warehouse mobility vehicles
• NOBLELIFT forklift
• EP forklift and pallet truck
• LONKING forklift
• MAXIMAL forklift and utility vehicle
• BAOLI forklift
• HANGCHA forklift

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
