COMESYS Electric Accelerator Assembly

FZ3-152-576, Kunshan Bennett Cleaning Machine Foot Pedal Throttle

Description:

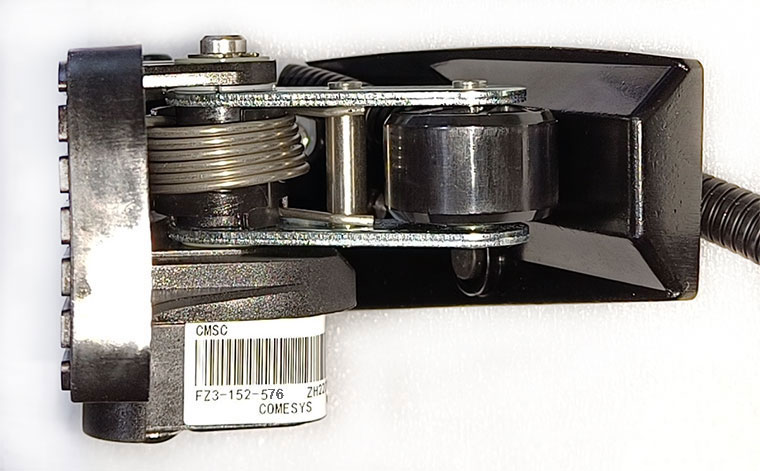

Designed for Kunshan Bennett Cleaning Machine, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ3-152-576 is featured with its compact size and stable output.

Specifications:

• Model: FZ3-152-576, Kunshan Bennett Cleaning Machine forklift foot pedal throttle
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

COMESYS FZ3-152-576 is an OEM foot pedal throttle for Kunshan Bennett Cleaning Machine.

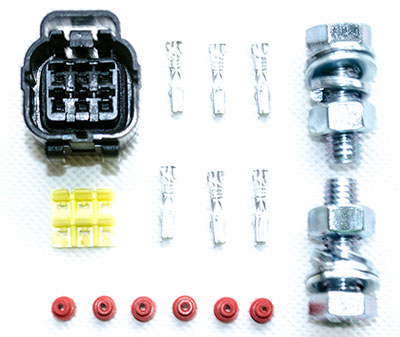

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc): 12 - 24VDC
2. Signal voltage: 0.4±0.1 to 4.7±0.3VDC
3. Operation Current(Iop): 15mA (Min), 20mA(Max)
4. Working temperature. : -40 - 85 °C
5. Storage temperature. : -40 - 105 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

COMESYS Electric Accelerator Assembly

FZ3-152-576, Kunshan Bennett Cleaning Machine Foot Pedal Throttle

Description:

Designed for COMESYS, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ3-152-576 is featured with its compact size and stable output.

Specifications:

• Model: FZ3-152-576, Kunshan Bennett Cleaning Machine forklift foot pedal throttle
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

COMESYS FZ3-152-576 is an OEM foot pedal throttle for Kunshan Bennett Cleaning Machine.

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc): 12 - 24VDC
2. Signal voltage: 0.4±0.1 to 4.7±0.1VDC
3. Operation Current(Iop): 15mA (Min), 20mA (Max)
4. Working temperature. : -40 - 85 °C
5. Storage temperature. : -40 - 105 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
