Forklift Electric Accelerator Assembly

FY3-112-70, working with Danaher Gen 6 Controller

Description:

Designed for forklift, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FY3-112-70 is featured with its compact size and stable output.

Specifications:

• Model: FY3-112-70
• Product life: 10,000,000 cycles ( full travel sycle)
• Ingress Protection: IP67
• Mating connector & installation kit are included
• ESD: tested in accordance with IEC 61000-4-2
• EMS: as per ISO 11452-2 (2004E)

Application:

COMESYS FY3-112-70 is an OEM product for forklifts. Typical application: HANGCHA forklift with Danaher Gen 6 Controller.

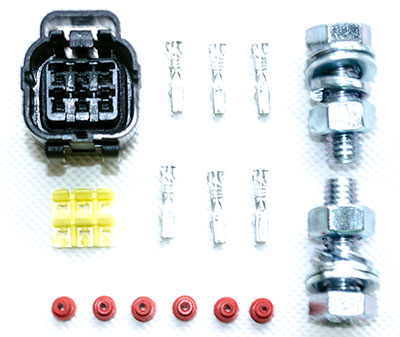

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc): 5VDC
2. Signal voltage: 0.5±0.05 to 4.0±0.15VDC
3. Operation Current(Iop): 10mA (Normal), 15mA (Max)
4. Working temperature.: -40 - 85 °C
5. Storage temperature.: -40 - 120 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
