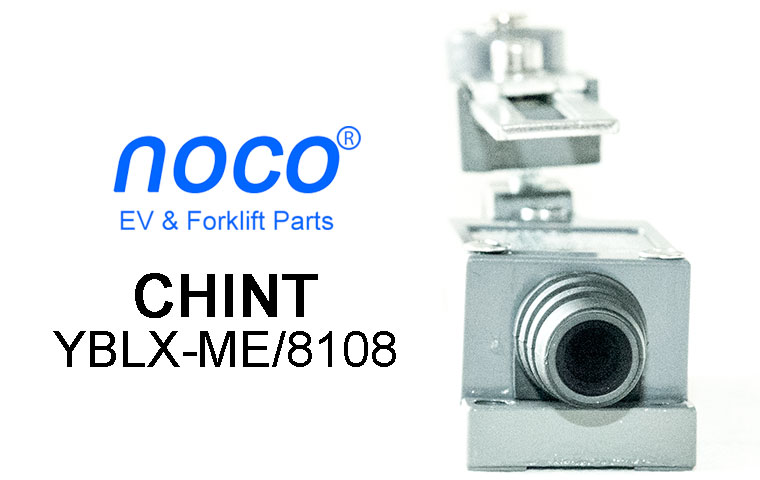

CHINT Mini Limit Switch

Model: YBLX-ME/8108, with adjustable roller lever

For CHINT YBLX-ME/8000 travel switch family, there are many different models, if you need a different model, please contact us ...

Wiring Diagram:

Characteristics:

• Model: YBLX-ME/8108 (Replacing YBLX-AZ/8108 & YBLX-TZ/8108)
• Rated for:
  • AC power: 380 Volts / 0.8 Ampere
  • DC power: 220 Volts / 0.16 Amperer
• Operation speed: 0.5 mm - 50 cm / second
• Operation force: ≤ 12N
• Travel range:
  • Maximum operating range ( max PT): 35°
  • Minimum overtravel (min OT): 70°
  • Total travel (TT): 105°
• Operating frequency:
  • Mechanical: 120 operations / minute
  • Electrical: 30 operations / minute
• Contact resistance: ≤ 15 mΩ (initial value)
• Insulation resistance: ≥ 100 MΩ (at 500VDC)
• Dielectric strength
  • 1140VAC, 50/60HZ for 1 minute between terminals of the same polarity
  • 1890VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
  • 2500VAC, 50/60 HZ for 1 minute between each terminal and ground
• Vibration: 10-55HZ, 1.5mm double amplitude
• Shock:
  • Mechanical durable: 1,000m / Sec2 (about 100 G'S)
  • Malfunction: 300m / Sec2 (about 30 G'S)
• Ambient temperature: -5℃ to +40℃
• Humidity: <95% RH
• Life span:
  • Mechanical: 600,000 times
  • Electrical: 300,000 times
• Net weight: 100 grams
• Ingress protection: IP65

Features:

• Limit switch of double circuit type
• Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
• Small volume, water-proof and oil-proof construction
• Built-in basic switch with double spring mechanism, longer mechanical life
• Smooth operation with greater OT
• Easy-to-wire opening circuit design
• Wide varity of actuators, easy to use
