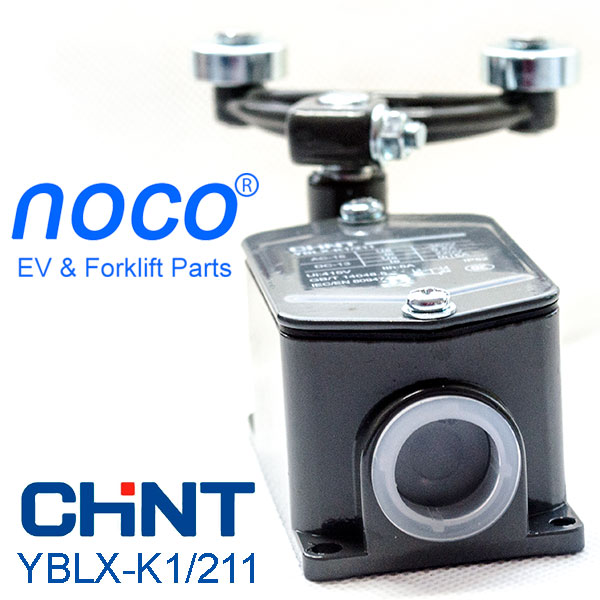

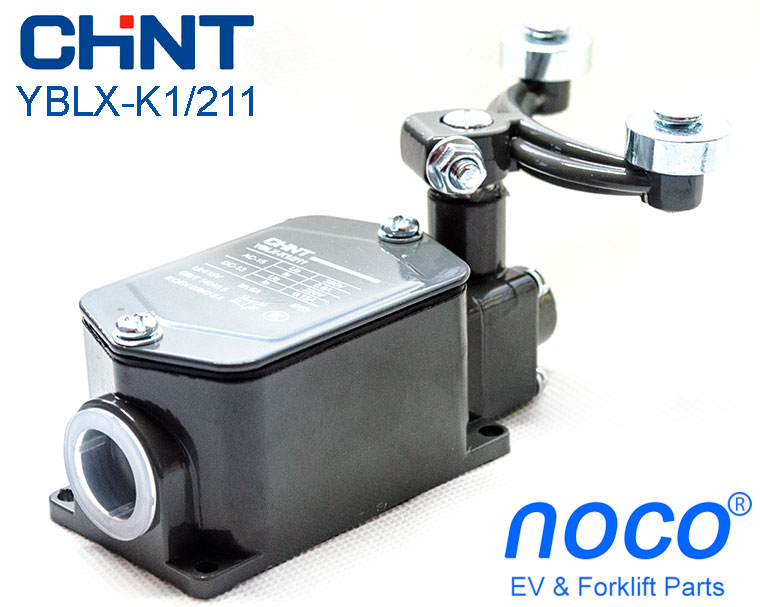

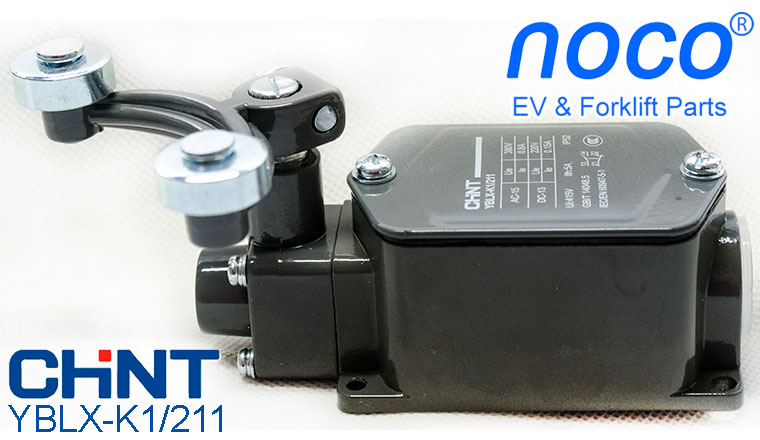

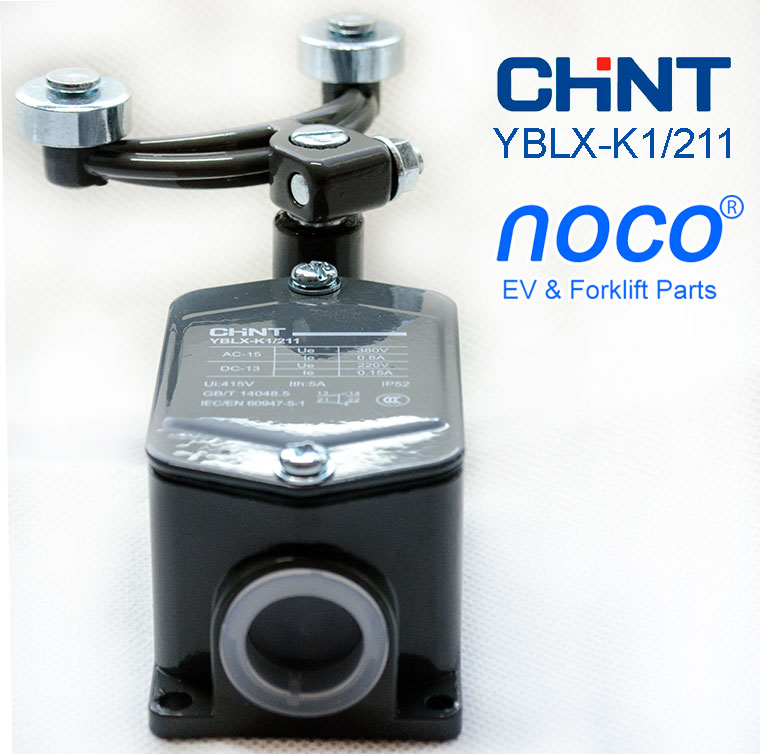

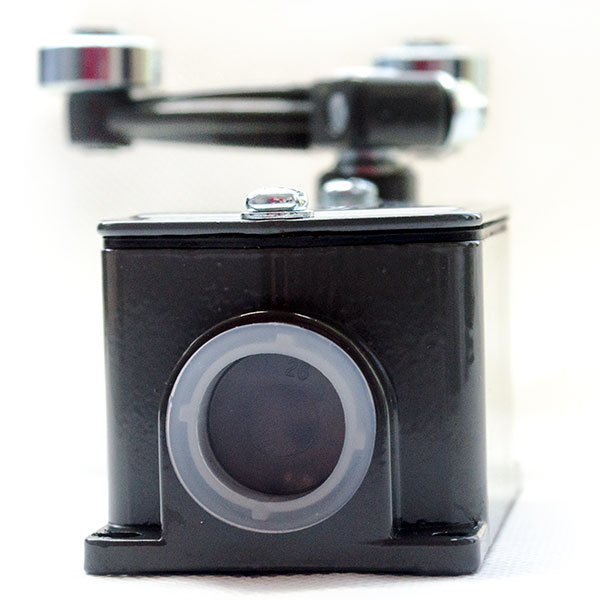

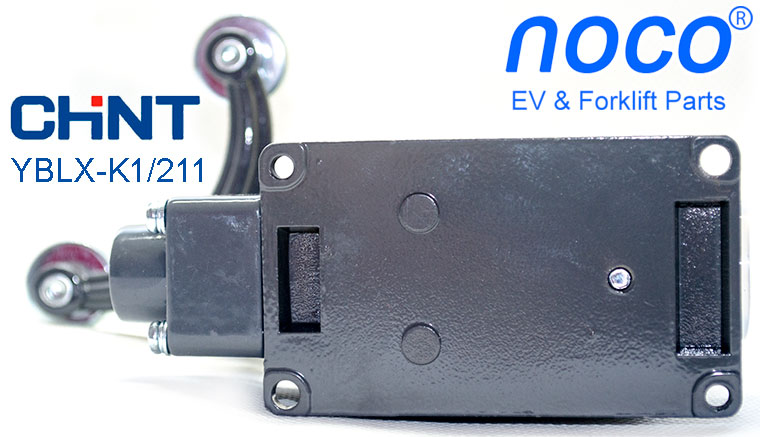

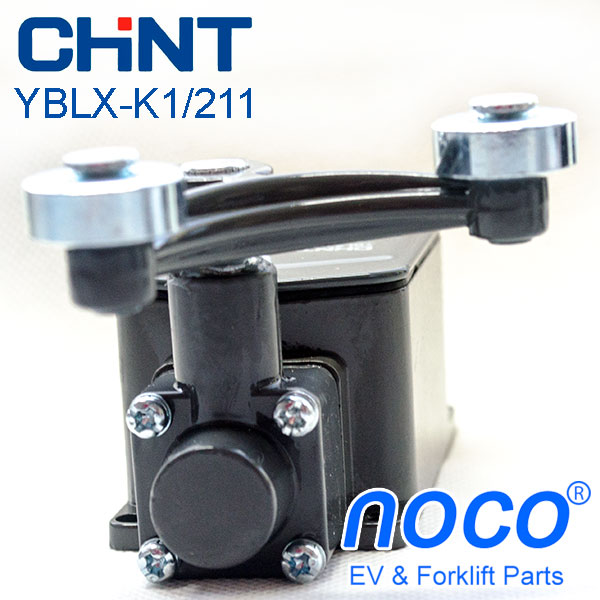

CHINT Travel Switch, Model YBLX-K1/211

Two Rollers type, one normal open + one normal close

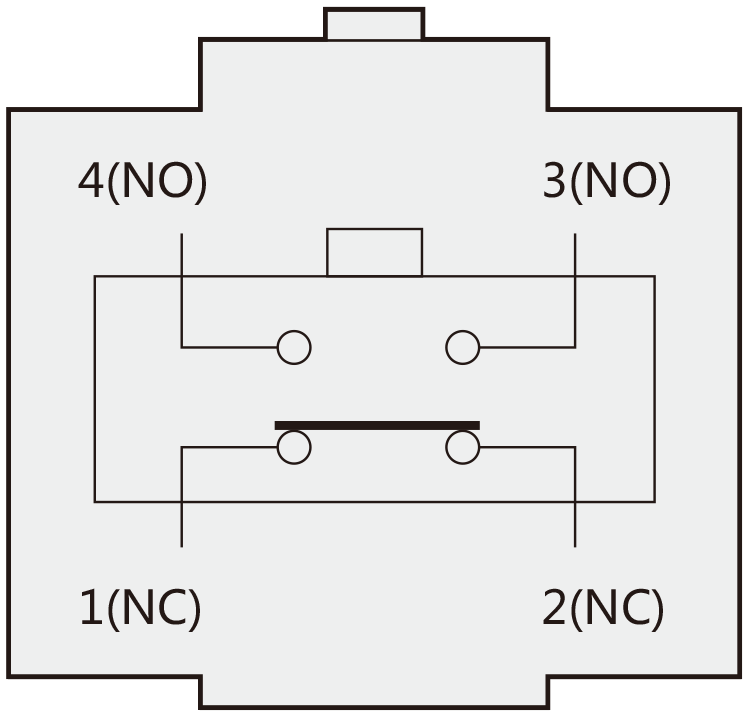

Wiring Diagram

Description:

Complying to standard IEC60947-5-1, YBLX-K1 series travel switch is applicable to electric circuit of voltage:

• ≤ 380V 50/60Hz (AC Ue)
• ≤ 220V 50/60Hz (DC Ue)

and of working current:

• ≤ 5A (AC Ie)
• ≤ 0.15A (DC Ie)

YBLX-K1 travel switch is widely used in automatic electromechanical motion control:

• Direction changeover
• Speed limit
• Travel / procedure control
• Movement automation

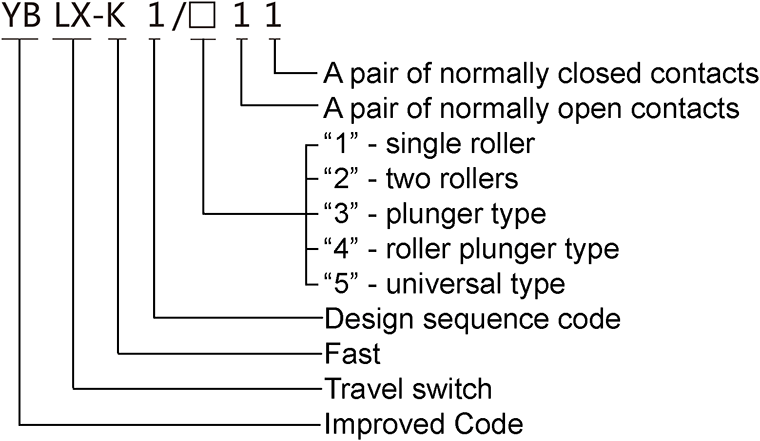

Codification:

Specifications:

• Model: YBLX-K1/211
• Type: Two Rollers type travel switch
• Ingress protection: IP52
• Conventional thermal current (Ith): 5A
• Rated voltage: 380V AC / 220V DC
• Rated control current: AC 5A / DC 0.15A
• Operation frequency: 20 times / minute
• On-load factor: 40%
• Life span:
  • Mechanical: 600,000 times
  • Electrical: 300,000 times
• Ambient temperature: -5°C - +40°C
• Relative humidity: ≤ 85%(20°C)
• Altitude: ≤ 2000 meters
• Voltage resistance:
  • Between terminals at same levels (1140V)
  • Between live parts and grounding (1890V)
  • Between terminal and dead metal parts (2500V)
• Maximum operating force (max OF): 20N
• Maximum operating range ( max PT): 70°

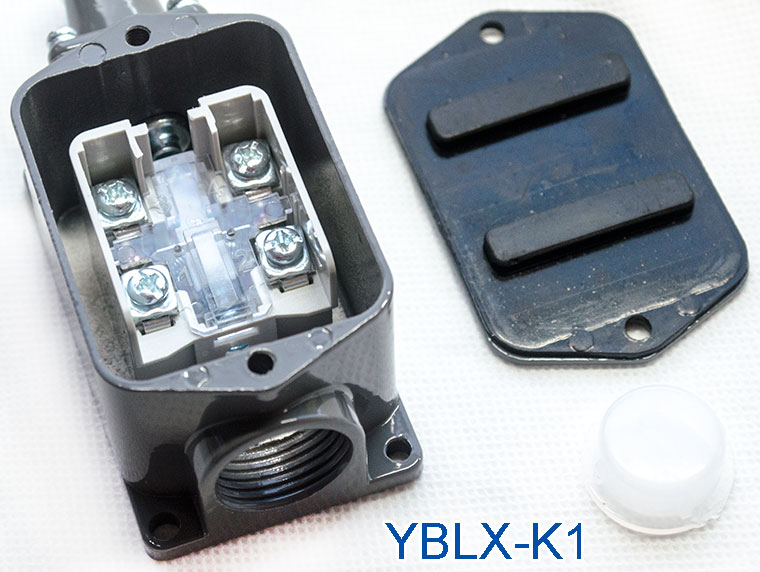

Switch structure:

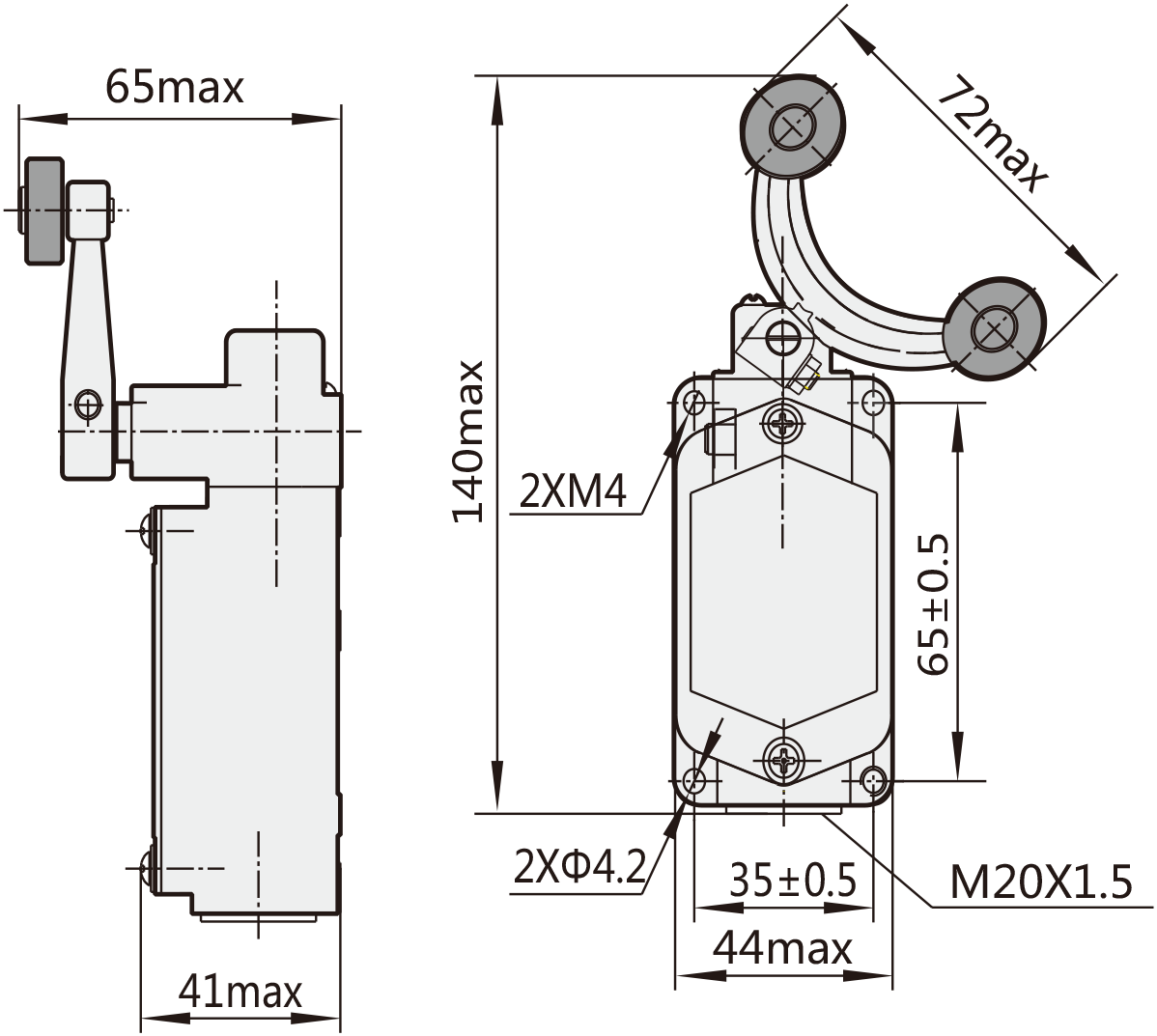

Dimensions:

Other YBLX-K1 travel switch models are available:

• Single roller type: YBLX-K1/111
• Plunger type: YBLX-K1/311
• Roller plunger type: YBLX-K1/411
• Universal type: YBLX-K1/511
