CURTIS AC Controller SPYGLASS

Model: 840R015RFBA101N

CURTIS meter 840R015RFBA101N is fully compatible with 840R015RSNA101O, 840R015RSNA101N and 840R015RFBA101O.

Overview

CURTIS Model 840 displays various system parameters, such as battery state-ofcharge, operating hours or maintenance status from a CURTIS motor controller or other serial communication source.

Mating with CURTIS 1232 / 1234 / 1236 / 1238 (including "E" series) AC controllers' SPYGLASS, CURTIS Model 840 is ideal for use in material handling vehicles such as pallet trucks, walkies, stackers and order pickers as well as other equipment with a need to display data using a dedicated uni-directional asynchronous serial signal.

For more details, please see the 840 Meter Datasheet (PDF format).

Specifications

• Manufacturer: CURTIS
• Model: 840R015RFBA101N, alternative replacement for
  • CURTIS 840R015RSNA101O
  • CURTIS 840R015RSNA101N
  • CURTIS 840R015RFBA101O
• Operating Voltage (Volts): 12VDC
• Enclosure Protection: IP65 (Face), IP40 (Rear)
• Housing: R (Round)
• Operating Temperature Range: -10°C to +70°C (Standard Model); -40°C to +70°C (Freezer Model)
• Shock & Vibration: Meets SAE J 1378 (Jul 98)
• Notice: installation kit & Molex 8-Pin connector (with plated terminals) are included.

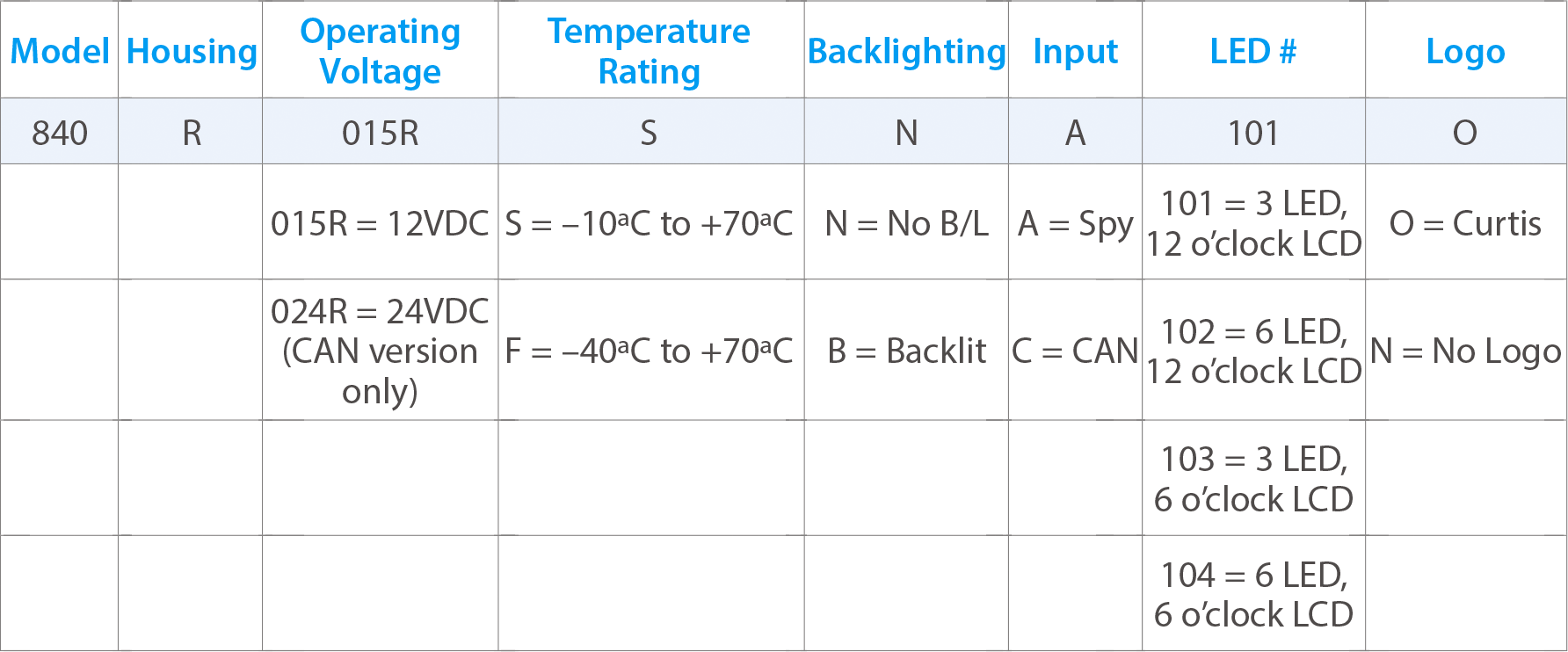

Encodement:

Model 840 features include:

• Attractive, easy-to-read, 8 character dot matrix Liquid Crystal Display enhances the look of any vehicle.
• Two display versions available:
  • Three LEDs: Green to indicate that hour meter is being displayed; Amber to indicate that battery state-of-charge is being displayed; and Red to indicate that a fault has occurred.
  • Six LEDs: Five Green to indicate battery state-of-charge; and one Red to indicate that a fault has occurred.
• Standard models display hours of use, battery state-of-charge and messages from a CURTIS motor controller.
• Interfaces directly to CURTIS motor controllers and displays various system parameters.
• Molded-in rear Molex style connector provides a low-cost, rugged and reliable installation.
• Front sealed (IP65) for use in harsh environments.
