Two-Jaw & Three-Jaw Hydraulic Gear Puller

Integra-unit design, manual operation

Wheel pulling separator / bearing puller / sleeve extractor

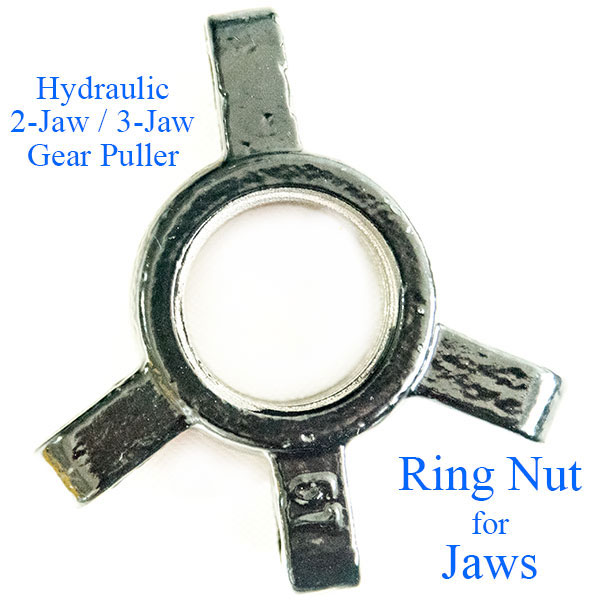

Ring Nut With Bracket

2-Jaw & 3-Jaw

The JH series integra-unit hydraulic gear puller delivers an excellent performance in all kinds of mechanical extraction works.

The JH series gear puller is designed to pull items such as bearings, bushings, wheels, gears, pulleys, and chucks from shafts. The jaws can grip the object from the inside or outside, whichever offers a better grip. The piston will push on the central shaft while the jaws pull away. This will remove the item from the shaft by pulling it straight out evenly, without hammering or binding from pulling at an angle.

• pump shaft / impeller separating
• automotive / engine wheel removing
• bearing puller
• Etc.

KEY FEATURES

• Model:
  • JH-5T: 5-Ton hydraulic gear puller
  • JH-10T: 10-Ton hydraulic gear puller
  • JH-15T: 15-Ton hydraulic gear puller
  • JH-20T: 20-Ton hydraulic gear puller
  • JH-30T: 30-Ton hydraulic gear puller
  • JH-50T: 50-Ton hydraulic gear puller
• Reversible jaws for pulling inside or outside. Use with 2 or 3 Jaws. Pump head can be rotated 360°.
• Manual oil pressure pump tube, easy to use
• Rugged engineering plastic box. Due to the heavy weight of JH-30T and JH-50T, no plastic box is provided for these two gear puller models.
• Package content:
  • 1 hydraulic pump
  • 1 puller sleeve
  • 1 handle
  • 3 jaws
  • 6 bolt / washer / nut sets
  • 6 connector plates
• Net weight:
  • JH-5T: 7.4 kg
  • JH-10T: 11.0 kg
  • JH-15T: 12.3 kg
  • JH-20T: 16.3 KG
  • JH-30T: 25.5 kg
  • JH-50T: 28.7 kg

1 / 4

2 / 4

3 / 4

4 / 4

Please contact us for payment details: [email protected]

The JH series two-jaw & three-jaw integra-unit hydraulic gear puller delivers an excellent performance in all kinds of mechanical extraction works.

The JH series gear puller is designed to pull items such as bearings, bushings, wheels, gears, pulleys, and chucks from shafts. The jaws can grip the object from the inside or outside, whichever offers a better grip. The piston will push on the central shaft while the jaws pull away. This will remove the item from the shaft by pulling it straight out evenly, without hammering or binding from pulling at an angle.

• pump shaft / impeller separating
• automotive / engine wheel pulling separator
• bearing puller
• sleeve extractor
• Etc.

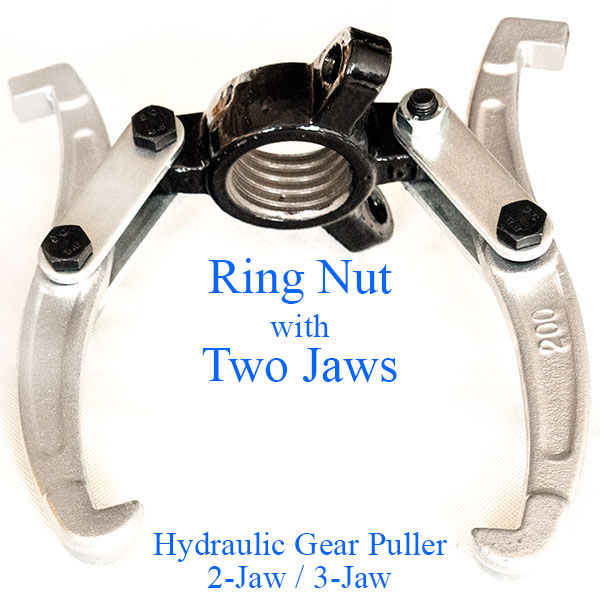

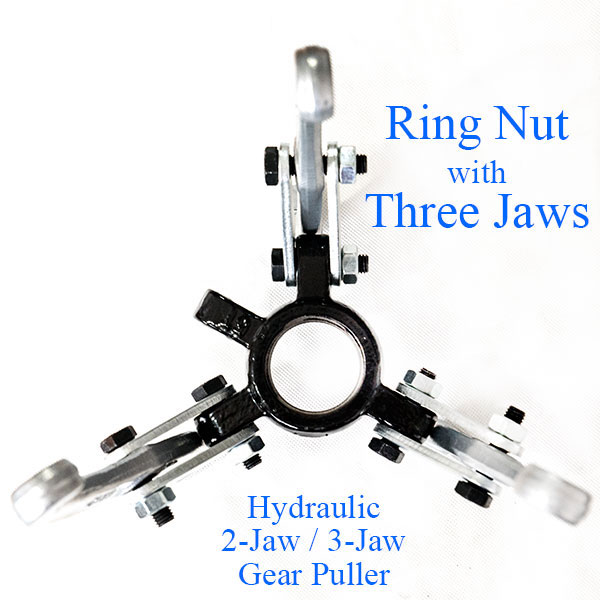

Ring Nut With Bracket, 2-Jaw / 3-Jaw

KEY FEATURES

• Model:
  • JH-5T: 5-Ton hydraulic gear puller
  • JH-10T: 10-Ton hydraulic gear puller
  • JH-15T: 15-Ton hydraulic gear puller
  • JH-20T: 20-Ton hydraulic gear puller
  • JH-30T: 30-Ton hydraulic gear puller
  • JH-50T: 50-Ton hydraulic gear puller
• Reversible jaws for pulling inside or outside. Use with 2 or 3 Jaws. Pump head can be rotated 360°.
• Manual oil pressure pump tube, easy to use
• Rugged engineering plastic box. Due to the heavy weight of JH-30T and JH-50T, no plastic box is provided for these two gear puller models.
• Package content:
  • 1 hydraulic pump
  • 1 puller sleeve
  • 1 handle
  • 3 jaws
  • 6 bolt / washer / nut sets
  • 6 connector plates
• Net weight:
  • JH-5T: 7.4 kg
  • JH-10T: 11.0 kg
  • JH-15T: 12.3 kg
  • JH-20T: 16.3 KG
  • JH-30T: 25.5 kg
  • JH-50T: 28.7 kg
