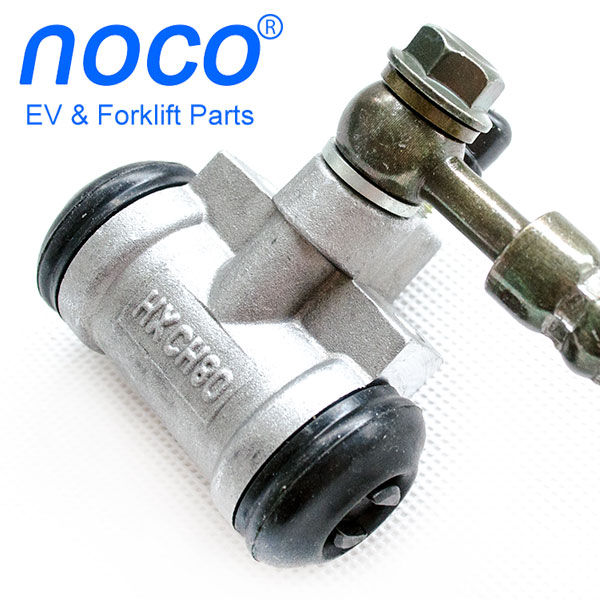

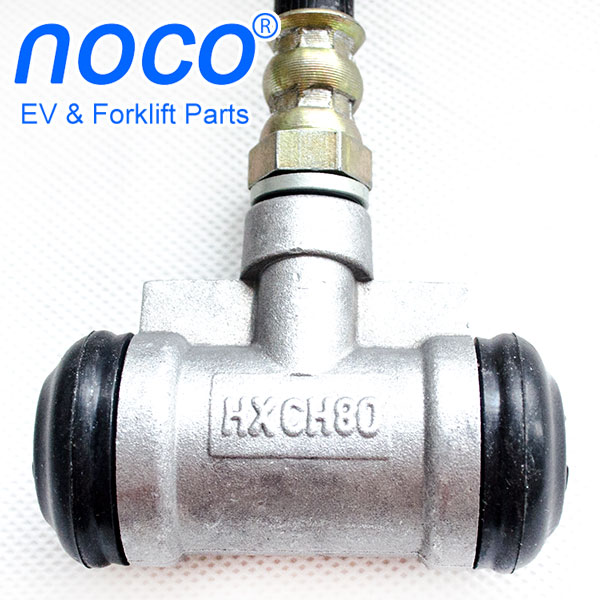

5/8" Drum Brake Wheel Cylinder

15.88 brakeware, golf cart & utility vehicle brake cylinder

The 15.88 cylinder is 5/8" drum brake wheel cylinder which can be a direct replacement of cylinders of same specification.

Features:

• Model: HXCH80
• Bore size: 5/8" / 15.88 mm
• Brake fluid inlet thread: 10.0 mm (M10) fine teeth
• Cylinder body material: aluminum
• Net weight: 125 grams
• Installation kit (2 bolts and 2 spring washers) included
• High-quality rubber cups and boots for long-lasting performance
• Wheel cylinder bores are surface-tested to ensure an optimum sealing surface for the pressure cups

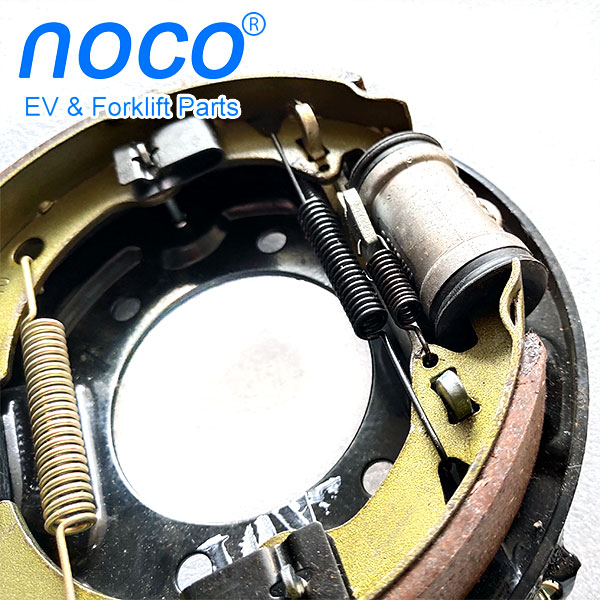

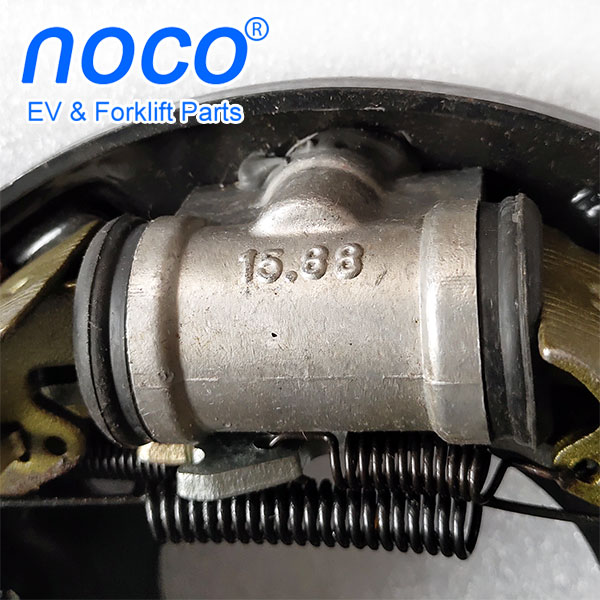

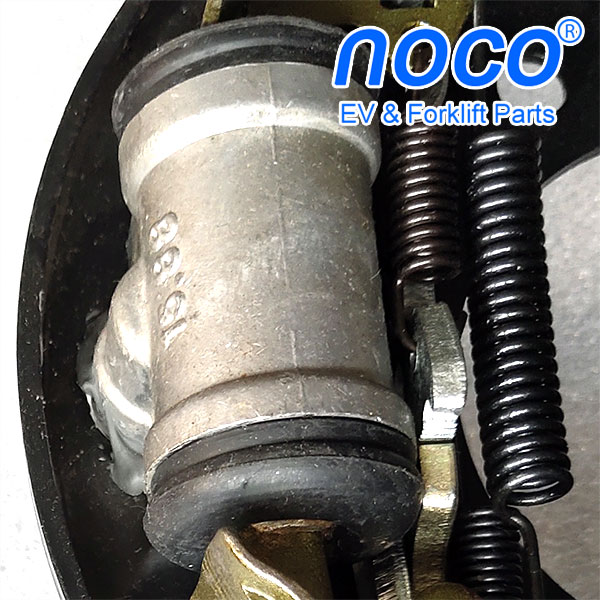

Typical application: golf cart hydraulic drum brake of Ø160 mm.

Dimensions (unit: mm):

There are many brake cylinders (master cylinder & wheel cylinder) of variable sizes for different vehicles. If you need a cylinder of specific model, or the parts attached to the brake (for example tubes, banjo bolts, etc.), please contact us.

5/8" Drum Brake Wheel Cylinder

15.88 brakeware, golf cart & utility vehicle brake cylinder

The 15.88 cylinder is 5/8" drum brake wheel cylinder which can be a direct replacement of cylinders of same specification.

Dimensions (unit: mm)

Features:

• Model: HXCH80
• Bore size: 5/8" / 15.88 mm
• Brake fluid inlet thread: 10.0 mm (M10) fine teeth
• Cylinder body material: aluminum
• Net weight: 125 grams
• High-quality rubber cups and boots for long-lasting performance
• Wheel cylinder bores are surface-tested to ensure an optimum sealing surface for the pressure cups

Typical application: golf cart hydraulic drum brake of Ø160 mm.

There are many brake cylinders (master cylinder & wheel cylinder) of variable sizes for different vehicles. If you need a cylinder of specific model, or the parts attached to the brake (for example tubes, banjo bolts, etc.), please contact us.
