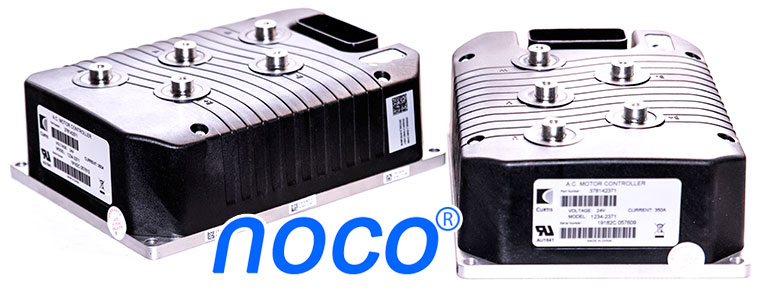

24V / 350A CURTIS AC Motor Controller

Core part for vehicle AC motor motion controlling

Overview:

CURTIS 1234 AC induction motor controllers deliver smooth power unlike any previous vehicle control system. They provide unprecedented flexibility and power through inclusion of a field-programmable logic controller embedded in a state-of-the-art motor controller.

The embedded logic controller runs a fully functional field-oriented AC motor control operating system (OS) that can be user-tailored via parameter modification. The OS also contains logic to execute OEMdeveloped software, called VCL, that can be used to enhance the controller capabilities beyond the basics.

VCL (Vehicle Control Language) is an innovative software programming language developed by CURTIS. Many electric vehicle functions are uniquely built into the VCL code, and additional functions can be OEM-controlled using VCL code. VCL opens new avenues of customization, product differentiation, and responsiveness to the market.

The CAN bus communications included in the 1234, as well as in many other CURTIS products, allow these AC induction motor controllers to be part of an efficient distributed system. Inputs and outputs can be optimally shared throughout the system, minimizing wiring and creating integrated functions that often reduce the cost of the system. CURTIS 1234 controllers are the ideal solution for traction, hoist, dual drive, and other motor drive and vehicle control needs.

The 1234 controllers are fully programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. The programmer provides diagnostic and test capability in addition to configuration flexibility.

Specifications:

• PWM operating frequency: 15 kHz
• Electrical isolation to heatsink (min.): 500 VAC
• PWM operating frequency: 10 kHz
• Maximum encoder frequency: 15 kHz
• Maximum controller output frequency: 300 Hz
• Heatsink overtemperature cutoff: linear cutback starts at 85°C; complete cutoff at 95°C
• Heatsink undertemperature cutoff: complete cutoff at -40°C

It is supposed that the CURTIS AC Controller need to be programmed before applying to a specific application. For the buyer without AC MOTOR CONTROLLER PROGRAMMING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1234 AC Motor Controller Datasheet before making your purchase.

The 1234 AC motor controllers have a set of parameters which is very complicate. If you need to modify any controller parameter, please send us a message with the list of parameters to be modified. There is no extra cost for reprogramming the controller.

Typical application: MIMA, XILIN (RUYI), HANGCHA, HELI tow tractor / forklift.

As a professional supplier, we possess OEM programs (controller settings) of certain utility vehicles and forklifts. Buyers may contact us and send us the vehicle (forklift) information (manufacturer, model, year of production, etc.), for knowing if we can provide the controller with its OEM program. This 1234-2371 can also be programmed by CURTIS CURTIS Model 1313-4331 Handheld Programmer or CURTIS 1314 PC programming station. There is no extra cost for reprogramming the controller.

Key Features:

• CURTIS Model: 1234-2371
• Nominal input voltage: 24V
• 2 Minute RMS Current Rating (amps): 350
• 2 Minute RMS Power Rating (kVA): 19.6
• MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
• MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
• All low power connections are made through a single 35-pin AMPSEAL connector
• Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, etc.
• Operating Ambient Temperature Range: -40°C to 50°C
• Internal Heatsink Operating Temperature Range: -40°C to 95°C
• Storage Ambient Temperature Range: -40°C to 95°C
• Package environmental rating: IP65
• Dimensions: L212 x W155 x H75 mm
• Net Weight: 2.84 kg
• Meets or Complies with relevant US and International Regulations:
  • EMC: Designed to the requirements of EN12895
  • Safety: Designed to the requirements of EN1175
  • IP65 Rated per IEC 529 UL recognized
  • Regulatory compliance of the complete vehicle system with the controller installed is the responsibility of the vehicle OEM.

Features also include:

• Advanced functionality, compact power
  • High frequency, silent operation across the 0-300Hz stator frequency range.
  • Models available for 200-350A output at 24-24V system voltages. These are true 2 minute RMS ratings, not short duration ‘boost’ ratings.
  • Powerful operating system allows parallel processing of vehicle control tasks, motor control tasks and user configurable programmable logic.
  • Advanced Pulse Width Modulation techniques produce low motor harmonics, low torque ripple and minimized heating losses, resulting in high efficiency.
• Unmatched Flexibility
  • Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
  • Programmable for either traction or pump applications.
  • Field upgradeable software.
  • Integrated Battery state-of-charge algorithm and hour meter.
  • Multi-ModeTM provides user-selectable vehicle operating profiles.
  • Fully-featured generic software and VCL for typical Warehouse Truck applications is included.
  • Comprehensive programming options and VCL allow other applications to be easily supported.
  • CURTIS hand-held or PC Windows programming tools provide easy programming and powerful system diagnostic tools.
  • Integrated status LED provides instant diagnostic indication.
• Robust Safety and Reliability
  • Insulated Metal Substrate power base provides superior heat transfer for increased reliability.
  • Fail-Safe power component design.
  • Redundant hardware watchdog timers.
  • Reverse polarity protection on battery connections.
  • Short circuit protection on all output drivers.
  • Thermal cutback, warning, and automatic shutdown provide protection to motor and controller.
  • Rugged sealed housing and connectors meet IP65 environmental sealing standards for use in harsh environments.
