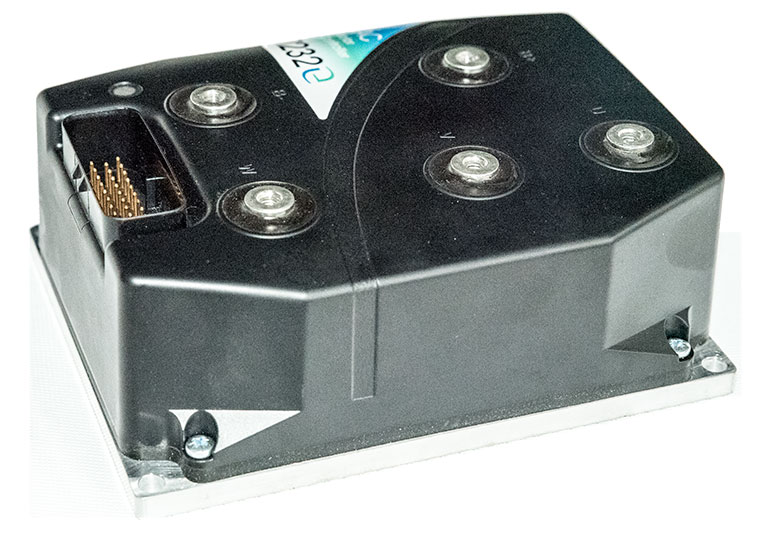

CURTIS AC Motor Controller 1232E-2321

Programmable, 24V / 250A, Forklift & Pallet Truck Driving Motor Controller

This controller 1232E-2321 is not an original CURTIS product. It can be an alternative replacement of 24V CURTIS 1232 (1232-2201, 1232-2202, etc.) or 1232E controller (1232E-2121, 1232E-2222, 1232E-2321, etc.)

By default, the controller 1232E-2321 will be sent with CURTIS controller factory setting. If you need the controller to be reprogrammed for a specific vehicle model, before placing your order, please send us a message (email address [email protected] or [email protected]) for confirming if the controller program is available.

Before installing the new controller, please perform a complete examination of your motor control system, including batteries, motor, throttle, solenoid and wiring. Any bad part in the motor control system could lead the malfunction of new controller.

1232E AC controllers are used by many utility vehicle makers, MIMA, HELI, HANGCHA, NOBLELIFT, EP, TCM, LIFTSTAR, XILIN, HYSTER, etc.

Overview:

The Curtis model 1232E provides advanced control of AC induction motors performing on-vehicle traction drive or hydraulic pump duties and offers the highest levels of functional safety.

Specifications:

• PWM operating frequency: 15 kHz
• Electrical isolation to heatsink (min.): 500 VAC
• PWM operating frequency: 10 kHz
• Maximum encoder frequency: 15 kHz
• Maximum controller output frequency: 300 Hz
• Heatsink overtemperature cutoff: linear cutback starts at 85°C; complete cutoff at 95°C
• Heatsink undertemperature cutoff: complete cutoff at -40°C

The ‘E’ difference: a significant enhancement to the CURTIS AC family, The ‘E’ models utilize a powerful dual-microprocessor logic architecture to provide improved performance and surpass the requirements of the latest international functional safety standards. CURTIS controllers 1232E provide advanced control of AC induction motors performing on-vehicle traction drive or hydraulic pump duties. They offer vehicle developers a highly cost-effective combination of power, performance and functionality. Designed primarily for use on small to medium material handling vehicles such as counterbalance or warehouse trucks. The Model 1232E is equally suitable for industrial utility vehicles.

It is supposed that the CURTIS AC Controller need to be programmed before applying to a specific application. For the buyer without AC MOTOR CONTROLLER PROGRAMMING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1232E AC Motor Controller Datasheet before making your purchase.

As a professional supplier, we possess OEM programs (controller settings) of certain utility vehicles and forklifts. Buyers may contact us and send us the vehicle (forklift) information (manufacturer, model, year of production, etc.), for knowing if we can provide the controller with its OEM program.

According to the vehicle type and buyer's requirement, we may reprogram the controller 1232E-2321 with CURTIS CURTIS Model 1313-4331 Handheld Programmer or CURTIS 1314 PC programming station. There is no extra cost for reprogramming the controller.

Application:

The Curtis Model 1232E is intended for use as the traction controller on class 3 material handling "walkies" and other small industrial trucks. It is equally suitable as the pump controller for auxiliary hydraulic functions on larger industrial vehicles.

Example: controllers 1232E-2321 / 1232E-2121 are used as driving motor controller of Noblelift pallet truck PT20. For more controller setting details, click here to download the controller parameter list (PDF format), controller program for Noblelift PT20. Attention, this controller program has steering function (working with an EPS controller 1220-2201). Some PT20 pallet trucks have not an EPS controller. The controller program is different for these trucks. For more details, please contact us.

Two 24V 1232E controller models are often used by forklift and pallet truck makers:

• 1232E-2121: 24V / 180A
• 1232E-2222: 24V / 200A
• 1232E-2321: 24V / 250A; this model can also be reprogrammed for replacing a 1232E-2121 or a 1232E-2222

Product package options:

It is recommended that a CURTIS OEM level programmer should be equipped for applying the CURTIS AC controller in your project. We may provide the programming tools:

1. CURTIS handheld programmer 1313-4331
2. CURTIS PC station programmer 1314-4402
3. programming cable

1313-4331	1314-4402	Programming Cable

Key Features:

• CURTIS Model: 1232E-2321
• Nominal input voltage: 24V
• 2 Minute RMS Current Rating (amps): 250
• S2-60 Minute RMS Current Rating (amps): 125
• MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
• MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
• All low power connections are made through a single 35-pin AMPSEAL connector
• Throttle Type:
  • Type 1: 2-wire rheostat, 5kΩ–0 input
  • Type 2: single-ended 3-wire 1kΩ–10kΩ potentiometer, or 0–5V voltage source
  • Type 3: 2-wire rheostat, 0–5kΩ input
  • Type 4: wigwag 3-wire 1kΩ–10kΩ potentiometer, or 0–5V voltage source
  • Type 5: VCL input (VCL_Throttle)
• Operating Ambient Temperature Range: -40°C to 50°C
• Internal Heatsink Operating Temperature Range: -40°C to 95°C
• Storage Ambient Temperature Range: -40°C to 95°C
• Package environmental rating: IP65
• Dimensions: L140 × W180 × H71 mm mm
• Net Weight: 1.70 kg

Features Include:

• Increased Performance, Improved functionality
  • Higher performance form, fit and functional replacements for earlier Curtis Model 1232 AC controllers.
  • CE marked as a programmable safety device under EN ISO 13849-1.
  • Models available from 175A–250A output at 24–80V system voltages.
  • Enhanced 64MHz micro and additional FLASH memory doubles the available VCL code space and provides more than twice the VCL execution speed.
  • Six additional VCL-configurable CAN "mailboxes" significantly increases CAN master capabilities.
  • Advanced Pulse Width Modulation techniques produce low motor harmonics, low torque ripple and minimized heating losses, resulting in high efficiency.
• Unmatched Flexibility
  • Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
  • Programmable for either traction or pump applications.
  • Field upgradeable software.
  • Integrated Battery state-of-charge algorithm and hour meter.
  • Fully-featured generic software and VCL for typical Warehouse Truck applications is included.
  • Comprehensive programming options and VCL allow other applications to be easily supported.
  • CURTIS hand-held or PC Windows programming tools provide easy programming and powerful system diagnostic tools.
  • Integrated status LED provides instant diagnostic indication.
• Robust Safety and Reliability
  • Dual Microprocessor architecture cross-checks critical circuits, logic, and software functions to ensure the highest possible functional safety performance level is achieved.
  • Insulated Metal Substrate power base provides superior heat transfer for increased reliability.
  • Fail-Safe power component design.
  • Reverse polarity protection on battery connections.
  • Short circuit protection on all output drivers.
  • Thermal cutback, warning, and automatic shutdown provide protection to motor and controller.
  • Rugged sealed housing and connectors meet IP65 environmental sealing standards for use in harsh environments.
• Meets or complies with relevant US and International Regulations
  • EMC: Designed to the requirements of EN12895.
  • Safety: Designed to the requirements of:
    • EN1175-1:1998+A1:2010
    • EN (ISO) 13849-1
  • IP65 Rated per IEC 60529.
  • UL recognized per UL583.
