CURTIS Series Winding Motor Speed Controller

Model: 1204M-5305, 36-48V / 325A, With Mating Connectors

Specifications

• 1204M-5305 is the new upgraded version of 1204M-5305 DC series motor controller, with new J5 terminal (reverse signal output / main contactor coil driver), and supporting more throttle types
• full controlling set for 36V or 48V DC Series Motor
• proposed motor power rate: 3.3 - 4.6 kW
• simple motor connecting labels on assemblage
• easy installation with components mounted on a heat-sink aluminium alloy installation plate
• foot pedal accelerator (throttle), pre-wired for assemblage
• simple plug-in connctors (1204M / 05M Controller Assemblage Connectors' Definition (PDF format))
• Easy to install (1204M / 05M Controller Assemblage Installation Instruction (PDF format))
• reinforced carton package, safe for international delivery

Mating Connectors & Installation Kit

Overview:

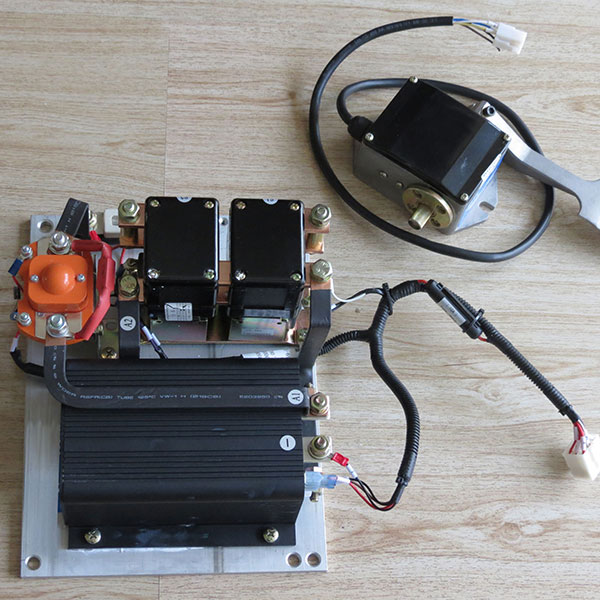

This 1204M-5305 controller assemblage is a completed electric vehicle DC Series Motor control system. The assemblage includes:

• controller
• main contactor
• forward / reverse contactor
• fuses
• wiring
• heat-sink aluminium alloy installation plate
• foot pedal accelerator (throttle)
• plug-in connectors
• installation (bolts, washes and nuts) kit Included

CURTIS 1204M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1204M controllers are updated versions of the popular 1204 controllers, with the added functionality of being programmable—via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

CURTIS 1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

For more installtion details, please take reference with the 1204M / 05M Controller Assemblage Connectors' Definition (PDF format) and 1204M / 05M Controller Assemblage Installation Instruction (PDF format).

Wiring Diagram:

In this assemblage, the J5 terminal of new 1204M controllers is not activated. The controller wiring is same to the old 1204M controllers without J5 terminal.


Click here to download the diagram (PDF format)

For more informaion of J5 terminal and the Rev Input / Main Driver functions, please see the page 7 and 8 of 1204M / 1205M controller manual (PDF format).

Key Features:

• CURTIS Model: 1204M-5305
  • Norminal Battery Voltage (Volts): 36V or 48V
  • 5 Second Boost Current Rating (amps): 358
  • 2 Minute Current Rating (amps): 325
  • 1 Hour Current Rating (amps): 140
  • Plug Braking (A2 Busbar): Yes
• Assemblage Net Weight: 7.9 kg
• Package Weight: 10.5 kg (including the foot pedal throttle)

Features Include:

• High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
• Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
• Compatible with either a two-wire potentiometer or a voltage throttle.
• Throttle fault protection circuitry disables controller if throttle wires become open.
• High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
• Plug braking diode internal to controller.
• Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
• Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
• Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
• Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

Installation Dimensions:
