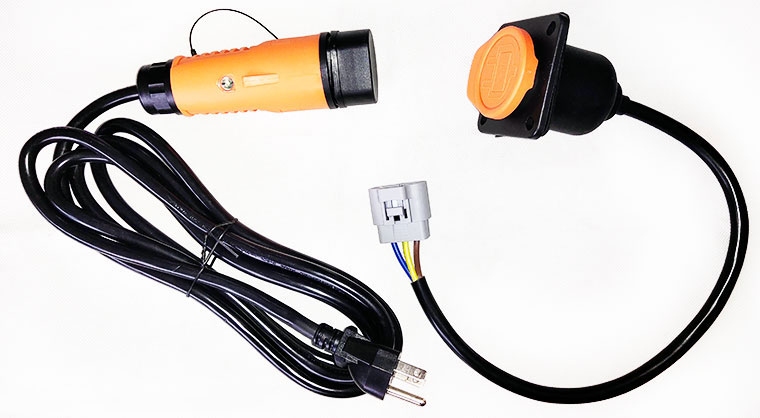

Battery Charger Cable Suite, Ready For Connection

14 AWG (2.0 mm²) wire, plug + 2.5 meters cable, socket + 0.5 meter cable

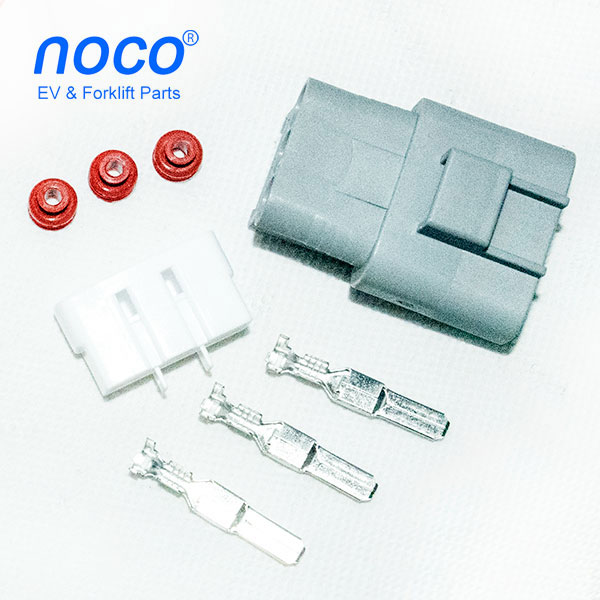

Mating Connector (Inside Charger)

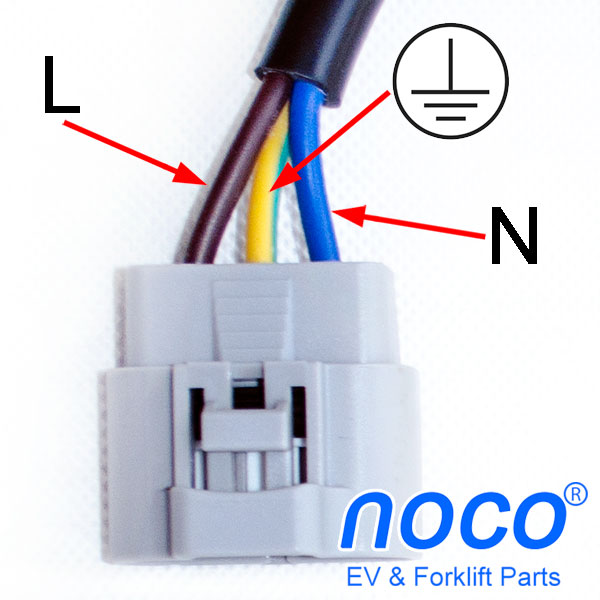

Wiring Of Mating Connector

Applicable countries & regions:

• USA, Canada & Mexico
• British Virgin Islands, Costa Rica, Cuba, Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Jamaica, Nicaragua, Panama, Puerto Rico, Trinidad and Tobago, United States Virgin Islands, Venezuela, etc.
• Japan
• Taiwan
• American Samoa, Bahamas, Barbados, Bermuda, Colombia, Palau, Turks and Caicos Islands

Typical application: AC input connecting device for electric vehicle battery charger & charging station.

The YEEDA Y-30 connectors listed in this page do not have an internal microswitch.

We supply also:

• Y-30 AC Connector (110V AC / 220V AC) with an internal microswitch
• Y-30 DC Connector (12V - 72V DC) with an internal microswitch

Y-30 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger AC / DC input connectors. Its "power on" LED indicator presents visual signal to users, and make the battery power charging application easier to install and connect / disconnect. For more details, please see the datasheet of YEEDA connector Y-30 (PDF Format) and Dimensions Diagram (PDF Format).

Key features

• Brand: YEEDA
• Model: Y-30 power connector, plug & socket, cabled
• 3-Pole DC connector with charging cable:
  • 3-Pole: L, N and GND. Wiring recommendation: the terminal "L" should be connected to the unearthed conductive part of AC main supply, the terminal "N" should be connected to the earthed conductive part of AC main supply, and "GND" should be connected to the safety ground of battery charger.
  • Cable type: IEC 53 (RVV), 3 x 2.0 mm²
  • Cable length:
    • Socket: 50 cm ± 2 cm
    • Plug: 250 cm ± 2 cm
• Nominal Current Rating: 16A
• Working Voltage: 110V (100-120V AC)
• IP54 Waterproof Design

Dimensions:

Figure 1- Plug With 250cm Cable

Figure 2 - Socket With 50cm Cable
