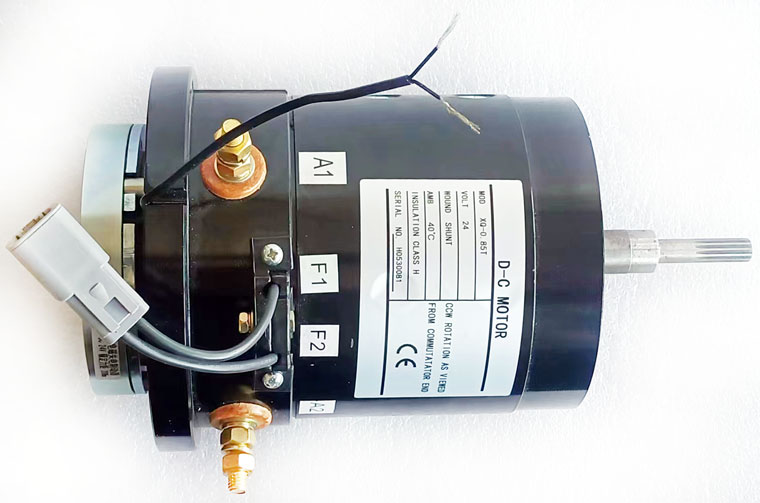

24V 0.8kW DC SepEx Motor

Motor Label

Mating Connector for Motor Field

Model: XQ-0.85T, electromagnetic brake option, compatible with Oerlikon motor

Specifications:

• Model: XQ-0.85T
• Nominal power rate: 0.85 kW
• Operating voltage: 24V
• Rated current: 45A
• Field current: 15A (min. field current: 6A)
• EM brake option: 20 N.m
• Spline:
  • Spline A: 13 teeth
  • Spline B: 11 teeth
• Exciting: separately excited (shunt type)
• Rated Speed：1399 rpm (max. speed: 3200 rpm)
• Rated Torque：5.6N.m
• Insulation: class H
• Net weight: 15.2 kg (with EM brake)
• Ingress protection: IP55 (after mating with reducer and EM brake)

Typical application:

• Scissor lift
• Articulating & telescopic boom lift
• Aerial work platform
• Etc.

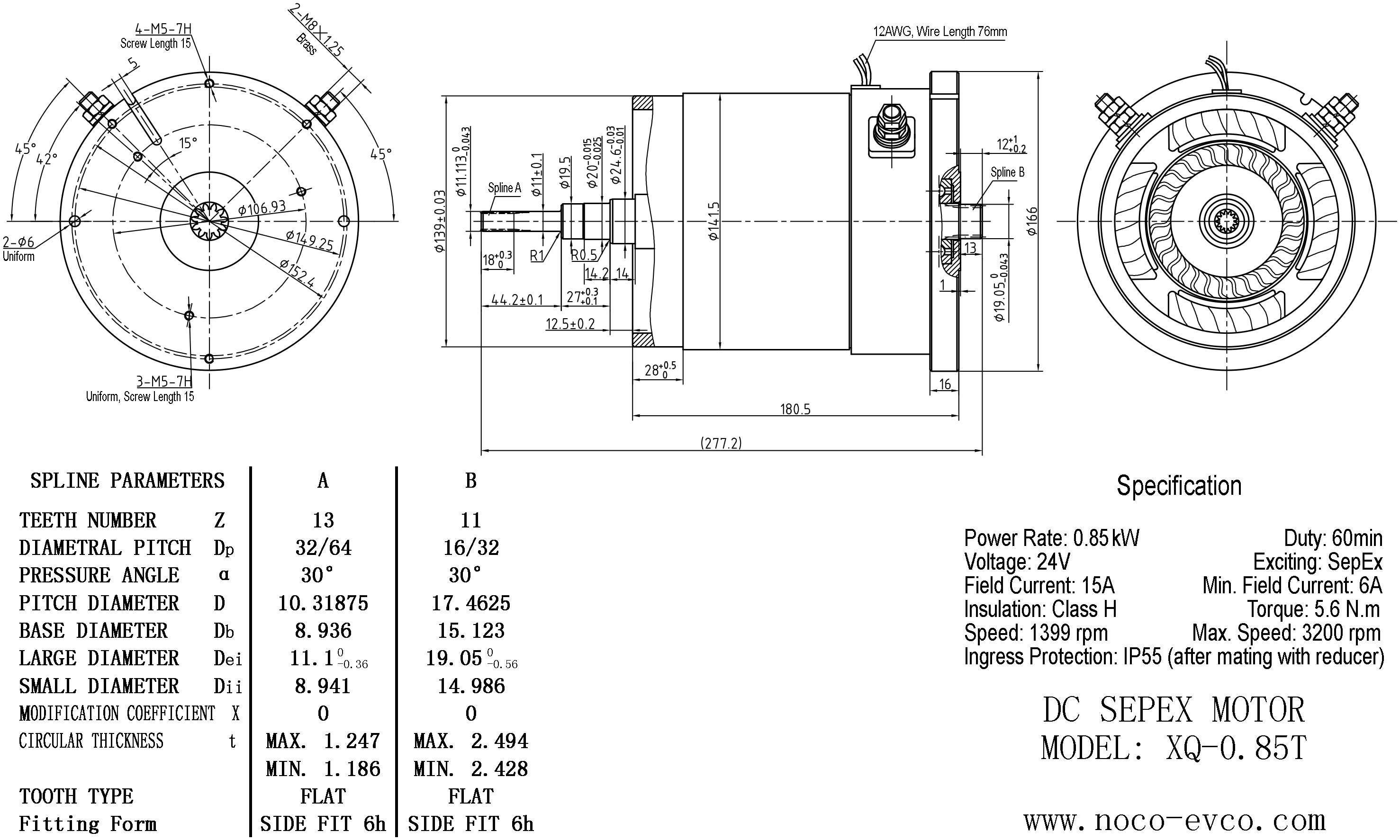

Diagram (without electromagnetic brake):

Diagram (with electromagnetic brake):

Mating connector for motor field:

Diagram (without electromagnetic brake):

Diagram (with electromagnetic brake):
