XILIN Pallet Truck CDD15 Mast Roller

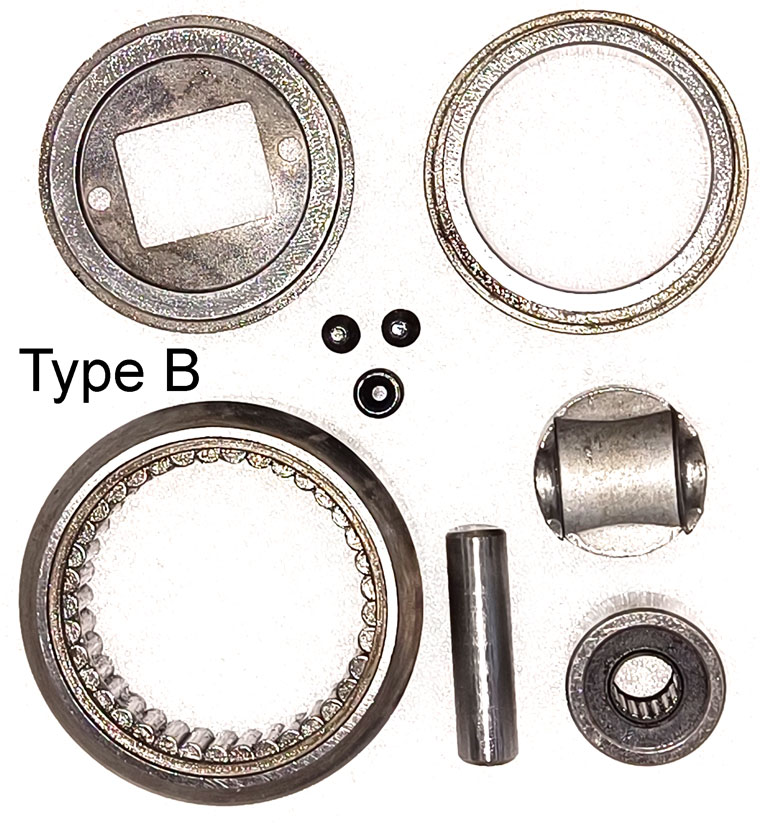

Roller bearing, with take-out wheel shaft design, 77.7x23, type B

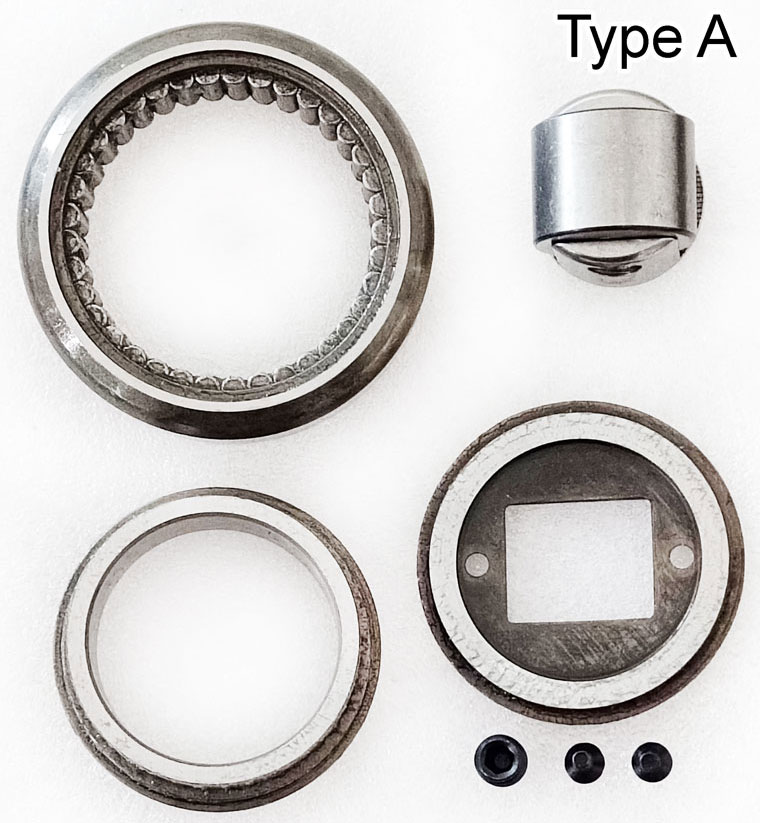

We supply also 77.7x23 mast roller, type A.

Mast bearings are used on forklifts and pallet trucks. They carry the forks (carriage) up the mast and they also enable the various stages of the mast to extend.

Used as CDD15 pallet truck mast guiding rollers, 77.7x23 mast bearings help the fork travelling smoothly and safely.

Specifications:

• Part name: 77.7x23 mast bearing (Type B)
• Typical application: XILIN CDD15Z
• Dimensions:
  • Outer diameter: 77.7mm
  • Width (thickness): 23mm
  • Bearing bore diameter: 46mm
• Net weight: 0.7kg

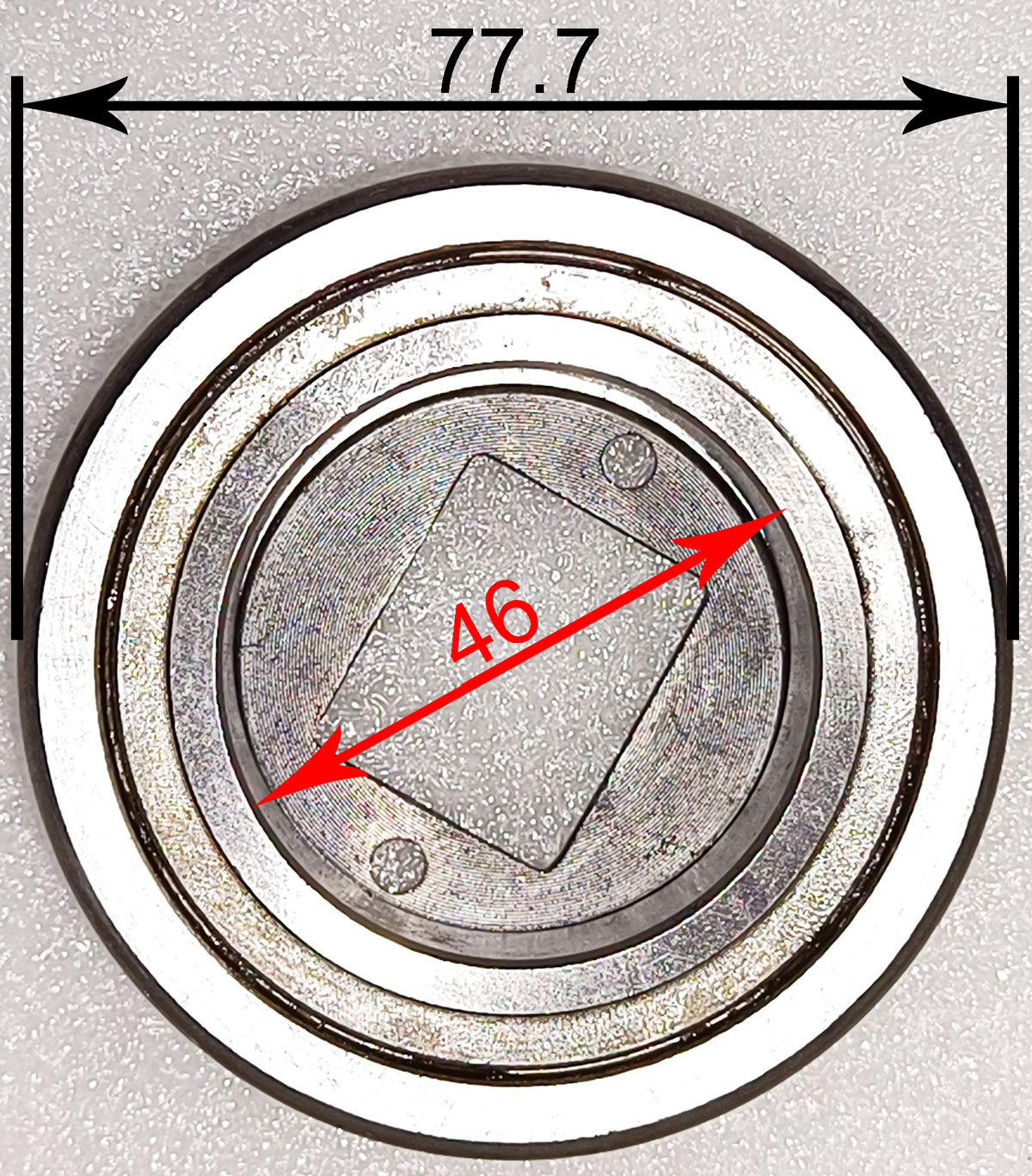

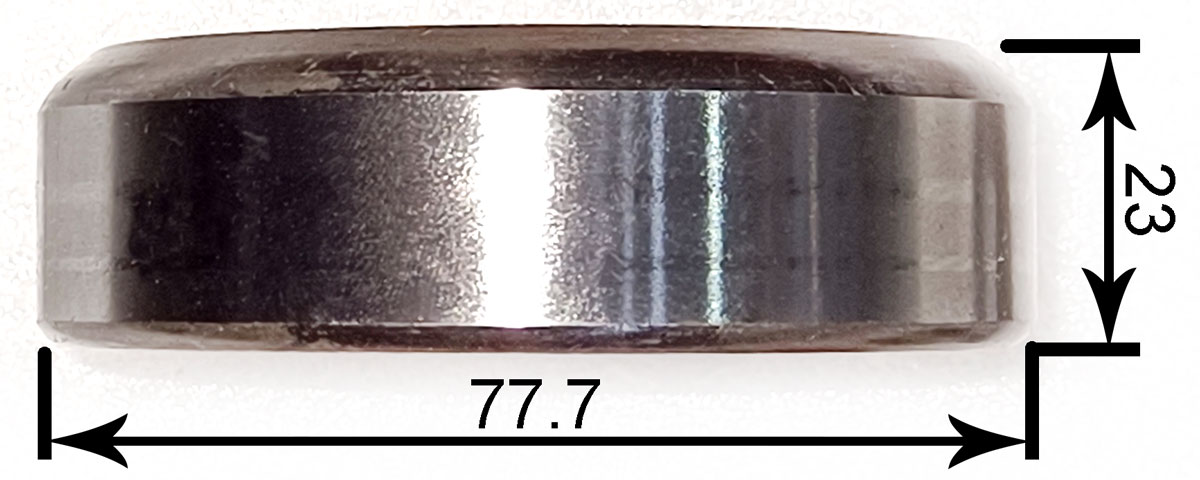

Dimensions (unit: mm):

Features:

• Thick Outer Ring: mast bearings operate at relatively low speeds. They travel along the rail as a track bearing (like a wheel) and consequently experience high loads. The outer ring (steel tyre) of a mast bearing is much thicker than a standard bearing, to enable this load to be transmitted.
• Compact Design: the components of the bearings are held together to form a compact "wheel".
• Support Heavy Duty Operation: with a solid and compact design, mast bearings work with repeated tasks of lifting / lowering manoeuvering of weighted load.
• Lubrification: the smoothy movement of rollers are assured by the well greased needle bearings.

We supply two types of 77.7x23 mast roller.
