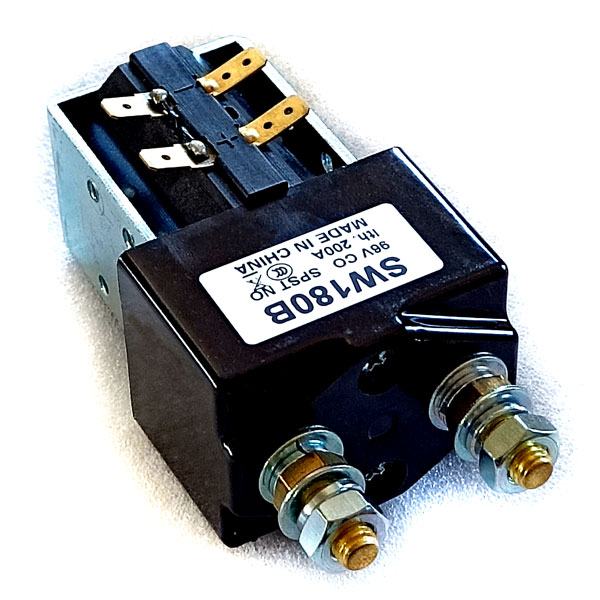

SW180 / SW180B SPST DC Contactor

Rated for 200A, 12-96VDC, CO (continuous load) / INT (intermittent load), NO (normally open)

Overview

SW180 / SW180B DC contactors have been designed for direct current loads, particularly for motors used on electric vehicles such as industrial trucks, airport tractors, and electric forklift, etc.

SW180 / SW180B DC contactors are used in both battery powered vehicles and power distribution systems. This contactor is rated 200A for resistive loads (Power System) and 150A for inductive/capacitive loads (electric motors).

Features:

• Model:
  • SW180: 200A DC contactor, without magnetic blowout, working voltage ≤ 36VDC
  • SW180B: 200A DC contactor, with magnetic blowout, working voltage ≥ 48VDC
• Voltage options:
  • 12VDC
  • 24VDC
  • 36VDC
  • 48VDC
  • 72VDC
  • 80VDC
  • 96VDC
  • More voltage options (5VDC, 40VDC, 60VDC, 84VDC, etc.) are available on request
• Load types:
  • CO: continuous load (typically used as main power switching contactor)
  • INT: intermittent load (used as forklift lifting contactor or periodical pump / ventilation / hydraulic device driving contactor)

We supply also the mounting bracket for SW180 / SW180B contactors:

• Top hat shape
• L shape

For more voltage or function options, please contact us for knowing more details of price and shipping delay.

Dimensions (unit mm, fully compatible with Albright SW180 / SW180B contactors)

We supply also Albright DC contactors:

• SW80-164L, 24V 125A heavy duty CO (continuous load) DC contactor
• SW80-1919L, 24V 125A CO (continuous load) waterproof DC contactor with JPT connector, alternative of SW80-1683L / SW80-1684L / SW80-113L (BT part number 248310 / 208760)
• SW80-65, 24V / 125A CO (continuous load) DC contactor, ZAPI part number B2SW11 / B2SW12
• SW80B-156, 48V / 125A CO (continuous load) DC contactor
• SW80B-2149, 80V / 125A CO (continuous load) DC contactor
• SW180B-108, 48V / 200A CO (continuous load) DC contactor
• SW180B-751, 24V / 200A CO (continuous load) DC contactor
• SW200-1, 48V / 400A DC contactor, ZAPI part number B4SW32
• SW200-230, 36V / 400A CO (continuous load) DC contactor
• SW200-262, 48V / 400A CO (continuous load) DC contactor, ZAPI part number B4SW31
• SW200-58 & SW200-802, 80V / 400A DC contactor
  • SW200-802 (Zapi Model: B8SW31, forklift lifting pump contactor)
  • SW200-583 (Zapi Model: B8SW32, forklift driving motor control system main contactor)
