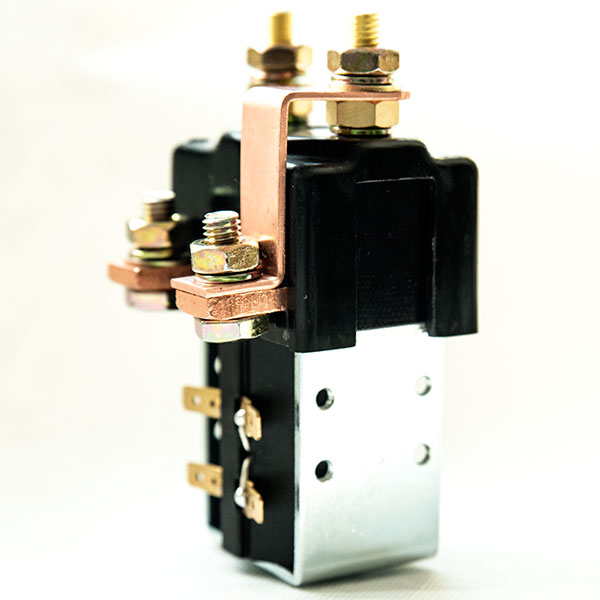

200A SPDT (Single Pole, Double Throw) DC Contactor

Model: QCC25C-200A/11L, compatible with Albright SW181, with long contact plate

Overview

The QCC25C-200A/11L DC contactors are SPDT (single pole single throw; one "normal open" and one "normal close", with long contact plate) DC power changeover switch, designed for direct current loads, particularly for motors on electric vehicles, like electric forklift, electric pallet stacker, tow tractor, etc. QCC25C-200A/11L has main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

QCC25C-200A/11L DC contactors can also be used in different DC power systems:

• DC power supply changeover
• DC motor driver selection
• Telecommunication system DC power source backup
• DC battery charging selector

Features:

• Rated current of main contact circuit (ampere): 200A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact: not above 60mV
• Easy installation with mounting bracket:

Specifications:

• Model: QCC25C-200A/11L (replacement of Albright SW181, with long contact plate)
• Contactor type: SPDT (single pole double throw; one normal open, one normal close)
• Voltage options (Volts): 12V, 24V, 36V, 48V or 72V
• Magnetic blowout:
  • 12V: no
  • 24V: no
  • 36V: no
  • 48V: yes (if don't want the blowout function, please contact us)
  • 72V: yes (if don't want the blowout function, please contact us)
• Mounting bracket:
  • Top hat shape
  • L shape
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature：-25~+40°C
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.84 kg

QCC25C-200A/11L can be used as the replacements of Albright SW181 DC contactors with long contact plate.

We supply also 200A SPDT contactor QCC25C-200A/11 (without long contact plate) and 100A SPDT contactor QCC25C-100A/11.

QCC25C-200A/11L SPDT DC Contactor Diagram (unit: mm):
