Overview

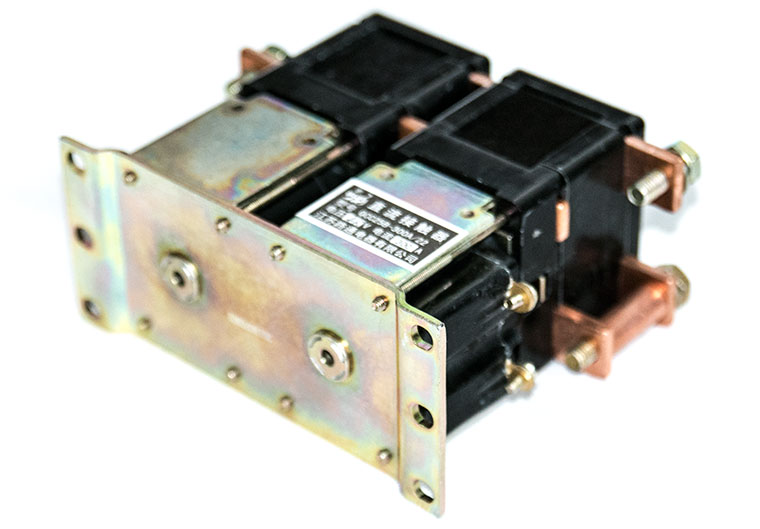

QCC25B series DPDT DC contactors are designed for heavy duty DC power circuit current direction changeover applications, widely applied in electric forklift, golf cart and marine electric motor driving system.

• Three current rates available:
  • Model QCC25B-150A/22: 150A
  • Model QCC25B-200A/22: 200A
  • Model QCC25B-300A/22: 300A
• Contactor type: double-pole double-throw (DPDT)
• Main contact rated voltage:
  • Inductive load: ≤ 72V
  • Resistive load: ≤ 90V
• Coil start current @ cold state: ≤ 5A
• Coil action voltage @ cold state:
  • Close: ≥ 60% rated voltage
  • Release: ≥ 5-30% rated voltage
• Action time less than 40 ms
• Dimensions (LxWxH ): 154 x 70 x 126 mm
• Net weight:
  • 150A / 200A: 3.10 kg
  • 300A: 3.37 kg

Dimensions (unit: mm):

The QCC25B series DPDT contactors can replace directly the GE IC4482CTTA104, IC4482CTTA154 and IC4482CTTA304 contactors, shown as listed below:

• QCC25B-150A/22: replacing GE IC4482CTTA104FR / IC4482CTTA154FR, for example:
  • GE IC4482CTTA154FR140XN 40V 150A DC contactor
  • GE IC4482CTTA154FR124XN 24V 150A DC contactor
  • GE IC4482CTTA154FR142XN 48V 150A DC contactor
  • GE IC4482CTTA154FR248XN 48V 150A DC contactor (continuous load)
• QCC25B-200A/22: replacing GE IC4482CTTA154FR, for example:
  • GE IC4482CTTA154FR140XN 40V 150A DC contactor
  • GE IC4482CTTA154FR124XN 24V 150A DC contactor
  • GE IC4482CTTA154FR142XN 48V 150A DC contactor
  • GE IC4482CTTA154FR248XN 48V 150A DC contactor (continuous load)
• QCC25B-300A/22: replacing GE IC4482CTTA304FR, for example:
  • GE IC4482CTTA304FR124XN 24V 225A DC contactor
  • GE IC4482CTTA304FR124XN 24V 225A DC contactor
  • GE IC4482CTTA304FR142XN 48V 225A DC contactor
  • GE IC4482CTTA304FR248XN 48V 225A DC contactor (continuous load)
  • GE IC4482CTTA304FR176XN 72V 225A DC contactor
