Wiring Diagram

Current Curve

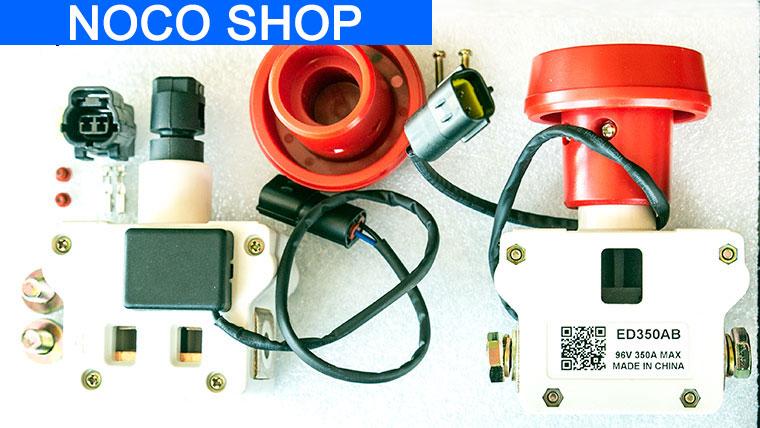

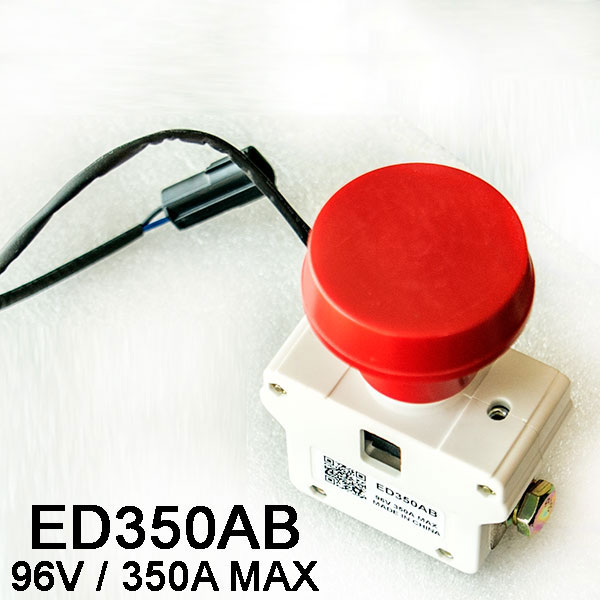

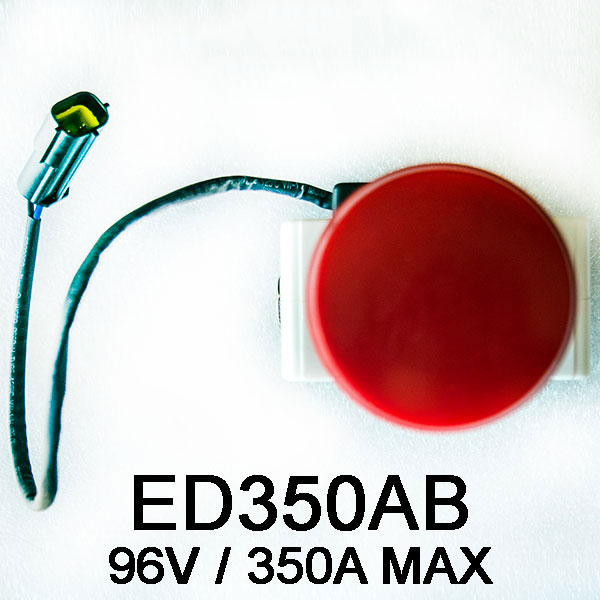

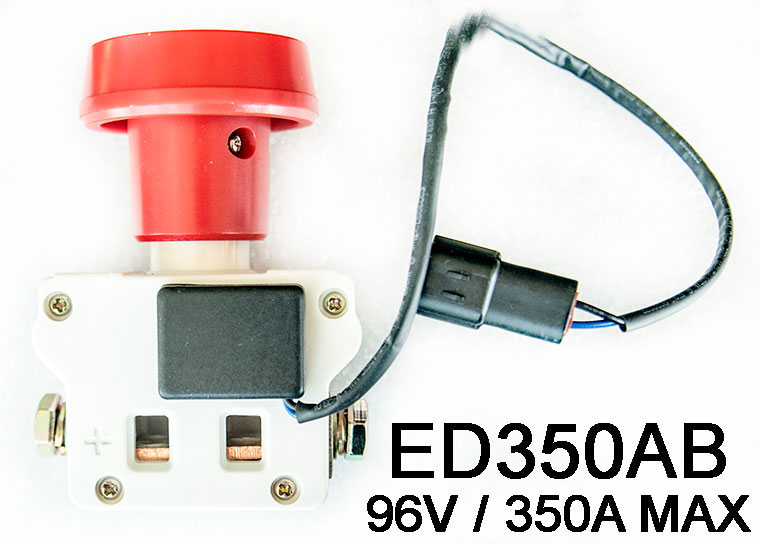

Emergency DC Power Disconnector

Model: ED350AB, electric pallet stacker / truck part

Description:

ED350AB are manually operated devices with an over-centre spring mechanism which provides a snap action for both opening and closing of the main contacts. ED350AB is easy to install, and is secured with supplied M5 posidrive mounting screws.

Specifications:

• Model: ED350AB, compatible with REMA RN300 emergency stop button (part number: P/N 80229-36)
• Working voltage: ≤ 96VDC
• Current limit: 350A Max.
• With magnetic blowouts

We supply other emergency power disconnectors:

• Albright ED125-34
• Albright ED250B-1
• ED100-1, pallet truck emergency push button
• ED125X-16 (HANGCHA forklift & pallet truck emergency push button) / ED125X-17 (widely used by HELI, XILIN, TAILIFT, BAOLI, etc)
• ZDK31-125, alternative of Albright ED125-34
• ZDK31-250, alternative of Albright ED250B-1
• ZDK31-400, alternative of Albright ED300B

Dimenions (unit: mm):

Emergency DC Power Disconnector

Model: ED350AB, electric pallet stacker / truck part

Description:

ED350AB are manually operated devices with an over-centre spring mechanism which provides a snap action for both opening and closing of the main contacts. ED350AB is easy to install, and is secured with supplied M5 posidrive mounting screws.

Specifications:

• Model: ED350AB, compatible with REMA RN300 emergency stop button (part number: P/N 80229-36)
• Working voltage: ≤ 96VDC
• Current limit: 350A Max.
• With magnetic blowouts

We supply other emergency power disconnectors:

• Albright ED125-34
• Albright ED250B-1
• ED100-1, pallet truck emergency push button
• ED125X-16 (HANGCHA forklift & pallet truck emergency push button) / ED125X-17 (widely used by HELI, XILIN, TAILIFT, BAOLI, etc)
• ZDK31-125, alternative of Albright ED125-34
• ZDK31-250, alternative of Albright ED250B-1
• ZDK31-400, alternative of Albright ED300B

Dimenions (unit: mm):
